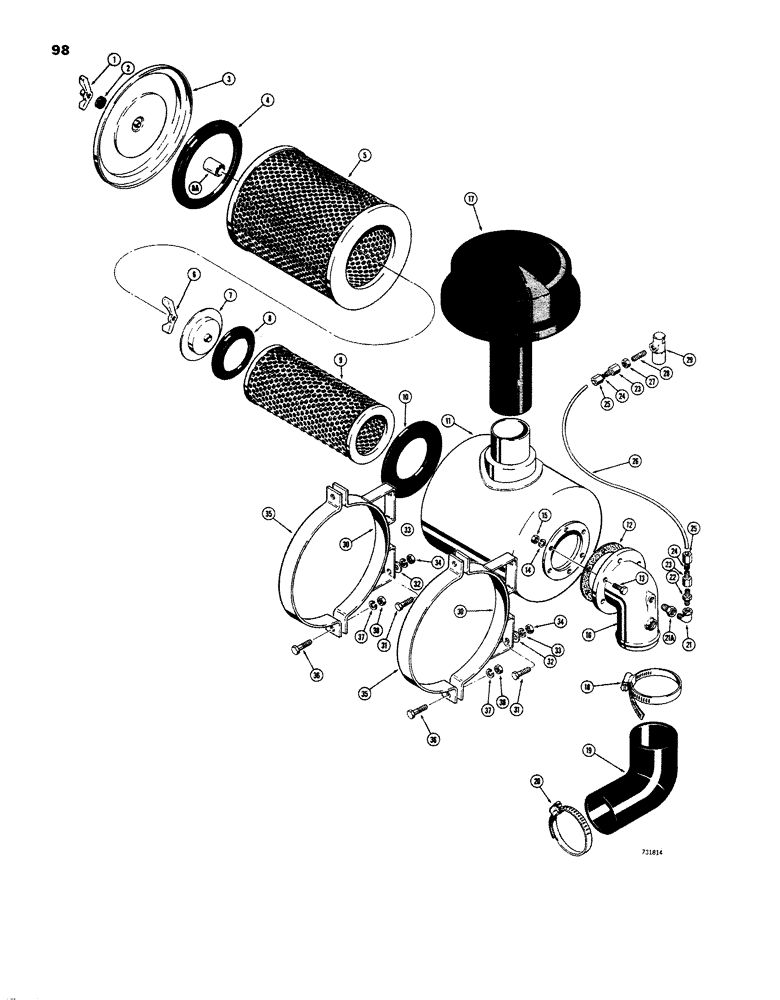

Запчасти Case W26B (098) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

L17690

AIR CLEANER ASSEMBLY - engine, Includes: Ref. 1 - 12

1шт.

1

A17745

NUT

NUT - winged, special (Outer)

1шт.

2

A15902

WASHER - special

1шт.

3

L32946

SCREW

COVER - access, filte (Outer)

1шт.

4

L32945

SEAL - air, outer filter element

1шт.

5

L32943

AIR CLEANER

FILTER ELEMENT - air, outer

1шт.

6

L35473

NUT

- winged, special (Inner)

1шт.

7

A17747

PLATE ASSY.

PLATE - sealing, filter (Inner)

1шт.

8

L32944

GASKET

SEAL - air, inner filter

1шт.

8a

A17748

GASKET

- stud, center

1шт.

9

L32942

AIR CLEANER

FILTER ELEMENT - air, inner

1шт.

10

L32941

GASKET

SEAL - air, filters to air cleaner body

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

12

L32940

GASKET

- air, Serial Range: cleaner-elbow

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

14

92-5

LOCK WASHER,5/16"

6шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

6шт.

16

L40198

ELBOW UNION

ELBOW - air filter outlet

1шт.

17

L13262

CAP

- air filter

1шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, air cleaner to hose elbow

1шт.

19

L40197

HOSE ASSY.

ELBOW - hose, air, Serial Range: cleaner-engine

1шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, hose elbow to engine

1шт.

21

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

brass - to air cleaner indicator 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

21a

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing (1/4" NPT to 1/8" NPT)

1шт.

22

D36264

FITTING

CONNECTOR - straight (1/8" NPT) filtered

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSY. - tube, air cleaner indicator, Includes: Ref. 23 - 25

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

24

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

25

222-5058

NUT,3/8"-24

NUT - connector

1шт.

26

D35275

TUBE

- air cleaner indicator

1шт.

27

L13268

LOCK NUT

- special, lock (Indicator mounting)

1шт.

28

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - pipe, at air cleaner indicator

1шт.

29

A17652

ELECTRICAL GAUGE

INDICATOR - air cleaner filter restriction

1шт.

30

L18940

BRACKET - mounting, air cleaner

2шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to support Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

32

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

35

L14430

BAND

- air cleaner mounting

2шт.

36

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Band to bracket) Hex, 3/8"-16 x 2", G5

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.
