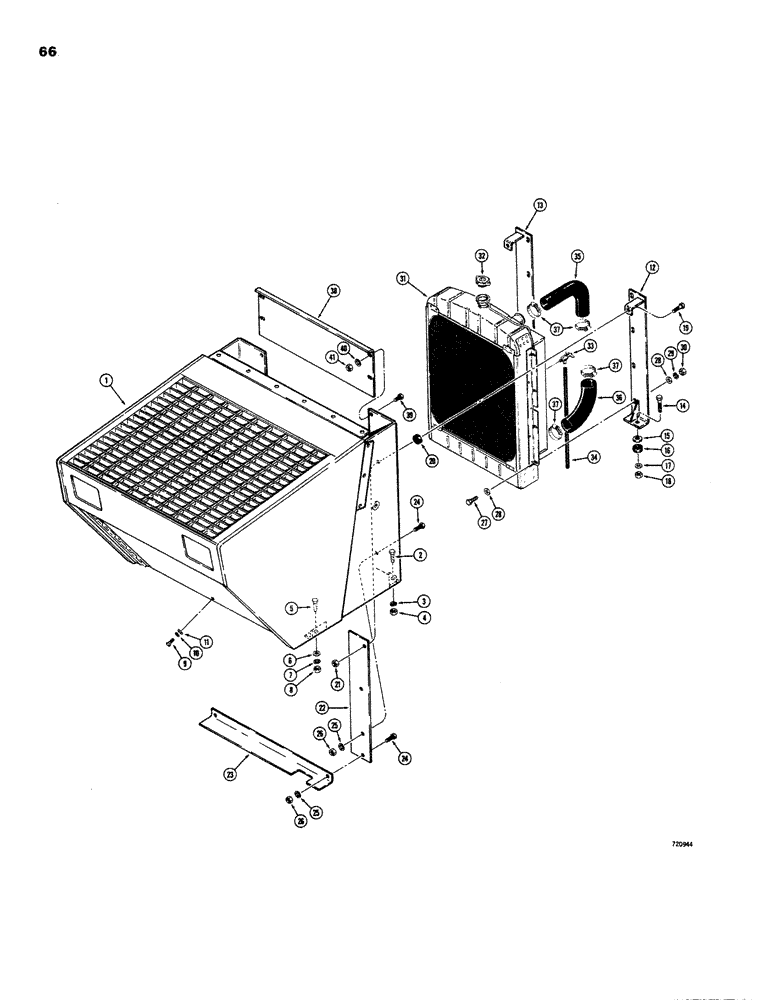

Запчасти Case W26B (066) - RADIATOR AND RELATED PARTS (02) - ENGINE

1

L50575

GUARD

- radiator and grille

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Front guard mounting)

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Rear guard mounting) Hex, 5/8"-11 x 2", G5

2шт.

6

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1010

NUT,5/8"-11, G5

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Access door mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

95-6

WASHER,3/8"

- plain () 3/8"

3шт.

12

L48368

BRACKET - radiator mounting (R.H.)

1шт.

13

L48369

BRACKET - radiator mounting (L.H.)

1шт.

14

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4" (Bracket to rear frame)

2шт.

15

51200247

WASHER

- special, radiator mounting, Transmission Case Cover

2шт.

16

70198

WASHER

SPACER - rubber

2шт.

17

195-33

WASHER,1/2"

- plain

2шт.

18

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock (1/2" - 20 NF)

2шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Mounting bracket to shroud) Hex, 3/8"-16 x 1 3/4", G5

2шт.

20

70198

WASHER

SPACER - rubber

2шт.

21

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock (3/8" - 16 NC)

2шт.

22

L48372

BAFFLE - side, radiator

2шт.

23

L48371

BAFFLE - bottom, radiator

1шт.

24

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Side baffles to shroud and bottom baffle Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

25

92-6

LOCK WASHER,3/8"

6шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

28

95-6

WASHER,3/8"

- standard wrot () 3/8"

16шт.

29

92-6

LOCK WASHER,3/8"

8шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

31

L45982

RADIATOR

- engine cooling

1шт.

There is a cooler available for Ref. 31. Order cooler D83221.

1шт.

32

D25826

CAP

- radiator

1шт.

33

A23655

VALVE

- radiator drain

1шт.

34

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

35

L40222

RADIATOR HOSE,2.50" ID x 10.93", SAE 20R4 Class SC

- Inlet 2.50" ID x 10.93", SAE 20R4 Class SC

1шт.

36

L40228

RADIATOR HOSE,2.62" ID x 7.50", SAE 20R4 Class SC

- Outlet 2.62" ID x 7.50", SAE 20R4 Class SC

1шт.

37

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

38

L48373

PLATE - cross, radiator upper

1шт.

39

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

41

25-104

NUT,1/4"-20, G5

4шт.
