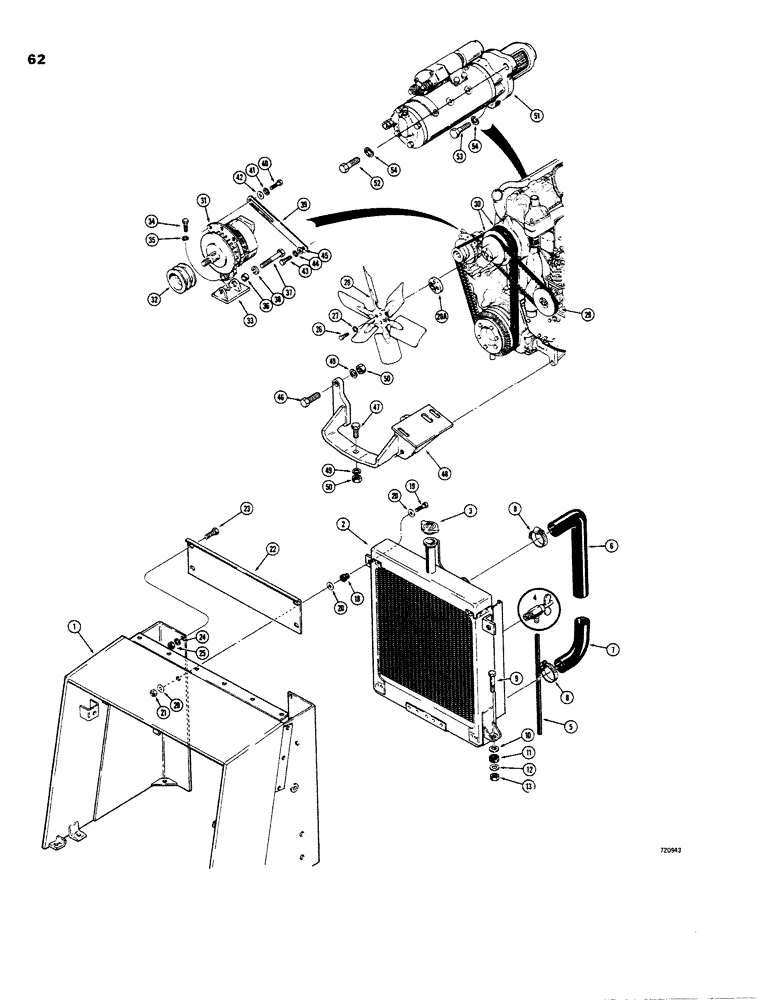

Запчасти Case W26B (062) - ENGINE, RADIATOR AND RELATED PARTS, TRACTOR SN 9107521 AND AFTER (02) - ENGINE

1

REF

INSTRUCTION

GUARD - radiator and grille (See figure 290 for related parts)

1шт.

2

L48857

RADIATOR - engine cooling (W26B only) See figure 66 for W26LF radiator and related parts

1шт.

3

D25826

CAP

- radiator

1шт.

4

A23655

VALVE

- radiator drain (W26B only)

1шт.

5

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

6

L40222

RADIATOR HOSE,2.50" ID x 10.93", SAE 20R4 Class SC

- Inlet 2.50" ID x 10.93", SAE 20R4 Class SC

1шт.

7

L40228

RADIATOR HOSE,2.62" ID x 7.50", SAE 20R4 Class SC

- Outlet 2.62" ID x 7.50", SAE 20R4 Class SC

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

9

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4" (Radiator lower mounting)

2шт.

10

51200247

WASHER

- radiator mounting (Upper), Transmission Case

2шт.

11

70198

WASHER

SPACER - rubber

2шт.

12

195-33

WASHER,1/2"

- plain () Lower 1/2"

2шт.

13

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock (1/2" - 20 NF)

2шт.

18

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT - radiator

2шт.

19

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

(W26B only) Hex, 3/8"-16 x 1 5/8", G5

2шт.

20

195-28

WASHER,3/8"

- plain (7/16" I.D. x 1- O.D.) 3/8"

6шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) W26B only

2шт.

22

L48867

PLATE - cross, radiator upper (W26B only)

1шт.

23

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25

25-104

NUT,1/4"-20, G5

4шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fan to fan pulley, W26B Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC fx 1-1/2" (W26LF compactor)

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

A15520

FAN

- radiator cooling, pusher (W26B)

1шт.

28

L48343

FAN

- radiator cooling suction (W26LF compactor)

1шт.

28a

L49007

SPACER

- fan. W26LF compactor

1шт.

29

L45826

V-BELT,0.50" W x 51.50" L

Compressor drive 0.50" W x 51.50" L

1шт.

30

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt, Alternator and fan drive (Matched set of 2) 0.69" W x 65.75" L

1шт.

31

A41360

ALTERNATOR

- electrical (Parts list figure 68)

1шт.

32

A41361

PULLEY

- alternator

1шт.

33

A38492

BRACKET

- alternator mounting, Replaces L18700

1шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

L18857

SPACER

- alternator bracket

1шт.

37

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

A59098

STRAP

- alternator adjusting

1шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

41

92-5

LOCK WASHER,5/16"

1шт.

42

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

43

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

46

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Engine bracket to engine) Hex, 3/4"-10 x 3", G5

4шт.

47

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(Engine bracket to frame) Hex, 3/4"-10 x 2", G5

1шт.

48

L45624

BRACKET

- engine mounting

1шт.

49

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

50

25-1012

NUT,3/4"-10, G5

5шт.

51

D42964

X

STARTER - engine, 24 volt (Parts list figures 74 and 76)

1шт.

52

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Upper mounting bolt) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

53

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2" (Lower mounting bolt)

1шт.

54

92-8

LOCK WASHER,1/2"

3шт.
