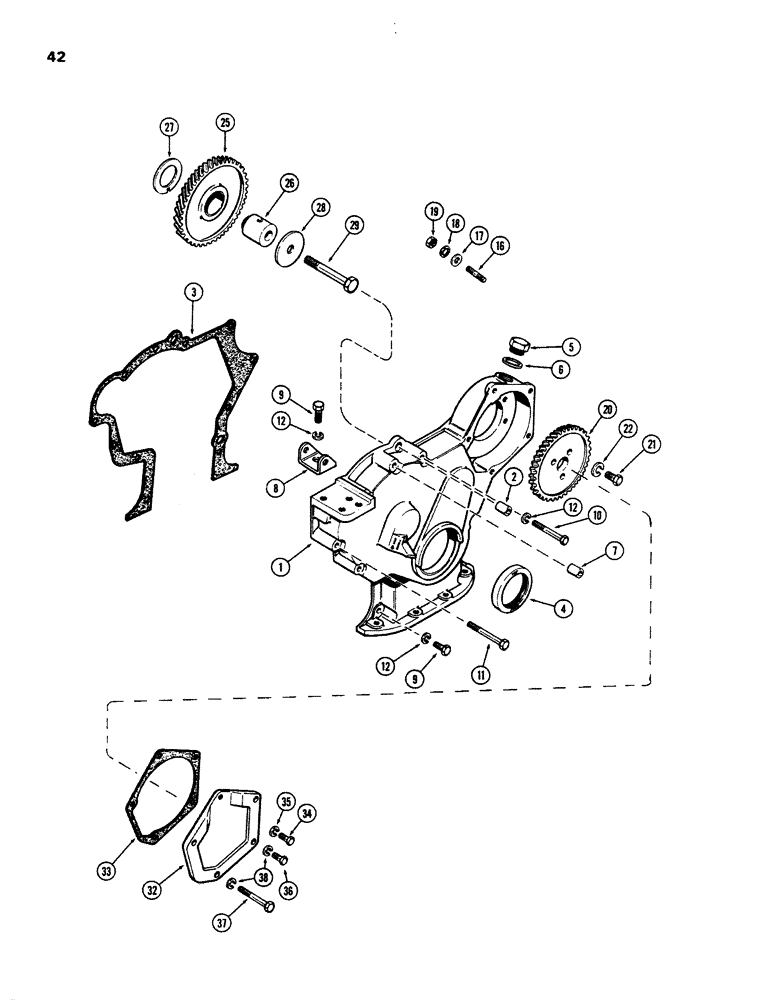

Запчасти Case W26B (042) - TIMING GEAR COVER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A58609

COVER

ASSY. - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating

2шт.

3

A58612

GASKET

-, Serial Range: cover-block

1шт.

4

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 7/16")

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

7

A19774

BUSHING

SPACER - alternator pry point

1шт.

8

A38492

BRACKET

- alternator mounting

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover & bracket Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

2шт.

11

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.)

3шт.

12

92-6

LOCK WASHER,3/8"

1шт.

16

A58689

STUD

- pump mounting (3/8" N.C. x 1-7/8"), injection drive

4шт.

17

A57470

WASHER

- stud (13/32 x 11/16" x 16 ga.), injection pump drive

4шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Injection pump drive Int Tooth, 3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, injection pump drive

4шт.

20

A58693

GEAR

- drive, injection pump

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub, injection pump drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

22

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

3шт.

25

A62542

GEAR

ASSY. - idler, pump drive (Replaces A58686), injection

1шт.

26

A58690

SHAFT

- idler gear, injection pump drive

1шт.

27

A58691

WASHER

- thrust, idler shaft, injection pump drive

1шт.

28

A58692

PLATE

- thrust, idler shaft, injection pump drive

1шт.

29

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - idler shaft (1/2 x 4-1/2" N.C. hex.), injection pump drive

1шт.

32

A61053

COVER

- pump drive gear, injection pump drive

1шт.

33

A58615

GASKET

- cover, injection pump drive

1шт.

34

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover, injection pump drive Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

35

92-5

LOCK WASHER,5/16"

injection pump drive 5/16"

1шт.

36

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cover, injection pump drive Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

37

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover (3/8 x 3" N.C. hex.), injection pump drive

2шт.

38

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

4шт.
