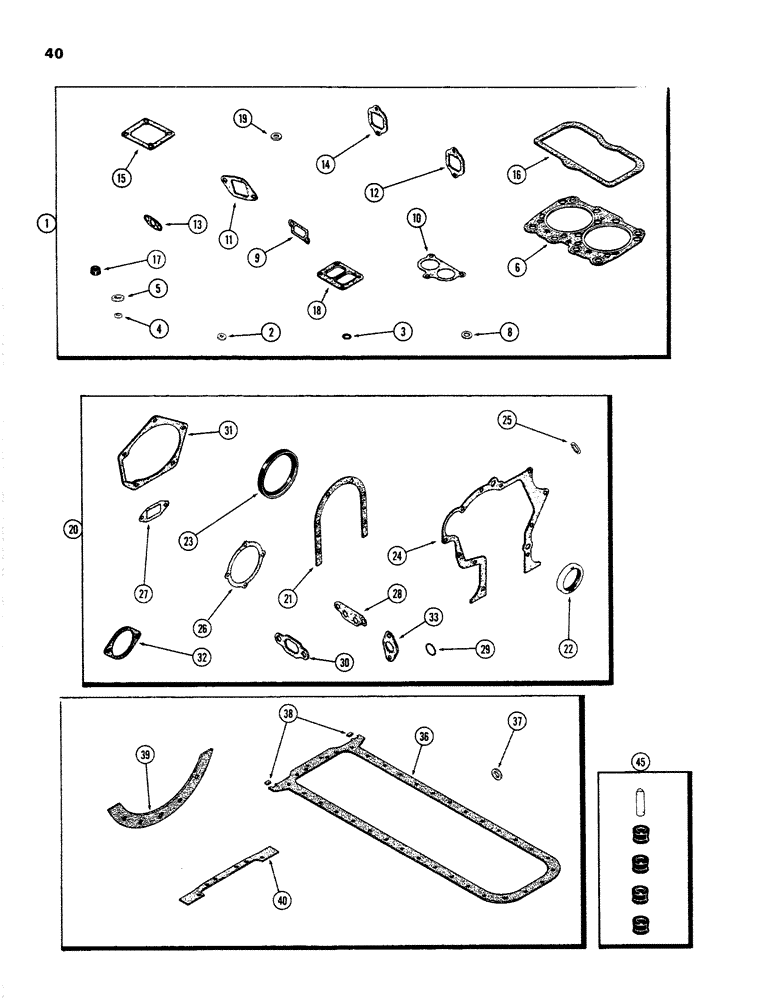

Запчасти Case W26B (040) - ENGINE GASKET KITS, (504BDT) DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A44087

GASKET

VALVE GRIND GASKET KIT - (Replaces A41769 & A43192), Includes: Ref. 2 - 19

1шт.

For complete engine overhaul order 1 - A44087, 1 - A42096 & 1 - A46005

1шт.

2

A23684

GASKET

GASKET - valve cover studs (rubber)

6шт.

3

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker shaft (3/16 x 5/16 x 1/16")

3шт.

4

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, inj. nozzle tip

6шт.

5

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, inj. nozzle tip

6шт.

6

A138149

GASKET

- cylinder head, w/fire ring (Replaces A59121, A58622 & A64113)

3шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube (11/16 x 1-1/4 x 1/4")

3шт.

9

A58637

MANIFOLD GASKET

- water, Serial Range: manifold-head

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

6шт.

13

A58892

GASKET,1.59mm Thk

- turbo drain tube

1шт.

14

A58895

GASKET

- exhaust manifold (metal faced)

6шт.

15

A58910

GASKET

- air intake tube

1шт.

16

A65734

CYLINDER HEAD GASKET

- cyl. head cover (Replaced A58928)

3шт.

17

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (See Ref. 45)

12шт.

18

A58899

GASKET,0.45mm Thk

- turbo-charger

2шт.

19

A34133

GASKET

- breather tube screw (1/4 x 1/2 x 1/16" fiber)

3шт.

20

A42096

GASKET

CYLINDER BLOCK GASKET KIT - Includes: Ref. 21 - 33

1шт.

For complete engine overhaul order 1 - A44087, 1 - A42096 & 1 - A46005

1шт.

21

A32830

GASKET

- retainer, rear oil seal, cylinder block kit

1шт.

22

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2"), cylinder block kit

1шт.

23

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2"), cylinder block kit

1шт.

24

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

26

A58646

GASKET

- water pump to body, cylinder block kit

1шт.

27

A58649

GASKET

- water pump body to block, cylinder kit

1шт.

28

A58756

OIL PAN GASKET SET

- oil filter base (not used this unit), cylinder block kit

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil pump & filter base (15/16 x 1-1/8 x 3/32"), cylinder block kit

3шт.

30

A58670

GASKET

- heat exchanger head to block, cylinder kit

1шт.

31

A58615

GASKET

- cover, inj. pump drive, cylinder block kit

1шт.

32

A58617

GASKET

- auxiliary pump opening, cylinder block kit

1шт.

33

A58680

OIL PAN GASKET SET

- oil cooler tube, cylinder block kit

1шт.

35

A46005

GASKET

OIL PAN GASKET KIT - (Rpl. A41761), Includes: Ref. 36 - 40

1шт.

For complete engine overhaul order 1 - A44087, 1 - A42096 & 1 - A46005

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 35), kit

1шт.

37

A27968

RING

- drain plug, oil pan kit

1шт.

38

A75308

OIL PAN GASKET SET

- oil pan corners, pan kit

2шт.

39

A57966

GASKET

- trans. housing, lower, oil pan kit

1шт.

40

A76249

GASKET

- flywheel housing, oil pan kit

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve (includes 4 seals & installation sleeve), oil pan

1шт.
