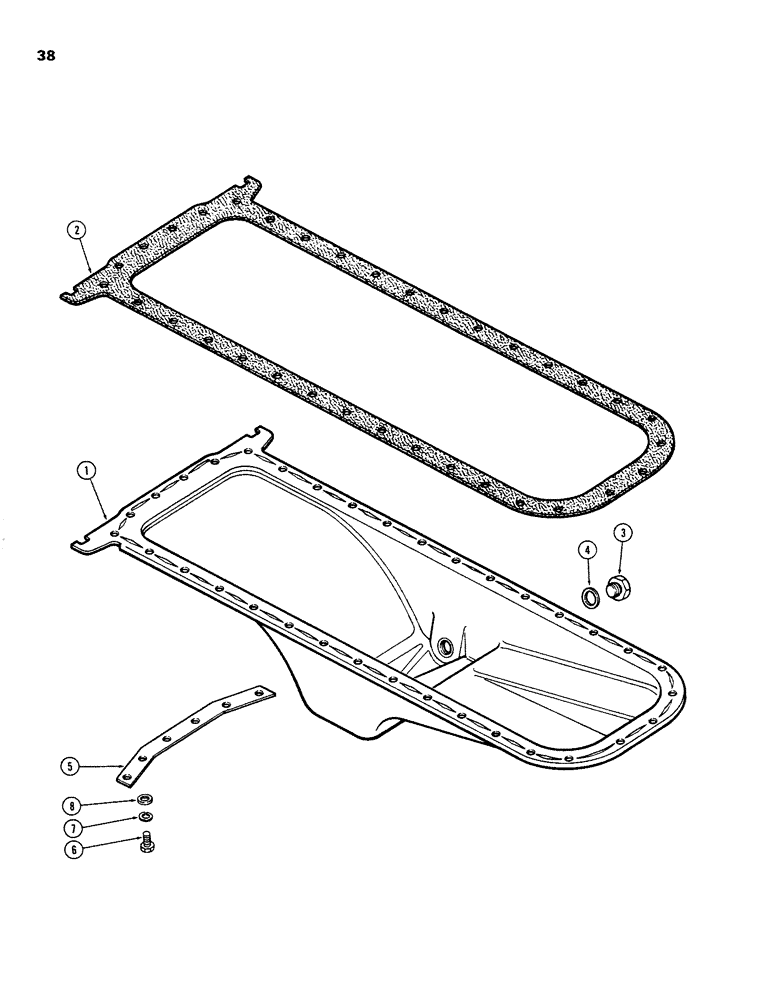

Запчасти Case W26B (038) - OIL PAN, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A62410

PAN

- oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A46005 from Figure 40)

1шт.

3

A34626

PLUG - drain, oil pan

1шт.

4

A27968

RING

- drain plug (Replaces A58933)

1шт.

5

A58932

STRAP

- reinforcing, oil pan rear

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

32шт.

7

92-6

LOCK WASHER,3/8"

32шт.

8

195-25

WASHER,3/8"

- (3/8 x 13/16 x 1/16")

32шт.
