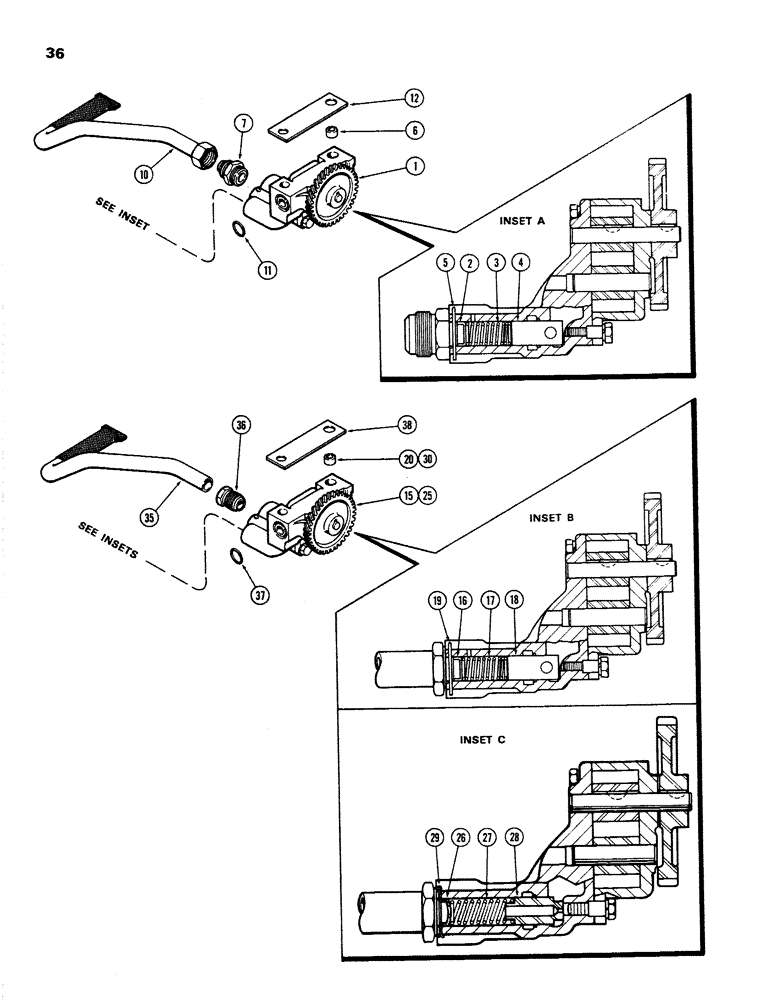

Запчасти Case W26B (036) - OIL PUMP, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A144773

PUMP

ASSY. - oil (See Inset A), Includes: Ref. 2 - 7

1шт.

2

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

3

A59111

SPRING

- relief valve (2-1/16" free length)

1шт.

4

A65083

VALVE

- relief

1шт.

5

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

6

A58915

SLEEVE

- pump locating

1шт.

7

A142004

CONNECTOR, ELEC

CONNECTOR - oil suction tube

1шт.

NOT PART OF PUMP ASSY,ORDER SEPARATELY

1шт.

10

A139711

TUBE

- oil suction (Incl. screen)

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil port (15/16 x 1-1/8 x 3/32")

1шт.

12

A58859

SHIM,.005" Thk

Pump to front brg. cap .005" Thk

1шт.

15

A65080

PUMP

ASSY. - oil (Replaces A61809) (See inset B) (Order 1-A144773 Pump & 1-A139711 tube), Includes: Ref. 16 - 20

1шт.

16

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

17

A59111

SPRING

- releif valve (2-1/16" free length)

1шт.

18

A65083

VALVE

- relief

1шт.

19

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

20

A58915

SLEEVE

- pump locating

1шт.

25

A61809

PUMP

ASSY. - oil (See Inset B) (Order 1-A144773 pump & 1-A139711 tube), Includes: Ref. 26 - 30

1шт.

26

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

27

A59111

SPRING

- relief valve (2-1/16" free length)

1шт.

28

A34992

PISTON

VALVE - relief

1шт.

29

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

30

A58915

SLEEVE

- locating, pump to brg. cap

1шт.

35

A62805

TUBE

- oil suction (Used w/A65080 & A61809 pump) (Order 1-A139711 tube & 1-A142004 connector)

1шт.

36

222-510

TUBE NUT,1 1/4"-18

NUT - (Used w/A62033 tube)

1шт.

37

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil port (15/16 x 1-1/8 x 3/32")

1шт.

38

A58859

SHIM,.005" Thk

Pump to brg. cap .005" Thk

1шт.
