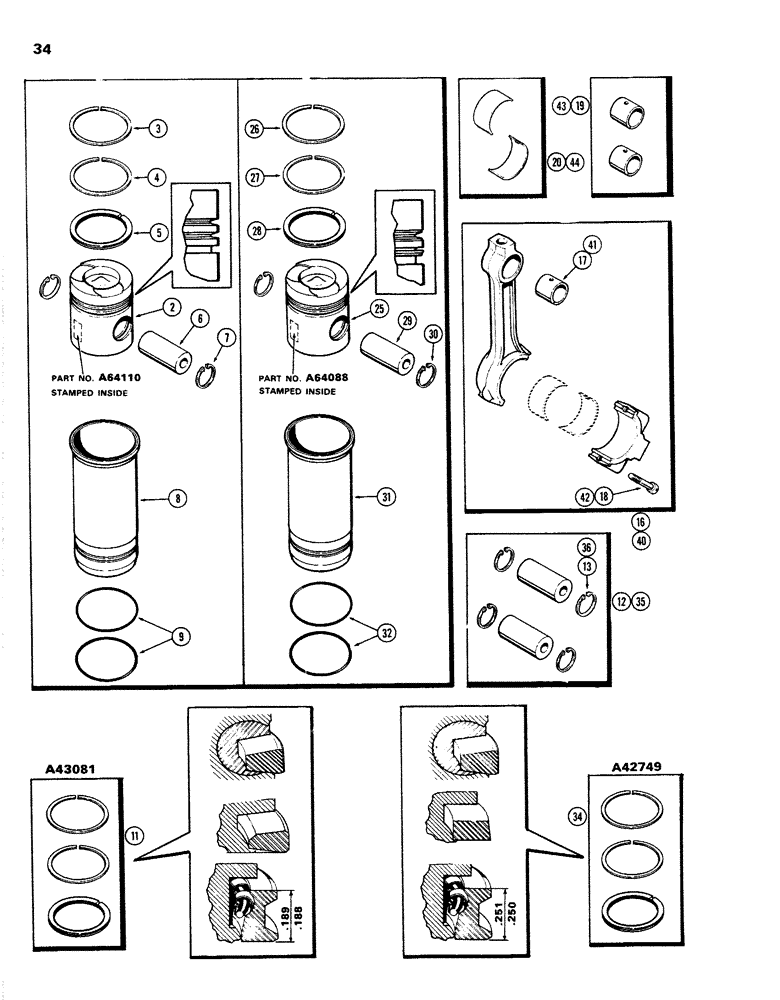

Запчасти Case W26B (034) - PISTON ASSEMBLY AND CONNECTING RODS (504BDT) DIESEL ENGINE 1ST USED ENG. SER. NO. 2501934 (02) - ENGINE

A46024

PISTON

PISTON ASSY. - (Set of 2) (Replaces A43080), Includes: Ref. 2 - 9

3шт.

2

A64110

PISTON

PISTON - (A64110 stamped on inside piston skirt )

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin, replaced A58585 1.812", Int, #181

4шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - piston (cylinder liner) (Rpl. A58570)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve seal (4-1/2 x 4-11/16 x 3/32")

4шт.

A43082

SET OF RINGS

RING KIT - piston re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A43081

RING

RING KIT - piston re-ring (Set of 1)

6шт.

12

A44574

PIN

PIN KIT - w/retaining rings (Set of 2) (Replaced A41750), Includes: Ref. 13

3шт.

13

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , replaced A58585 1.812", Int, #181

4шт.

16

A65032

ROD

ROD ASSY. - connecting (Replaced A58578), Includes: Ref. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured, Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 19)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - conn. rod cap (Replaced A62184)

2шт.

19

A41756

BUSHING

BUSHING KIT - piston pin (Set of 2)

3шт.

20

A41758

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (Std.)

6шт.

20

A41899

BEARING LINER

INSERT ASSY. - conn. rod. brg. (Set of 2) (-.002")

6шт.

20

A41900

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.010")

6шт.

20

A41901

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.020")

6шт.

20

A41902

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.030")

6шт.

A43078

SLEEVE

PISTON ASSY. - (Set of 2) (Rpl. A42751 & A41749), used prior to engine ser. no. 2501934, Includes: Ref. 25 - 32, Start Serial: 2501934

3шт.

25

A64088

PLUNGER

PISTON - (A64088 stamped on inside piston skirt) (Replaces A61848 & A59767 pistons), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

26

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 34), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

27

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 34), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

28

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order ref. 34), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

29

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 35), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

30

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin, replaced A58585, used prior to engine ser. no. 2501934 1.812", Int, #181, Start Serial: 2501934

4шт.

31

A58570

SLEEVE

SLEEVE - piston (cylinder liner), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

32

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve seal (4-1/2 x 4-11/16 x 3/32"), used prior to engine ser. no. 2501934, Start Serial: 2501934

4шт.

A42748

RING

RING KIT - (piston re-ring) (Set of 6), used prior to engine ser. no. 2501934, Includes: Ref. 34, Start Serial: 2501934

1шт.

34

A42749

RING

RING KIT - (piston re-ring) (Set of 1), used prior to engine ser. no. 2501934, Start Serial: 2501934

6шт.

35

A44574

PIN

PIN KIT - w/retaining rings (Set of 2) (Replaced A41750), used prior to engine ser. no. 2501934, Includes: Ref. 36, Start Serial: 2501934

3шт.

36

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , replaced A58585, used prior to engine ser. no. 2501934 1.812", Int, #181, Start Serial: 2501934

4шт.

40

A65032

ROD

ROD ASSY. - connecting (Replaced A58578), used prior to engine ser. no. 2501934, Includes: Ref. 41 and 42, Start Serial: 2501934

6шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 43), used prior to engine ser. no. 2501934, Start Serial: 2501934

1шт.

42

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap (Replaced A62184), used prior to engine ser. no. 2501934, Start Serial: 2501934

2шт.

43

A41756

BUSHING

BUSHING KIT - piston pin (Set of 2), used prior to engine ser. no. 2501934, Start Serial: 2501934

3шт.

44

A41758

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (Std.), used prior to engine ser. no. 2501934, Start Serial: 2501934

6шт.

44

A41899

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.002"), used prior to engine ser. no. 2501934, Start Serial: 2501934

6шт.

44

A41900

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.010"), used prior to engine ser. no. 2501934, Start Serial: 2501934

6шт.

44

A41901

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.020"), used prior to engine ser. no. 2501934, Start Serial: 2501934

6шт.

44

A41902

BEARING LINER

INSERT ASSY. - conn. rod brg. (Set of 2) (-.030"), used prior to engine ser. no. 2501934, Start Serial: 2501934

6шт.
