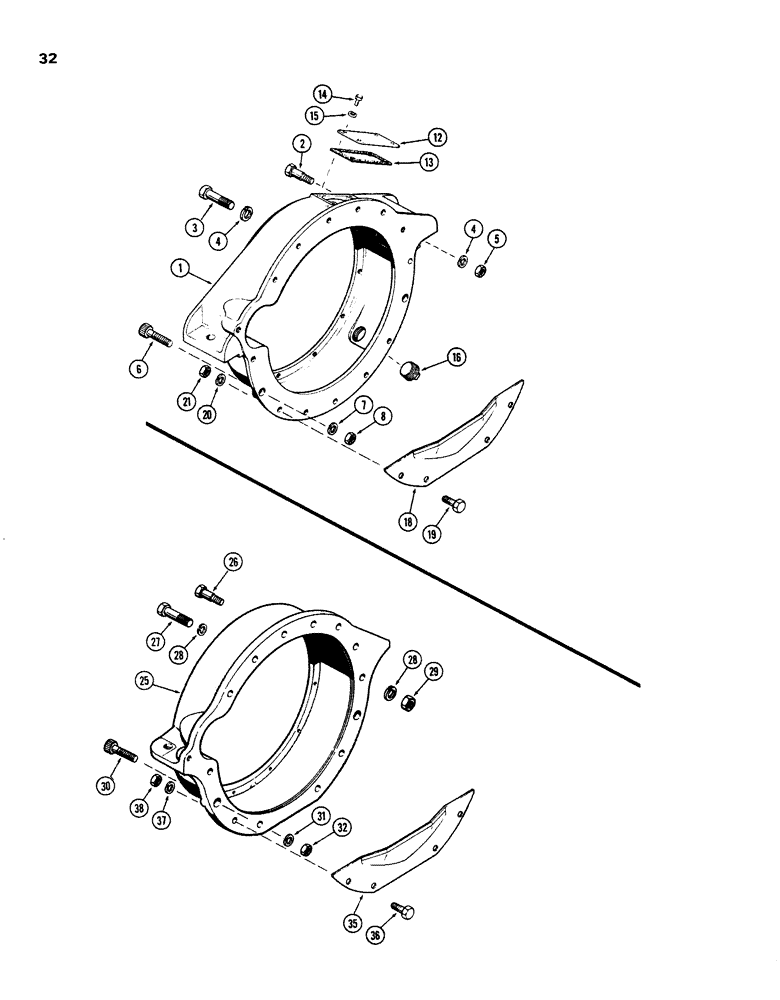

Запчасти Case W26B (032) - FLYWHEEL HOUSING (504BDT) DIESEL ENGINE WITH FLEX PLATE DRIVE 1ST USED TRAC. SER. NO. 9116327 (02) - ENGINE

1

A21040

HOUSING

- flywheel

1шт.

2

A61041

STEP BOLT

BOLT - dowel (1/2" N.C. x 2-7/16")

1шт.

2

A61040

STEP BOLT

BOLT - dowel, (1/2" N.C. x 3")

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex.)

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - (3/4 x 3" N.C., 12 pt. sckt. hd.)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

A22584

COVER

PLATE - hand hole cover

1шт.

13

A22585

GASKET

- cover plate

1шт.

14

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Cover to hsg Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing (1-1/4" P.T., sq. hd.)

1шт.

18

A58931

GUARD

SHIELD - dust, flywheel

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

25

A58684

HOUSING - flywheel, with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

1шт.

26

A61041

STEP BOLT

BOLT - dowel (1/2" N.C. x 2-7/16"), with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

1шт.

26

A61040

STEP BOLT

BOLT - dowel (1/2" N.C. x 3"), with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

1шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Ring plate drive, used prior to tractor S/N 9116327 Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Start Serial: 9116327

3шт.

27

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex.), with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

3шт.

28

92-8

LOCK WASHER,1/2"

with ring plate drive, used prior to tractor ser. no. 9116327 1/2", Start Serial: 9116327

8шт.

29

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

5шт.

30

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- (3/4 x 3" N.C. 12 pt. sckt. hd.), with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

2шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , With ring plate drive, used prior to tractor S/N 9116327 3/4", Start Serial: 9116327

2шт.

32

25-1012

NUT,3/4"-10, G5

w/ Ring plate drive, used prior to tractor S/N 9116327 3/4"-10, G5, Start Serial: 9116327

2шт.

35

A58931

GUARD

SHIELD - dust, flywheel, with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

1шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Ring plate drive, used prior to tractor S/N 9116327 Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Start Serial: 9116327

4шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , With ring plate drive, Used prior to tractor S/N 9116327 1/2", Start Serial: 9116327

4шт.

38

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, with ring plate drive, used prior to tractor ser. no. 9116327, Start Serial: 9116327

4шт.
