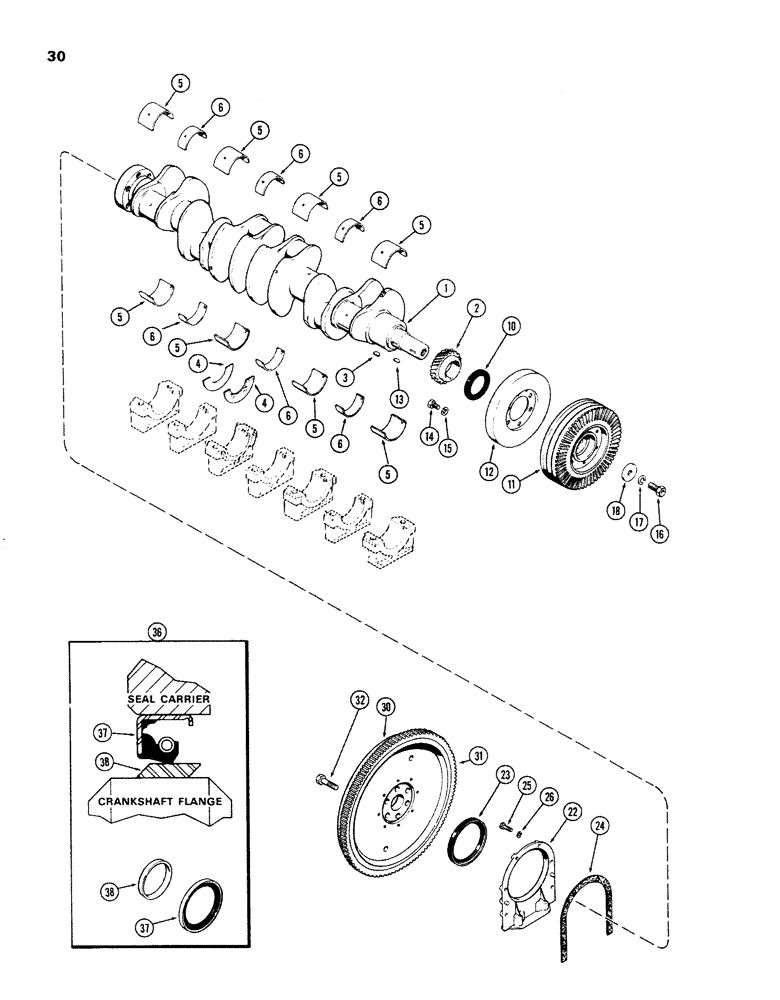

Запчасти Case W26B (030) - CRANKSHAFT AND FLYWHEEL, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A66728

CRANKSHAFT

ASSY. - (Replaces A58572 & A65097), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- timing, crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust (Standard) (0.156")

2шт.

4

A42447

WASHER

- thrust (Oversize) (0.162")

2шт.

5

A43090

BEARING LINER

LINER SET - wide, main bearing (Standard) (Replaces A41752) (Set of 2)

4шт.

5

A43124

LINING

LINER SET - wide, main bearing (-.002) (Replaces A41907) (Set of 2)

4шт.

5

A43125

CRANKSHAFT BEARING

LINER SET - wide, main bearing (-.010") (Replaces A41908) (Set of 2)

4шт.

5

A43126

LINING

LINER SET - wide, main bearing (-.020") (Replaces A41909) (Set of 2)

4шт.

5

A43127

LINING

LINER SET - wide, main bearing (-.030") (Replaces A41910) (Set of 2)

4шт.

6

A43089

BEARING LINER

LINER SET - narrow, main bearing (Standard) (Replaces A41759) (Set of 2)

3шт.

6

A43120

LINING

LINER SET - narrow, main bearing (-.002") (Replaces A41903) (Set of 2)

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER SET - narrow, main bearing (-.010") (Replaces A41904) (Set of 2)

3шт.

6

A43122

LINING

LINER SET - narrow, main bearing (-.020") (Replaces A41905) (Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER SET - narrow, main bearing (-.030") (Replaces A41906) (Set of 2)

3шт.

10

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

11

A58828

PULLEY

- belt drive

1шт.

12

A58900

DAMPER

- pulley

1шт.

13

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Damper to pulley Hex, 3/8"-16 x 7/8", G5, Full Thd

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. spec.)

1шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

A27903

WASHER

- retaining (21/32 x 2-1/8 x 1/4")

1шт.

22

A57457

RETAINER

- rear oil seal

1шт.

23

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (See ref. 36)

1шт.

24

A32830

GASKET

- retainer, rear oil seal

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

30

A58683

FLYWHEEL

ASSY, Includes: Ref. 31

1шт.

31

A27920

GEAR

- ring, starter (137T)

1шт.

32

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- flywheel (5/8 x 1-1/2" N.F. spec.)

6шт.

36

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

38

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), seal kit

1шт.
