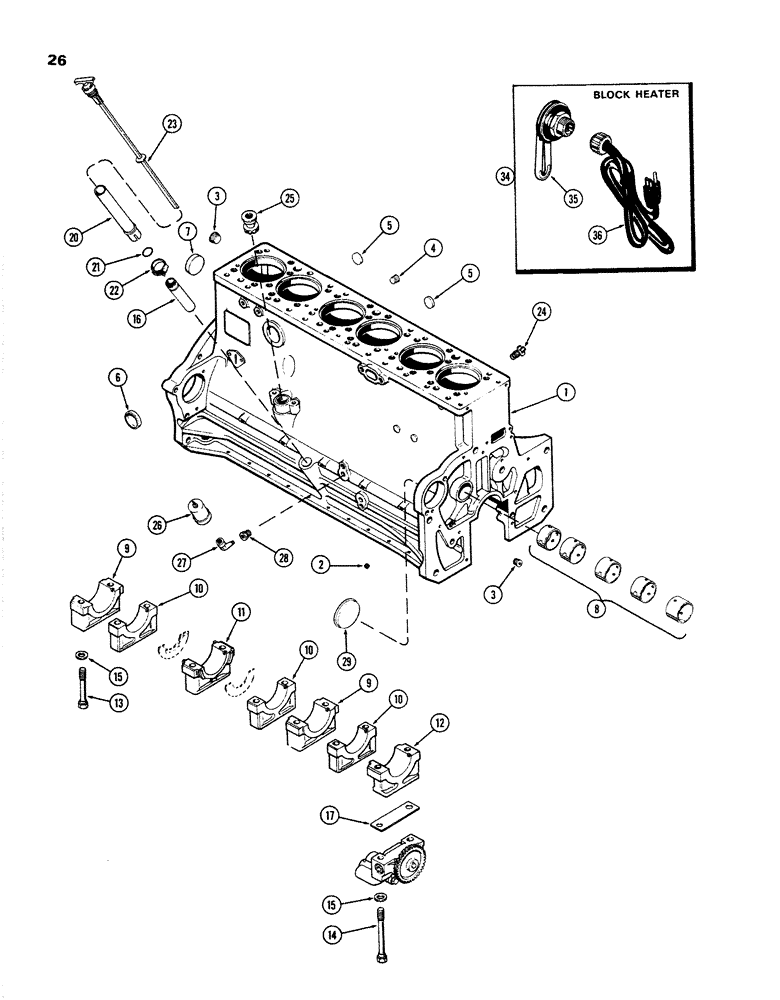

Запчасти Case W26B (026) - CYLINDER BLOCK ASSEMBLY, (504BDT) DIESEL ENGINE, THICK DECK BLOCK, 1ST USED ENG. SER. NO. 2556252 (02) - ENGINE

A44098

ENGINE

BLOCK ASSY. - short (Incl. stripped block, piston assy., connecting rods & brgs., crankshaft & brgs., camshaft, timing gears), Includes: Ref. 1 - 17

1шт.

1

A46000

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A66525), Includes: Ref. 2 - 17

1шт.

A151233

CRANKCASE

Engine Short Block, Tier 0

1шт.

AR151233

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

AC151233

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

2

221-41

PLUG

- oil gallery (1/8" P.T., sltd. headless)

6шт.

3

221-1843

PLUG

- oil gallery (3/8" P.T., hex. sckt. hd.)

3шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T., hex. sckt. hd.)

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" cup type)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

7

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

8

A23544

BUSHING

SET - camshaft

1шт.

9

A58562

CAP

- main brg., wide (rear & intermediate)

2шт.

10

A58563

CAP

- main brg., narrow (intermediate)

3шт.

11

A58564

CAP

- main brg., wide (thrust)

1шт.

12

A63902

CAP

- main brg., wide (front), subs to A154396 2.648" high, order A154399 if old cap height is 3.015"

1шт.

13

A66948

STEP BOLT

BOLT - brg. caps (5/8" N.C. x 5")

12шт.

14

A66949

STEP BOLT

BOLT - brg. cap, front (5/8" N.C. x 7-1/4")

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - brg. cap bolts (5/8 x 1 x 1/8")

14шт.

16

A34540

TUBE

- oil filter & dipstick

1шт.

17

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

20

A65778

TUBE

- extension, oil filler & dipstick

1шт.

21

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - extension (1-1/8 x 1-3/8 x 1/8")

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube (1-3/16" to 1-3/4")

1шт.

23

A67028

DIPSTICK

- oil level

1шт.

24

A23656

COCK, DRAIN

VALVE - drain, cyl. block

1шт.

25

A34266

DRIVE

ASSY. - tachometer

1шт.

26

A35031

SENDER UNIT

UNIT - sending, eng. oil pressure

1шт.

27

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street, sending unit 90º, 1/8"-27, NPT

1шт.

28

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducer (3/8" P.T. to 1/8" P.T.)

1шт.

29

41-1052

PLUG,Cup, 3 1/4"

- aux. pump opening (3-1/4" cup type)

1шт.

34

A44812

HEATER

ASSY., block, Includes: Ref. 35 and 36

1шт.

35

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater element (1-3/4 x 2 x 1/8"), block

1шт.

36

A44813

CABLE EXTENSION

CORD ASSY. - (12" long), block heater

1шт.
