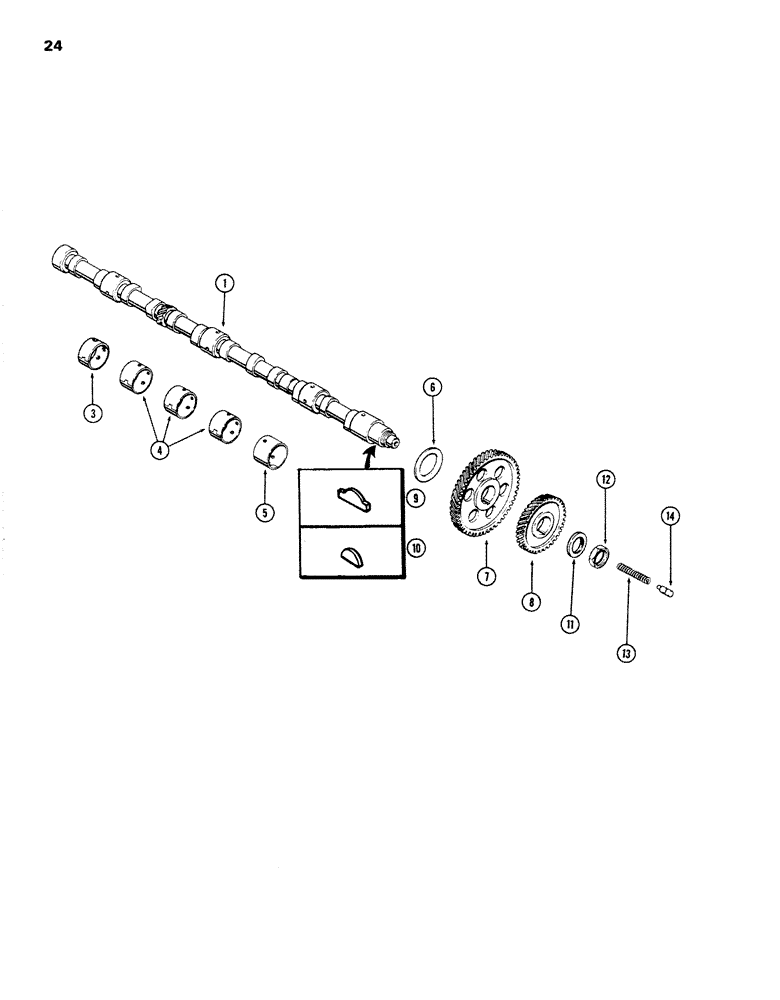

Запчасти Case W26B (024) - CAMSHAFT, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A66743

CAMSHAFT

- (1st used eng. ser. no. 2323279) (Replaces A62734)

1шт.

1

A58591

CAMSHAFT

- (used prior to eng. ser. no. 2323279) (Order 1-A66743 camshaft & 1-126-227 key)

1шт.

A23544

BUSHING

SET - camshaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-1/2" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-3/8" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-5/8" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft (2-1/4 x 3-1/4 x 1/8")

1шт.

7

A58592

GEAR

- camshaft timing

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro (used w/A66743 camshaft)

1шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Used w/A66743 camshaft #C, 5/16" x 1 1/8"

1шт.

11

A31038

THRUST WASHER

- (1-3/8 x 2-1/4 x 5/32") (Rpl. A58594 tab washer)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

CASA27853

SPRING

- thrust plunger

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
