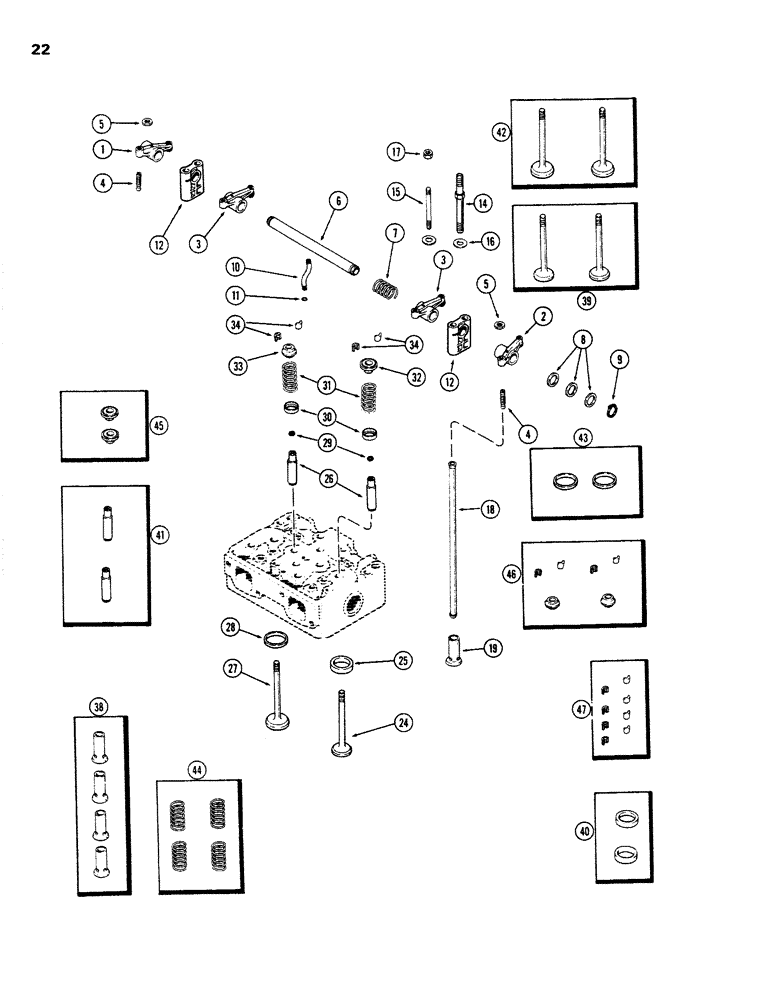

Запчасти Case W26B (022) - VALVE MECHANISM, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, #1, #3 & #5 exhaust valve

3шт.

2

A58656

ARM

- rocker, #2, #4 & #6 exhaust valve

3шт.

3

A58654

ARM

- rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex

12шт.

6

A57532

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- rocker shaft (15/16 x 1-5/16 x 1/32")

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft ends #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

14

A67121

STUD

- bracket (7/16" N.C. x 6") (Rpl. A60885)

6шт.

15

A58659

STUD

- bracket (7/16" N.C. x 4-5/16")

6шт.

16

195-29

WASHER,7/16"

- 7/16 x 15/16 x 1/16"

12шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

6шт.

18

A58596

ROD

- push

12шт.

19

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 38)

12шт.

24

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 39)

12шт.

25

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 40)

6шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 41)

6шт.

27

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 42)

6шт.

28

NSS

NOT SOLD SEPARAT

INSERT - intake valve seat (Order ref. 43)

6шт.

29

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

30

A66328

SEAT

- valve spring (Replaces A58623)

12шт.

31

NSS

NOT SOLD SEPARAT

SPRING - valves (Order ref. 44)

12шт.

32

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 45)

6шт.

33

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 46)

6шт.

34

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 47)

24шт.

38

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.

39

A41753

VALVE

KIT - exhaust (Set of 2)

3шт.

40

A44576

INSERT

KIT - exhaust valve seat (Set of 2) (Rpl. A41757)

3шт.

41

A41781

GUIDE

KIT - valve stem (Set of 2)

6шт.

42

A41754

VALVE

KIT - intake (Set of 2)

3шт.

43

A42259

INSERT

KIT - intake valve seat (Set of 2)

3шт.

44

A42895

SPRING

KIT - valve (Set of 4)

3шт.

45

A44658

COIL

ROTO-CAP KIT - exhaust valve (Set of 2) (Rpl. A57433)

3шт.

46

A44645

KIT

RETAINER KIT - intake valve spring (Set of 2 w/locks) (Replaces A21657)

3шт.

47

A40352

LOCK

KIT - valve spring (Set of 8)

3шт.
