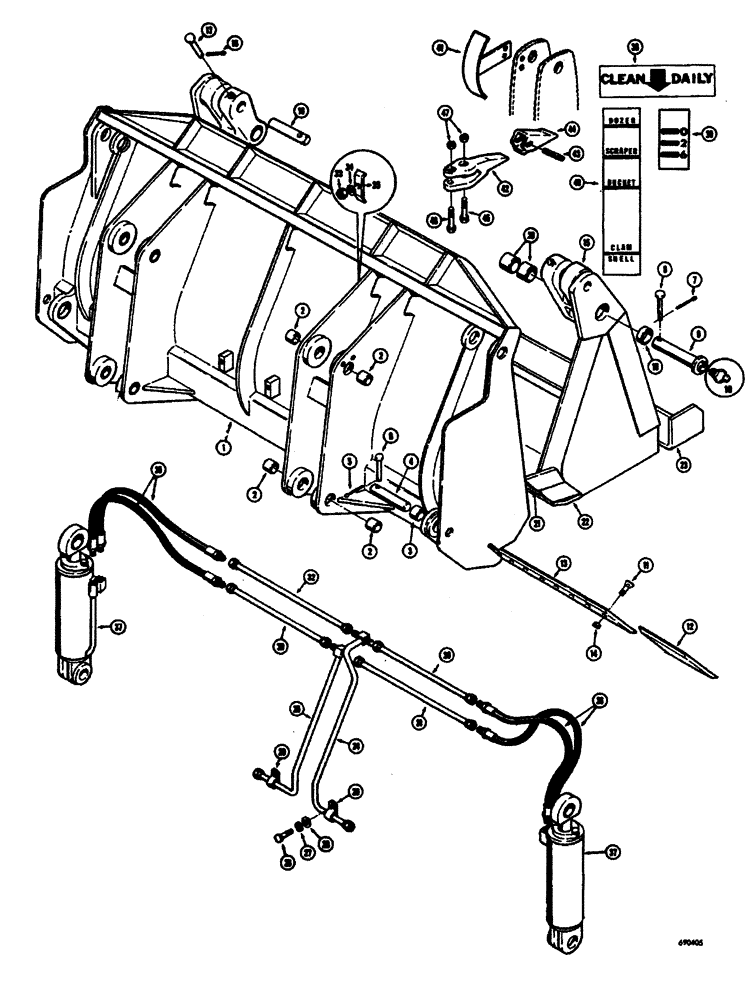

Запчасти Case W26B (356) - 4-IN-1 BUCKET (18) - MISCELLANEOUS

L15268

BUCKET ASSEMBLY - 3 cu. yd. (2.2 cu meter) Machinery item, Includes: Ref. 1 - 41

1шт.

L32025

BLADE ASSEMBLY - bucket, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

L12988

BUSHING

- bucket ear

8шт.

3

L32009

BUSHING - clam cylinder mounting bracket

2шт.

4

L32027

PIN

- clam cylinder, lower

2шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

6

L32030

PIN

- clevis, 5/8" dia. x 4"

2шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

8

L32036

PIN

- clevis, 5/8" dia. x 4-3/4"

2шт.

9

L32035

PIN - clam to blade, Includes: Ref. 10

2шт.

10

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight (1/4" - 28 NF)

1шт.

11

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

BOLT - plow, 3/4" - 10 NC x 2-1/2"

20шт.

12

L32038

CUTTING EDGE - end

2шт.

13

L32037

EDGE

CUTTING EDGE - center

1шт.

14

25-1012

NUT,3/4"-10, G5

20шт.

L32039

CLAW

CLAM ASSEMBLY - bucket, Includes: Ref. 15 - 23

1шт.

15

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

16

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

17

L32046

PIN - clevis, 5/8" dia. x 5-1/2"

2шт.

18

L32045

PIN - clam, Serial Range: cylinder-clam

2шт.

19

L32041

BUSHING - clam ear

2шт.

20

L32040

BUSHING

- clam hinge

4шт.

21

L32044

HOOK

GRAB HOOK - clam

2шт.

22

L32043

PLATE - wear, clam rear

1шт.

23

L32042

EDGE

CUTTING EDGE - clam, front

1шт.

24

L32063

TUBE - to clam cylinder, rod end 1" OD x 33.1, 3.5" L

1шт.

25

L32064

TUBE,1" OD

- to clam cylinder, closed end

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

29

L32065

CLAMP

- tube

2шт.

30

L32066

TUBE - to clam cylinder (R.H. rod end - L.H. closed end) 0.75" OD x 20.5" L

2шт.

31

L32067

TUBE - to R.H. clam cylinder, closed end

1шт.

32

L32068

TUBE - to L.H. clam cylinder, rod end 0.75" OD x 25.5" L

1шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

D4073

CLAMP - tube

2шт.

36

L32069

HOSE,0.75" ID x 34.00"

- clam cylinder, 34" long (863 mm)

4шт.

37

L32047

CYLINDER - hydraulic, clam, parts list figure 420

2шт.

38

A18673

DECAL

- clean daily

1шт.

39

L32070

DECAL - clam opening

1шт.

40

321-1223

DECAL

- bucket position indicator

1шт.

41

L15269

BRACKET - bucket position decal mounting

1шт.

L32071

TOOTH

ASSEMBLY - bucket, teeth, Includes: Ref. 42 - 47

11шт.

42

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

43

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, , Point mounting, bucket teeth 1/2" x 3", Slotted

1шт.

44

L32073

POINT

- tooth, bucket teeth

1шт.

45

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

HHCS - 7/8" - 9 NC x 4", bucket teeth

11шт.

46

13-1468

BOLT,Hex, 7/8" - 9 x 4-1/4", Gr 5

HHCS - 7/8" - 9 NC x 4-1/4" bucket teeth

11шт.

47

25-1014

NUT,7/8"-9, G5

Bucket teeth 7/8"-9, G5

22шт.
