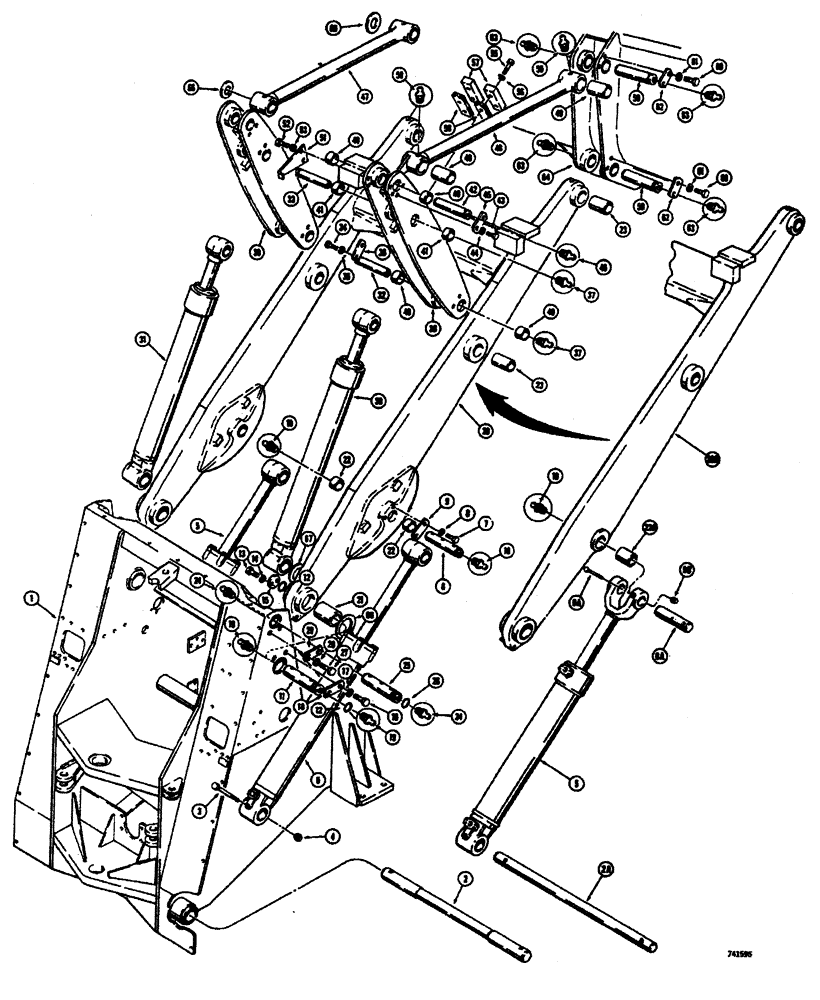

Запчасти Case W26B (350) - LOADER LIFT FRAME AND RELATED PARTS (18) - MISCELLANEOUS

1

REF

INSTRUCTION

FRAME ASSEMBLY - front chassis (See figure 298 for frame, bushing and related parts)

1шт.

2

L12313

SHAFT

- pivot, lift cylinder (Used before tractor Sn. 9116328)

1шт.

2a

L55842

SHAFT

- pivot, lift cylinder (Used tractor Sn. 9116328 and after)

1шт.

3

26-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

HHCS - 1/2" - 13 NC x 6-1/2"

2шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

REF

INSTRUCTION

CYLINKER - hydraulic, loader lift, see figures 406 thru 412 for proper cylinder

2шт.

6

L13057

PIN - mounting, lift cylinder to lift arm frame (Used before tractor Sn 9116328)

2шт.

6a

L15725

PIN

- mounting, lift cylinder to lift arm frame (used tractor Sn. 9116328 and after)

2шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

If used 1/2"

4шт.

9

L11493

LOCK

- cylinder mounting pin (If used)

4шт.

9a

26-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

HHCS - 5/8" - 11 NC x 5" (Grade 8) If used

2шт.

9b

131-64

LOCK NUT,5/8"-11, GC

NUT - hex., lock (5/8") If used

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straingt (1/8" NPT)

4шт.

11

L12976

PIN

- pivot, lift, Serial Range: arm-frame

2шт.

12

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O"ring, pivot pin

4шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

L12977

SEAL ASSY.

RETAINER - seal, inner

2шт.

16

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

L11493

LOCK

- pin retainer

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

20

L40854

FRAME ASSEMBLY - loader lift (Used before tractor Sn. 9116328), Includes: Ref. 21 - 23

1шт.

20a

L54899

FRAME ASSEMBLY - loader lift (Used tractor Sn. 91163258 and after), Includes: Ref. 21 - 23

1шт.

21

L12702

BUSHING

- lift, Serial Range: arm-chassis

2шт.

22

L12974

BUSHING

- lift arm to lift cylinder (Used with L40854 frame assembly)

4шт.

22a

L15802

BUSHING,63.75mm ID x 75.48mm OD x 89mm L

- lift arm to lift cylinder (Used with L54899 frame assembly)

2шт.

23

L12973

BUSHING

- lift, Serial Range: arm-bellcrank

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

and to bucket FITTING - grease, straight (1/8" NPT)

4шт.

25

L13028

AXLE PIN

PIN - mounting, tilt, Serial Range: cylinder-frame

2шт.

26

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

SEAL - "O"ring, mounting pin

2шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

L11493

LOCK

- pin retainer

2шт.

30

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. loader bucket, parts list figures 414 thru 418

1шт.

31

REF

INSTRUCTION

CYLINDER - hydraulic L.H. loader bucket, parts list figures 414 thru 418

1шт.

32

L12989

PIN

- bellcrank to lift arm

2шт.

33

L12991

PIN

- bellcrank to tilt cylinder

2шт.

34

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

8шт.

35

92-8

LOCK WASHER,1/2"

8шт.

36

L12990

LOCK

- pin retainer

4шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straingt (1/8" NPT)

8шт.

38

L43010

BELLCRANK ASSY - bucket, R.H., Includes: Ref. 40 and 41

1шт.

39

L43008

BELLCRANK ASSY - bucket, L.H., Includes: Ref. 40 and 41

1шт.

40

L12988

BUSHING

- bellcrank to lift frame and to bucket link

4шт.

41

L12974

BUSHING

- bellcrank to tilt cylinder

2шт.

42

L12978

PIN

- bellcrank to bucket link

2шт.

43

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

L12990

LOCK

- pin retainer

2шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

47

L12992

LINK

- bucket L.H. (When stock is exhausted, order L52628 link for service), Includes: Ref. 49 and 50

1шт.

47

L52628

LINK ASSY.

LINK - bucket, L.H., Includes: Ref. 49 and 50

1шт.

48

L43120

LINK

- bucket, R.H. (When stock is exhausted, order L52644 link for service), Includes: Ref. 49 and 50

1шт.

48

L52644

POWER ARM

LINK - bucket, R.H., Includes: Ref. 49 and 50

1шт.

49

L12973

BUSHING

- bucket link

2шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

51

L15066

INDICATOR

- bucket position

1шт.

52

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

53

92-8

LOCK WASHER,1/2"

2шт.

55

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex. socket head (1/2" - 13 NC x 1-3/4")

8шт.

56

92-8

LOCK WASHER,1/2"

8шт.

57

L43011

BLOCK

- bellcrank stop

4шт.

58

L43012

SHIM

- stop block (.0598" thick)

1шт.

59

L12978

PIN

- lift arm and, Serial Range: link-bucket

4шт.

60

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

8шт.

61

92-8

LOCK WASHER,1/2"

8шт.

62

L11493

LOCK

- pin retainer

4шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

8шт.

64

REF

INSTRUCTION

BUCKET - loader (Parts list figure 246)

1шт.

65

L47460

WASHER

- shim, at link and bucket mounting

1шт.

66

L47461

WASHER

- shim, at link and bellcrank mounting

1шт.

67

L48882

WASHER

- shim, at tilt cylinder and chassis

1шт.

68

L48392

WASHER - shim, at lift arm and chassis

1шт.
