Запчасти Case W26B (467A) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS

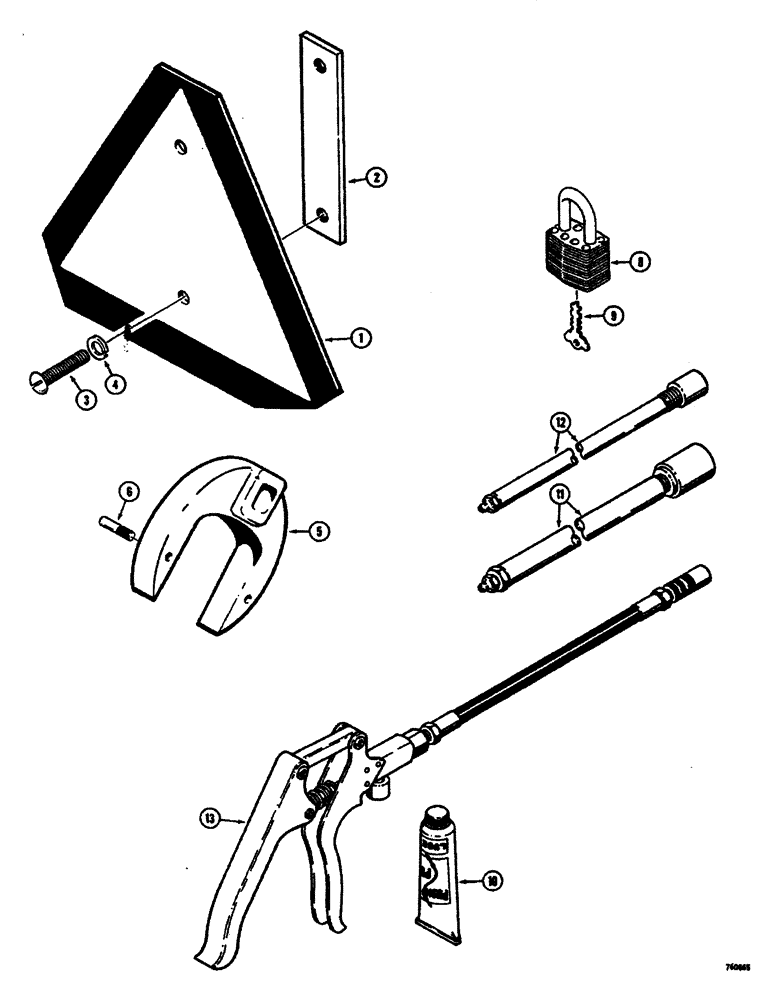

Схема запчастей Case W26B - (467A) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS
6
2
10
13
5
8
1
12
3
4
9
11

Артикул

Название

Примечание

Количество

A59450

WARNING SIGN

EMBLEM ASSEMBLY - plate and decal, Includes: Ref. 1 and 2

1шт.

1

321-1751

DECAL

- slow moving vehicle emblem

1шт.

2

L16093

PLATE

- mounting, emblem

1шт.

3

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, pan head (#10 - 24 NC x 1-1/2")

2шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders) tools, Includes: Ref. 5 and 6

1шт.

5

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods, Includes: Ref. 6, tools

1шт.

5

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod, Includes: Ref. 6, tools

1шт.

5

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod, Includes: Ref. 6, tools

1шт.

5

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods, Includes: Ref. 6, tools

1шт.

5

G33234

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinder with 2" or 2-1/4" piston rods, Includes: Ref. 6, tools

1шт.

5

G33235

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" piston rod, Includes: Ref. 6, tools

1шт.

6

D30107

PIN

- spanner wrench, for 2-1/2" I.D. thru 4" I.D. cylinders, tools

3шт.

6

D44118

SPARE PART

PIN - spanner wrench, for 4-1/2" I.D. cylinders, tools

3шт.

7

L53322

BRACKET - lift and tie down (Not shown), tools

4шт.

8

R29556

LOCK

PAD LOCK, tools, Includes: Ref. 9

5шт.

9

R29555

KEY

- set of 2, tools

1шт.

L43569

LUBE NIPPLE

KIT - cable lubrication, tools, Includes: Ref. 10 - 12

1шт.

10

L43571

TOOL

LUBRICANT - type E cable, tube, tools

1шт.

11

L43677

LUBRICATOR NOZZLE - Series 60, tools

1шт.

12

L4357

LUBRICATOR NOZZLE - Series 30, tools

1шт.

13

D73727

GREASE GUN - cable lubrication, tools

1шт.

Выбрано товаров: 22
