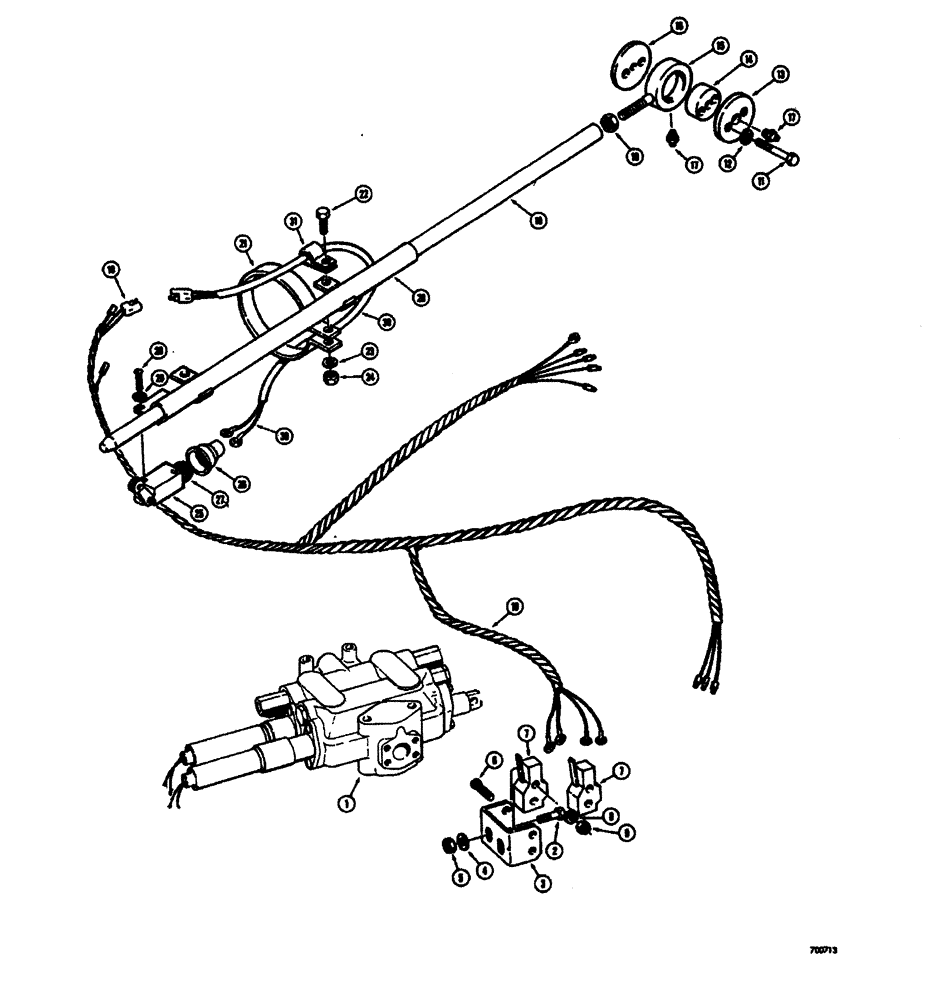

Запчасти Case W26B (432) - LOADER POSITIONING CONTROLS LOADER BUCKET RETURN TO DIG (09) - CHASSIS

1

REF

INSTRUCTION

VALVE - loader control (See figures 434 - 438 and 448 - 450 for proper valve )

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(Used with L15277 harness only) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

3

L13133

BRACKET - micro switch mounting (Used with L15277 harness only)

1шт.

4

92-5

LOCK WASHER,5/16"

med sect., used with L15277 harness only 5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) Used with L15277 harness only

2шт.

6

173-66

SCREW,Sl Rnd Hd, #6 - 32 x 1"

- machine, round head (#6 -32 NC x 1") Used with L15277 harness only

4шт.

7

L11349

SWITCH

- micro, tilt and lift (At valve) Used with L15277 harness only

2шт.

8

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Used with L15277 harness only Ext Tooth, #6

4шт.

9

129-15

NUT,#6-32

(Used with L15277 harness only) #6-32

4шт.

10

L15277

HARNESS

- return to dig, rear (At valve and micro switches) with solenoid detented loader control v

1шт.

10

L52976

HARNESS

- return to dig, rear (At valve) With magnetic detented loader control valve

1шт.

11

14-736

BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 5

HHCS - 7/16" - 20 NF x 2-1/4"

2шт.

12

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

2шт.

13

L13082

LARGE PLATE

PLATE - retainer, control, Serial Range: hub-pin

1шт.

14

L13081

HUB

- pivot, bucket control

1шт.

15

L40349

HUB CAP

HUB - control, bucket

1шт.

16

L13080

PLATE - spacer, bucket control

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

18

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

1шт.

19

L40355

ROD - actuating

1шт.

20

L43623

GUIDE

- rod, Serial Range: return-dig

1шт.

21

L40356

CLAMP - mountng, rod guide to tilt cylinder

2шт.

22

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

HUT - hex. (3/8" - 16 NC)

2шт.

25

L43856

SWITCH

ASSEMBLY - control, return to dig (At actuator rod), Includes: Ref. 25A - 25F

1шт.

25a

NSS

NOT SOLD SEPARAT

HOUSING - switch (Not illustrated)

1шт.

L33933

KIT

- repair, total switch (Not"illustrated), Includes: Ref. 25B - 25F

1шт.

25b

L30628

LEVER

ASSEMBLY - switch (Not illustrated)

1шт.

25c

L33935

SEAL - access, switch module (Not illustrated)

1шт.

25d

L33934

GASKET - cover (Not illustrated)

1шт.

25e

L30627

SWITCH - module, return to dig (Not illustrated)

1шт.

25f

D73709

COVER - switch (Not illustrated)

1шт.

26

G46803

BOOT

- switch protection

1шт.

27

221-1185

FITTING

NIPPLE - pipe (1/2" NPT)

1шт.

28

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

- machine, round head (#10 -24 NC x 3/8")

2шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

L40305

ELECTRICAL WIRE

HARNESS - return to dig, front (At control switch)

1шт.

31

49838

CLAMP

- return-to-dig harness

1шт.
