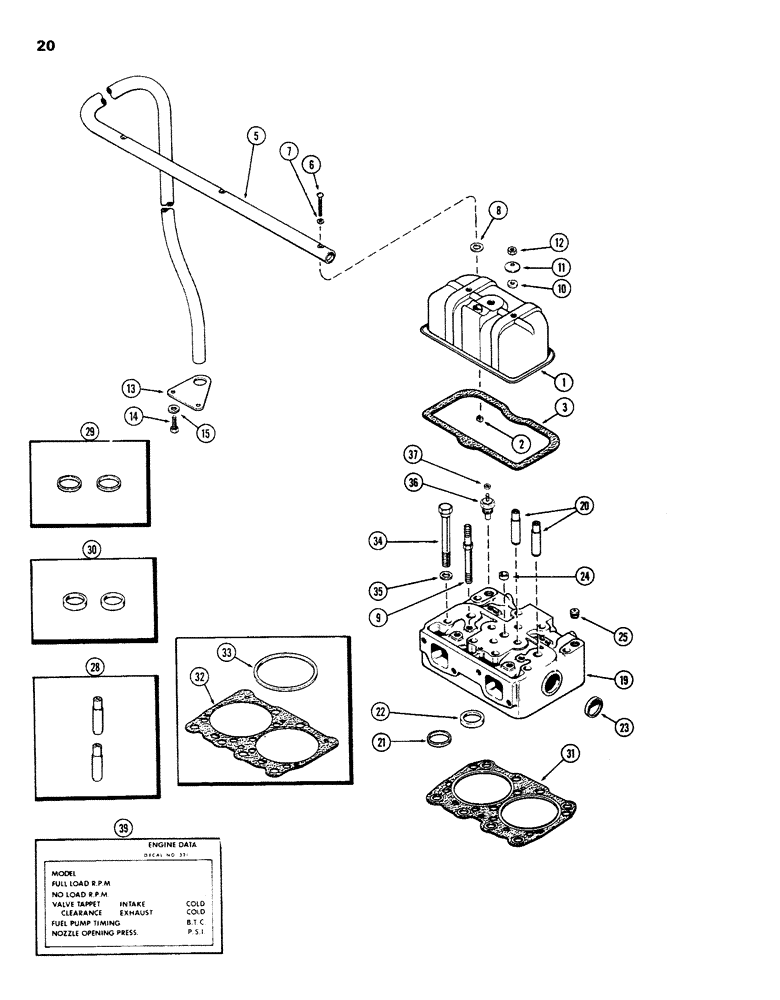

Запчасти Case W26B (020) - CYLINDER HEAD AND COVER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSY. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman (Cage Type)

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cover to head (Replaces A58928)

3шт.

5

A62136

SPARE PART TUBE - breather

1шт.

6

75-440

SCREW

SCREW - tube to cover (1/4 x 2-1/2" N.C. rd. hd.)

3шт.

7

A34133

GASKET

GASKET - screw to tube (1/4 x 1/2 x 1/16" fiber)

3шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube to cover (11/16 x 1-1/4 x 1/4")

3шт.

9

A67121

STUD

STUD - cover & rocker shaft brkt. (7/16" N.C. x 6") (Replaces A60885)

6шт.

10

A23684

GASKET

GASKET - cover stud

6шт.

11

A23683

WASHER

WASHER - dished, cover stud

6шт.

12

25-107

NUT,7/16"-14, G5

NUT - cover, 7/16" N.C. hex

6шт.

13

A58734

BRACKET

BRACKET - breather tube to oil pan

1шт.

14

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. hex

2шт.

15

195-25

WASHER,3/8"

WASHER - (3/8 x 13/16 x 1/16")

1шт.

19

A60558

CYLINDER HEAD

HEAD ASSY. - cylinder (Casting No. A60559), Includes: Ref. 20 - 24

3шт.

19

AR66686

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

19

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 28)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - Intake valve seat (Order ref. 29)

2шт.

22

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 30)

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - (1-5/8" cup type)

2шт.

24

A58620

PLUG,Cup, 3/4", Stainless

PLUG - (3/4" cup type)

1шт.

25

221-1843

PLUG

PLUG - top of head, 3/8" P.T. socket hd.

5шт.

28

A41781

GUIDE

GUIDE KIT - valve stem (Set of 2)

6шт.

29

A42259

INSERT

INSERT KIT - intake valve seat (Set of 2)

3шт.

30

A44576

INSERT

INSERT KIT - exhaust valve seat (Set of 2) (Repl. A11757)

3шт.

31

A138149

GASKET

GASKET - cyl. head to block (w/fire ring) (Replaces A64113) (1st used eng. ser. no. 2511310)

3шт.

32

A59121

CYLINDER HEAD GASKET

GASKET - cylinder head to block (used prior to eng. ser. no. 2511310)

3шт.

33

A58622

RING

RING - fire, (Std.) (used w/A59121 gasket)

6шт.

33

A42596

RING - fire, (oversize w/blue stripe) (used w/A59121 gasket)

6шт.

34

A76638

BOLT

BOLT - head to block (5/8 x 6-1/4" N.C. hex.) (1st used eng. ser. no. 2556252)

30шт.

34

A62732

STEP BOLT

BOLT - head to block (5/8 x 5-5/8" N.C. spec.) (Used prior to eng. ser. no. 2556252)

30шт.

35

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt (5/8 x 1 x 1/8")

30шт.

36

A65588

SENDER UNIT

- temperature sending (Replaced F13156)

1шт.

37

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10 N.F. hex

1шт.

39

321-2308

DECAL - engine data (3200 P.S.I.) (Used w/A62809 inj. nozzles) (See Figure 56)

1шт.

39

321-1389

SPARE PART DECAL - engine data (2800 P.S.I.) (Used w/A58694 inj. nozzles) (See Figure 56)

1шт.
