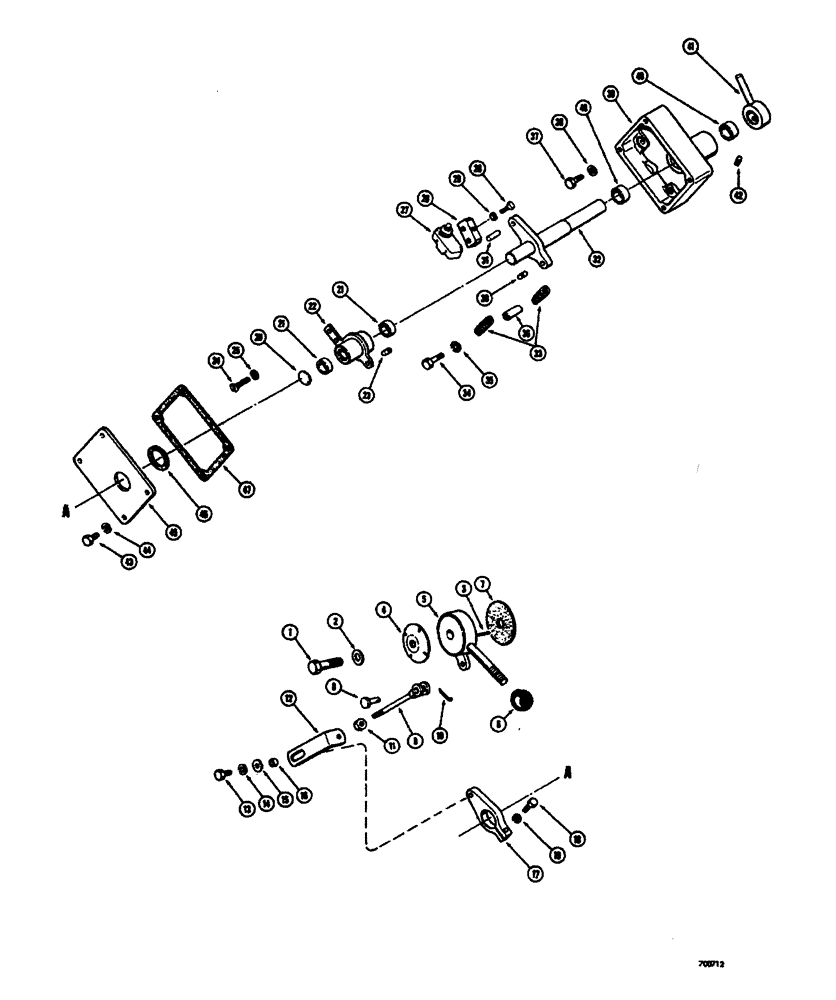

Запчасти Case W26B (430) - LOADER POSITIONING CONTROLS LOADER BUCKET HEIGHT CONTROL (09) - CHASSIS

1

113-442

PREV TORQUE BOLT,Locking, 1/2"-13 x 2 1/4", G5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

2

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

3

138-47

LOCK PIN,3/32" x 1 1/4", Slotted

Pin, 3/32" x 1 1/4", Slotted

1шт.

4

G49412

WASHER

- spring, contorl lever

1шт.

5

L13105

LEVER - bucket height control

1шт.

6

A23885

KNOB

- control lever

1шт.

7

G10786

DISC

- friction, control lever

1шт.

8

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke, lever to link 5/16" x .940"

1шт.

9

L13110

DRAG LINK

ROD AND YOKE - connecting

1шт.

10

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

11

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

12

L13109

SPARE PART

LINK - control, rod lever

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

15

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

16

L13111

SPACER

- lever

1шт.

17

L13101

LEVER - connecting

1шт.

18

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

19

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

L13090

LEVER ASSEMBLY - micro switch mounting, Includes: Ref. 20 - 23

1шт.

20

41-18

PLUG

- expansion

1шт.

21

L13094

BUSHING - lever

2шт.

22

NSS

NOT SOLD SEPARAT

LEVER - switch mounting

1шт.

23

135-957

AXLE PIN,1/4" x 1/2", Type G

Pin, Grooved, , anchor, spring 1/4" x 1/2", Type G

1шт.

24

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- machine, pan head (#6 -32 NC x 1-1/4")

2шт.

25

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

26

L13097

BAR

BLOCK - mountng, micro switch

1шт.

27

A19513

SWITCH

- micro, lift arm control, neutral start

1шт.

28

113-21

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

HHCS - 1/4" - 20 NC x 1-1/2" (Full thread)

1шт.

29

25-104

NUT,1/4"-20, G5

1шт.

L13086

LEVER ASSEMBLY - switch actuating, Includes: Ref. 30 - 32

1шт.

30

135-957

AXLE PIN,1/4" x 1/2", Type G

Pin, Grooved, , anchor, spring 1/4" x 1/2", Type G

1шт.

31

A30589

PIN

- lever

1шт.

32

NSS

NOT SOLD SEPARAT

LEVER - switch

1шт.

33

L13095

VALVE SPRING

SPRING - control lever, lift arm

2шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

L13096

SPACER - spring, control lever

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

38

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

L13083

HOUSING

ASSEMBLY - control, lift arm, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

HOUSING - lift arm control

1шт.

40

L13084

BUSHING - actuating lever

2шт.

41

L13102

LEVER - control, lift arm

1шт.

42

83-612

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW- set, hex. socket headless (3/8" - 16 NC x 3/4")

1шт.

43

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

44

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

45

L13100

COVER ASSY

COVER - control housing

1шт.

46

L13098

GASKET - seal, control lever

1шт.

47

L13099

GASKET - cover, control housing

1шт.
