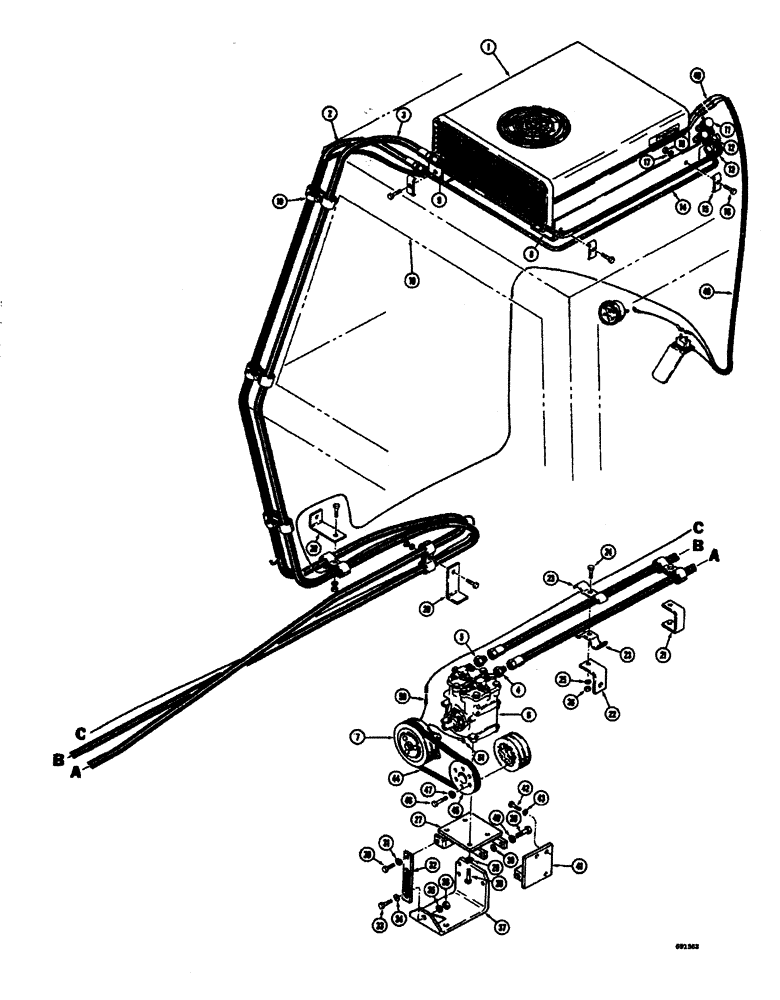

Запчасти Case W26B (348) - CAB AIR CONDITIONING (09) - CHASSIS

L15599

AIR CONDITIONING ASSEMBLY - operator's (Order component parts from Cummin's Distributors), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

CONDITIONING UNIT - air

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - 1/2" x 24' long (12 mmx 7 metres)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - 5/8" x 24' long (15 mm x 7 metres)

1шт.

4

NSS

NOT SOLD SEPARAT

FITTING - special (1/2")

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING - special (5/8")

1шт.

6

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

7

NSS

NOT SOLD SEPARAT

PULLEY - double sheave

1шт.

8

L16582

BRACKET - mounting, air conditioner (R.H.)

1шт.

9

L16581

BRACKET - mounting, air conditioner (L.H.)

1шт.

10

REF

INSTRUCTION

CAB - operator's (See figure 322 for proper cab)

1шт.

11

218-475

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC

- adjustable, 90 degree (5/8" tube)

1шт.

12

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

adjustable (1/2" tube) 90º, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

13

L16585

TUBE - suction, conditioning unit to compressor (5/8")

1шт.

14

L16584

TUBE - discharge, conditioning unit to compressor (1/2")

1шт.

15

L16583

CLAMP

BRACKET - tube mounting

3шт.

16

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

3шт.

17

92-5

LOCK WASHER,5/16"

3шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

19

49838

CLAMP

BRACKET - hose mounting

3шт.

20

L16609

BRACKET - hose mounting

2шт.

21

L16655

BRACKET - hose mounting

1шт.

22

L16608

BRACKET - hose mounting

1шт.

23

R15257

CLAMP

- hose

14шт.

24

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

7шт.

25

92-5

LOCK WASHER,5/16"

7шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

7шт.

27

L16393

PLATE - mountng, air compressor

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC X 1-1/2"

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

L16427

STRAP - adjusting, compressor

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

34

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

37

L16370

BRACKET - mounting, voltage regulator

1шт.

38

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

39

195-33

WASHER,1/2"

- plain () pulley alignment spacers 1/2"

1шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

L16426

BRACKET - mounting, compressor bracket to engine block

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

43

92-6

LOCK WASHER,3/8"

3шт.

44

L16462

BELT,41.00" L

Aiir conditioning, Compressor drive 41.00" L

1шт.

45

L24739

PULLEY - compressor drive, at engine

1шт.

46

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

47

92-6

LOCK WASHER,3/8"

6шт.

48

L11778

CONNECTOR, ELEC

TERMINAL - bullet, male

3шт.

49

L18335

HARNESS - wiring, air conditioner

1шт.

50

L11778

CONNECTOR, ELEC

TERMINAL - bullet, male

1шт.

51

223-52

FUSE

TERMINAL - eyelet, ground (compressor)

1шт.
