(340) - L50872 OPERATORS CAB GLASS AND MOULDING

Запчасти Case W26B (340) - L50872 OPERATORS CAB GLASS AND MOULDING (09) - CHASSIS

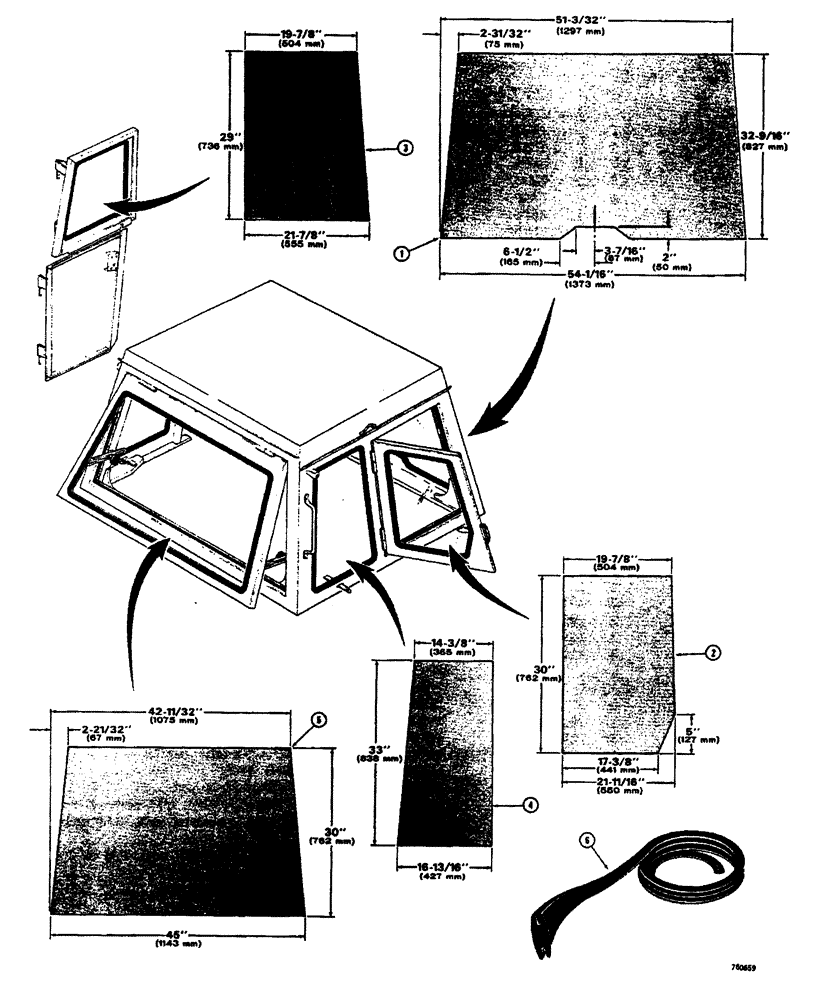

Схема запчастей Case W26B - (340) - L50872 OPERATORS CAB GLASS AND MOULDING (09) - CHASSIS
3
4
1
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

CAB - operator's Sims 1000 - 0235 (ROPS) See figure 2 for ordering, Includes: Ref. 1 - 6

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - window, R.H. front

1шт.

3

REF

INSTRUCTION

GLASS - door

1шт.

4

REF

INSTRUCTION

GLASS - side panel

2шт.

5

REF

INSTRUCTION

GLASS - rear window

1шт.

6

L35717

GASKET

MOULDING MATERIAL - 50 ft. (15 metres) roll

1шт.
