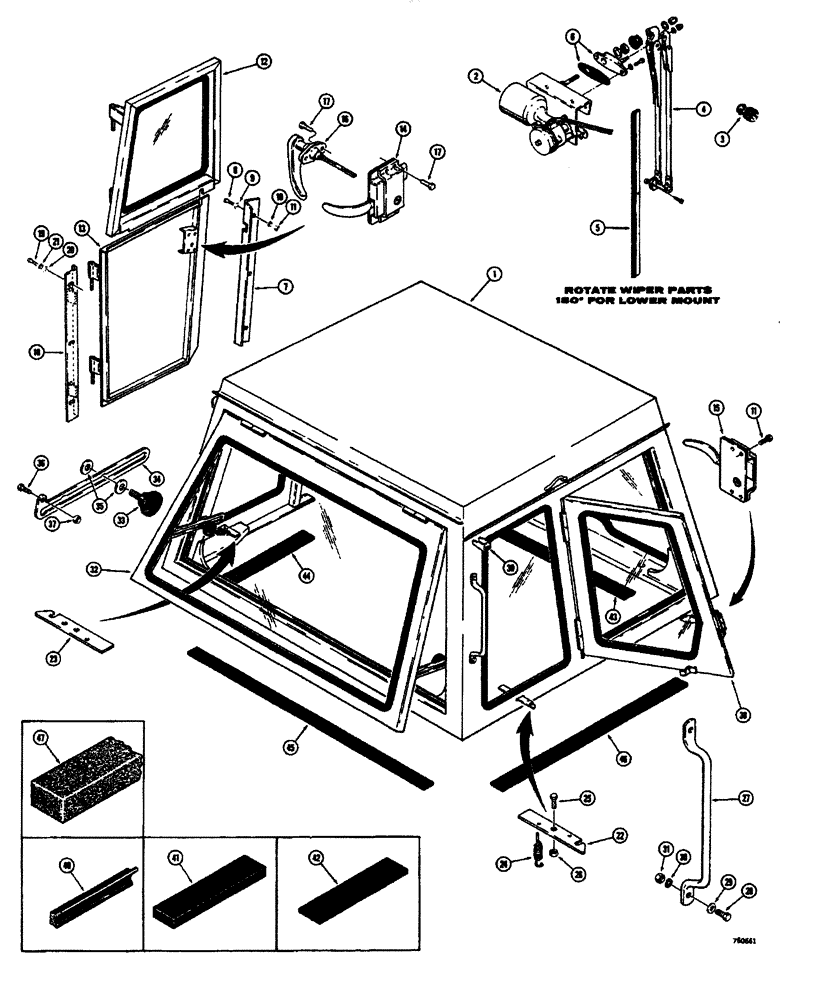

Запчасти Case W26B (338) - L50872 OPERATORS CAB DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB - Sims 1000 - 0235 (ROPS) See figure 2 for ordering, Includes: Ref. 1 - 39

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

REF

INSTRUCTION

MOTOR - wiper, parts list page 325A

1шт.

3

L35743

SWITCH

- windshield wiper motor (Bullet terminals)

1шт.

3

F63532

SWITCH

- windshield wiper (Blade terminals)

1шт.

4

L35260

ARM

ASSEMBLY - wiper, 20" (508 mm)

1шт.

5

L35261

BLADE

- wiper, 20 " (508 mm)

1шт.

6

L35753

ADAPTER

- double arm wiper

1шт.

7

L35872

STRIKER - lower door

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

9

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

12

L35866

DOOR FRAME - upper

1шт.

13

L35869

DOOR - lower

1шт.

14

L35738

LATCH

- door, inside

1шт.

15

L35737

LATCH

- window, inside

1шт.

16

L35829

HANDLE

LATCH - door, outside

1шт.

17

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self tapping (#10 x 3/4")

14шт.

18

L35873

BRACKET - lower door, hinge mounting

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

20

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

3шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

L35800

LATCH ASSY.

LATCH - window hold back

1шт.

23

L35884

LATCH - door hold back

1шт.

24

L35748

SPRING

- door hold back latch

2шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

L35746

HANDLE - grab

2шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

4шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

32

L35867

WINDOW FRAME - rear window slide out

1шт.

33

L30087

KNOB

- window hold out

2шт.

34

T42594

BRACE

ARM - window hold out

2шт.

35

195-104

WASHER,3/8"

- window hold out

4шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

86625061

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20) Zinc plated

2шт.

38

L35868

WINDOW FRAME - R.H. front

1шт.

39

L35871

FENDER

BUMPER - rubber

1шт.

40

L35732

STRIP

WEATHERSTRIP MATERIAL - 50 ft. (15 metres) roll

1шт.

41

L35756

SEALING STRIP

RUBBER - adhesive, 50 ft. (15 metres) roll, 3/8" x 1" (9 x 25 mm)

1шт.

42

L35819

RUBBER SEAL

RUBBER - adhesive, 50 ft (15 metres) roll, 1/8" x 1" (3 x 25 mm)

1шт.

43

L35891

RUBBER MOUNTING MATERIAL - front

1шт.

44

L35889

RUBBER MOUNTING MATERIAL - L.H. side

1шт.

45

L35892

RUBBER MOUNTING MATERIAL - rear

1шт.

46

L35888

RUBBER MOUNTING MATERIAL - R.H. side

1шт.

47

L35874

PADS - mounting, floor

1шт.
