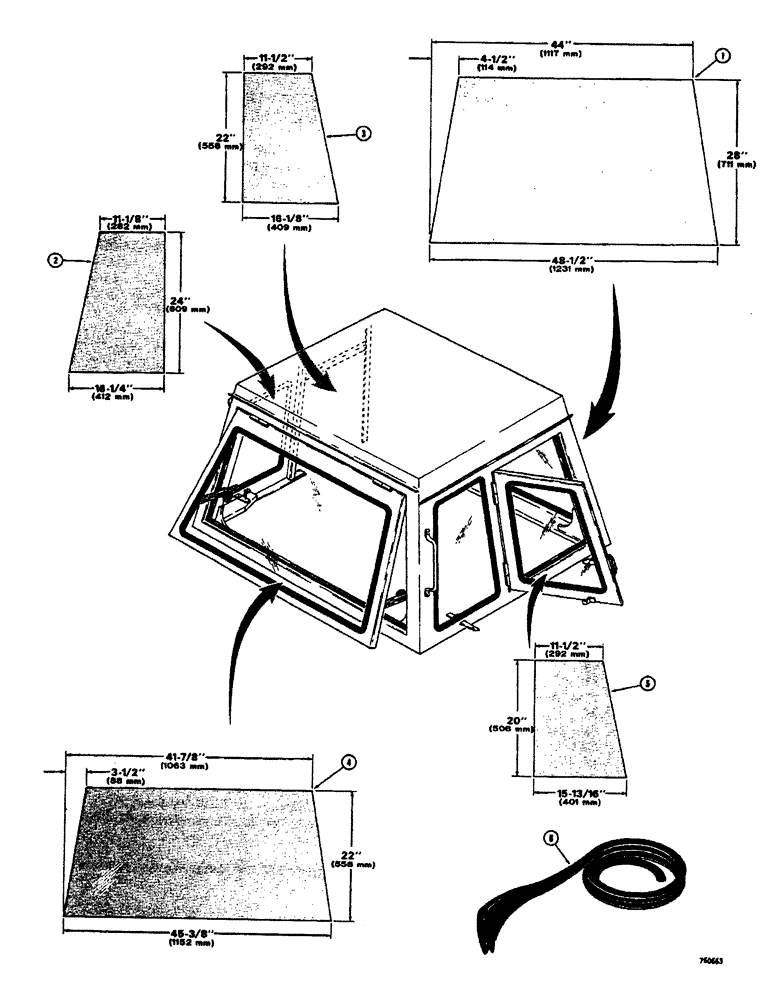

Запчасти Case W26B (336) - L53991 OPERATORS CAB GLASS AND MOULDING (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB - operator's, Sims 1000 - 0297 (ROPS) See figure 2 for ordering, Includes: Ref. 1 - 5

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - side panel window (Non-opening)

2шт.

3

REF

INSTRUCTION

GLASS - upper door

1шт.

4

REF

INSTRUCTION

GLASS - rear window

1шт.

5

REF

INSTRUCTION

GLASS - side window (Opening)

1шт.

6

L35717

GASKET

MOULDING MATERIAL - 50 ft. (15 metres) roll

1шт.
