Запчасти Case W26B (334) - L53991 OPERATORS CAB DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

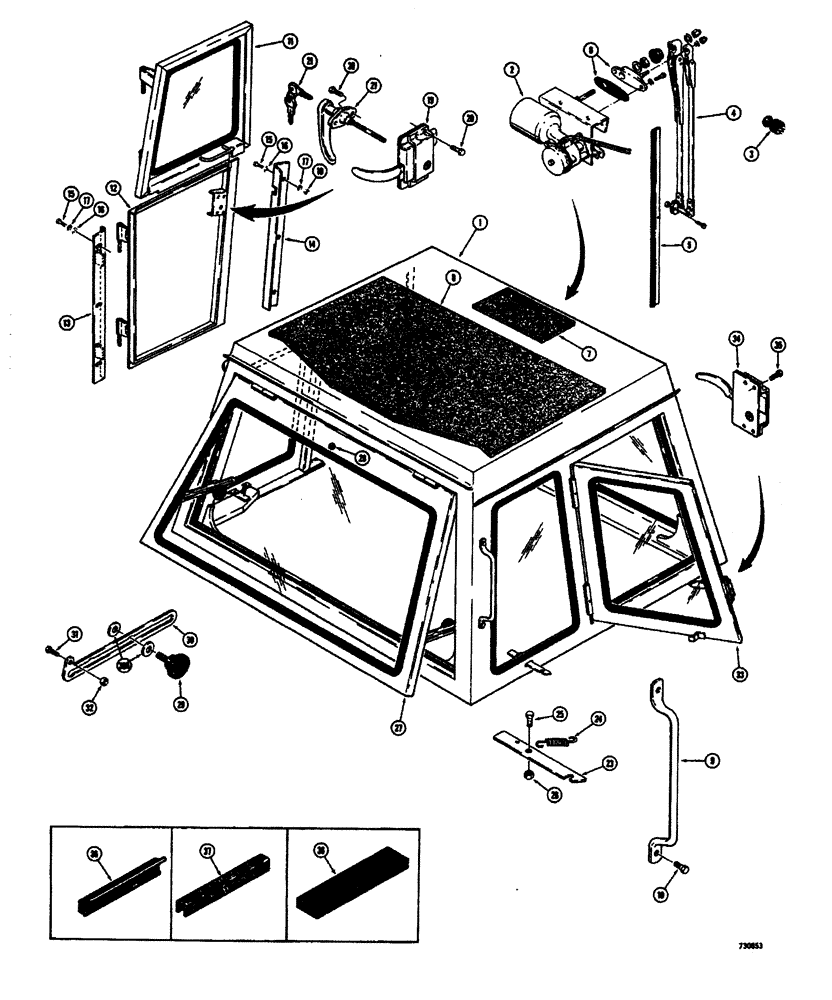

Схема запчастей Case W26B - (334) - L53991 OPERATORS CAB DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS
15
21
33
17
17
13
16
11
35
23
19
30a
24
32
34
31
6
18
20
30
29
12
3
15
28
20
37
8
4
5
14
21
27
9
2
36
25
26
38
16
18
7
1

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

CAB - operator's, Sims 1000 - 0297 (ROPS) See figure 2 for ordering, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - operator ' s cab

1шт.

2

REF

INSTRUCTION

MOTOR - wiper, parts list figure 325A

1шт.

3

L35743

SWITCH

- wiper motor (24 volt) Bullet terminals

1шт.

3

F63532

SWITCH

- windshield wiper (Blade terminals)

1шт.

4

L35260

ARM

ASSEMBLY - wiper, 20" (508 mm)

1шт.

5

L35261

BLADE

- wiper, 20" (508 mm)

1шт.

6

L35753

ADAPTER

- double arm wiper (Includes hardware)

1шт.

7

L35864

HEADLINER - front

1шт.

8

L35865

HEADLINER - rear

1шт.

9

L35746

HANDLE - grab

2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

L35857

DOOR - upper

1шт.

12

L35917

DOOR - lower

1шт.

13

L35916

BRACKET - hinge, lower door

1шт.

14

L35915

STRIKER - door

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

16

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

19

L35737

LATCH

- door (Inside)

1шт.

20

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self-tapping (#10 x 3/4")

6шт.

21

T42591

HANDLE

- door, key lock (The number stamped on lock and key must be specified when keys are ordered from Sims)

1шт.

23

L35747

LATCH

- door hold back

2шт.

24

L35748

SPRING

- door hold back latch

2шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

L35862

FRAME - rear window

1шт.

28

205-18

X

PLUG - rear window frame

1шт.

29

L30087

KNOB

- rear window holdout

2шт.

30

T42594

BRACE

ARM - rear window holdout

2шт.

30a

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

4шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

33

L35859

FRAME - side window

1шт.

34

L35738

LATCH

- side window (Inside)

1шт.

35

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self-tapping (#10 x 3/4")

4шт.

36

L35732

STRIP

WEATHER STRIP MATERIAL - 50 ft. (15 metres) roll

1шт.

37

L35759

WINDLACE MATERIAL - 50 ft. (15 metres) roll

1шт.

38

L35756

SEALING STRIP

GASKET MATERIAL - 50 ft. (15 metres) roll, 3/8" x 1" (9 x 25 mm)

1шт.

Выбрано товаров: 40
