Запчасти Case W26B (330) - *L48776 OPERATORS CAB DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

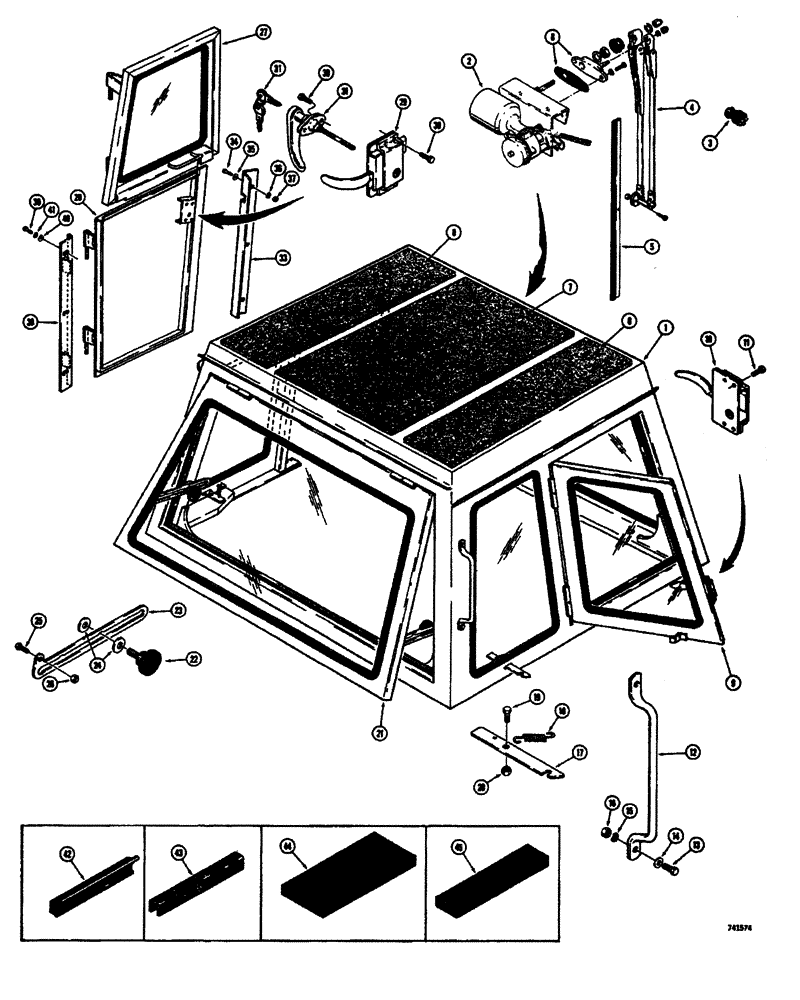

Схема запчастей Case W26B - (330) - *L48776 OPERATORS CAB DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS
11
1
33
31
29
30
38
7
13
30
12
31
16
25
9
8
5
14
20
3
34
4
30
6
15
17
18
21
22
45
24
44
19
20
27
35
28
42
2
23
41
8
36
40
43
26
37

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

CAB - Sims 1000 - 153 (All weather) see figure 2 for ordering, Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

REF

INSTRUCTION

MOTOR - wiper (2 speed) Parts list figure 325A

1шт.

3

L35743

SWITCH

- windshield wiper (Bullet terminals)

1шт.

3

F63532

SWITCH

- windshield (Blade terminals)

1шт.

4

L35260

ARM

ASSEMBLY - windshield wiper, 20" (508 mm)

1шт.

5

L35261

BLADE

- windshield wiper, 20" (508 mm)

1шт.

6

L35753

ADAPTER

- double arm windhsield wiper (With hardware)

1шт.

7

L35744

INSULATION - roof, middle

1шт.

8

L35757

INSULATION - roof, side

2шт.

9

L35745

FRAME ASSY

WINDOW FRAME - hinged, R.H. front

1шт.

10

L35737

LATCH

ASSEMBLY - R.H. front window

1шт.

11

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self-tapping (#10 x 3/4")

4шт.

12

L35746

HANDLE - grab

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

L35747

LATCH

- window holdback

2шт.

18

L35748

SPRING

- window holdback

2шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) Zinc plated

2шт.

21

L35749

WINDOW FRAME - rear

1шт.

22

L30087

KNOB

- rear window holdout

2шт.

23

T42594

BRACE

ARM - rear window holdout

2шт.

24

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

4шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

86625061

NUT,1/4"-20, GB

NUT - hex., lock (1/4" - 20 NC) Zinc plated

2шт.

27

L35750

DOOR FRAME - upper

1шт.

28

L35751

DOOR - lower

1шт.

29

L35737

LATCH

ASSEMBLY - inside, R.H.

1шт.

30

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self-tapping (#10 x 3/4")

6шт.

31

T42591

HANDLE

ASSEMBLY - outside, key lock (The number stamped on lock and key must be specified when keys are ordered from Sims)

1шт.

33

L35752

SPLIT PIN/SAFETY PIN

STRIKER - door

1шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

35

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

3шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

38

L35754

BRACKET - hinge mounting

1шт.

39

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

40

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

3шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

42

L35732

STRIP

WEATHERSTRIP MATERIAL - 50 ft. (15 metres) roll

1шт.

43

L35759

WINDLACE MATERIAL - 50 ft. (15 metres) roll

1шт.

44

L35755

RUBBER - strip, 50 ft. (15 metres) roll, 3/8" x 2" (9 x 50 mm) cab mounting

1шт.

45

L35756

SEALING STRIP

RUBBER - strip, 50 ft. (15 metres) roll, 3/8" x 1" (9 x 25 mm) cab mounting

1шт.

Выбрано товаров: 46
