Запчасти Case W26B (328) - ROLL-OVER PROTECTION CANOPY AND CAB TRACTOR SN. 9113537 AND AFTER AS (09) - CHASSIS

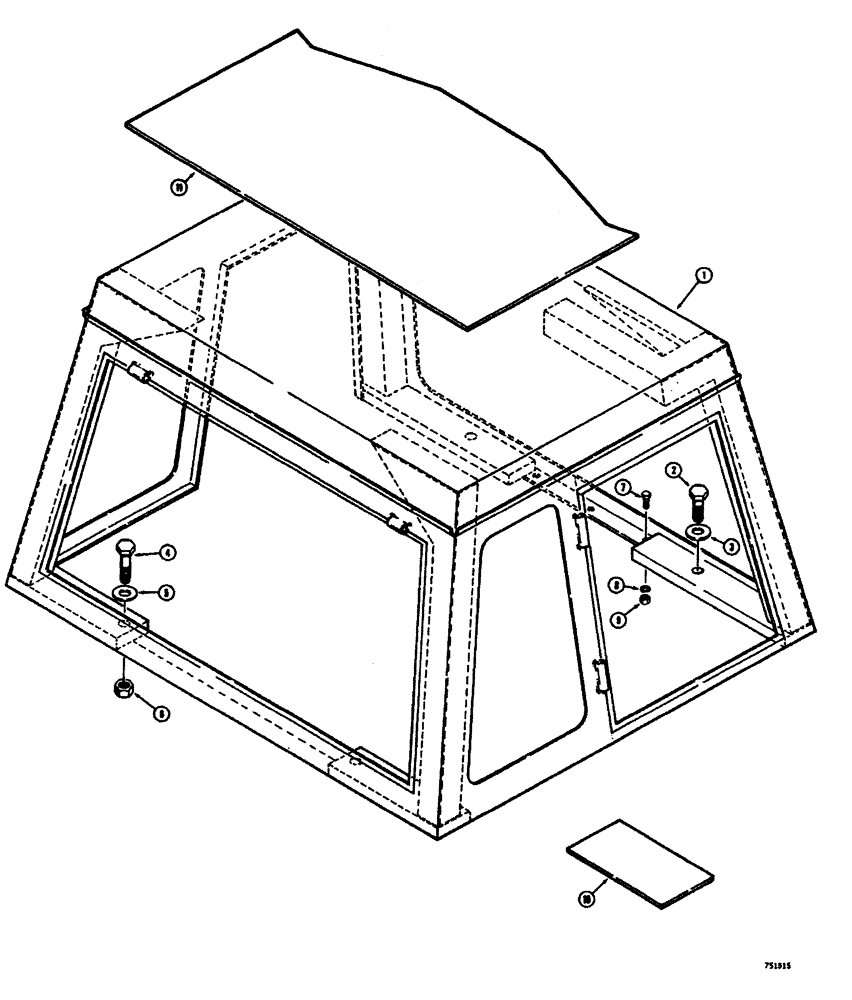

Схема запчастей Case W26B - (328) - ROLL-OVER PROTECTION CANOPY AND CAB TRACTOR SN. 9113537 AND AFTER AS (09) - CHASSIS
9
3
5
6
7
2
1
8
11
4

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ROPS CANOPY - roll-over protection (See figure 2 for ordering)

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - operator's, roll-over protection, Sims 1000-0297, Parts list figure 330 (Not shown) See figure 2 for ordering

1шт.

2

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

HHCS - 1" - 8 NC x 2-1/2" (Front mounting)

2шт.

3

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- special hardened

2шт.

4

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

HHCS - 1" - 8 NC x 3-1/2" (Rear mounting)

2шт.

5

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- special hardened

2шт.

6

25-1016

NUT,1"-8, G5

Rear mounting 1"-8, G5

2шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

10

L35864

INSULATION - headliner

1шт.

11

L35865

INSULATION - headliner

1шт.

Выбрано товаров: 12
