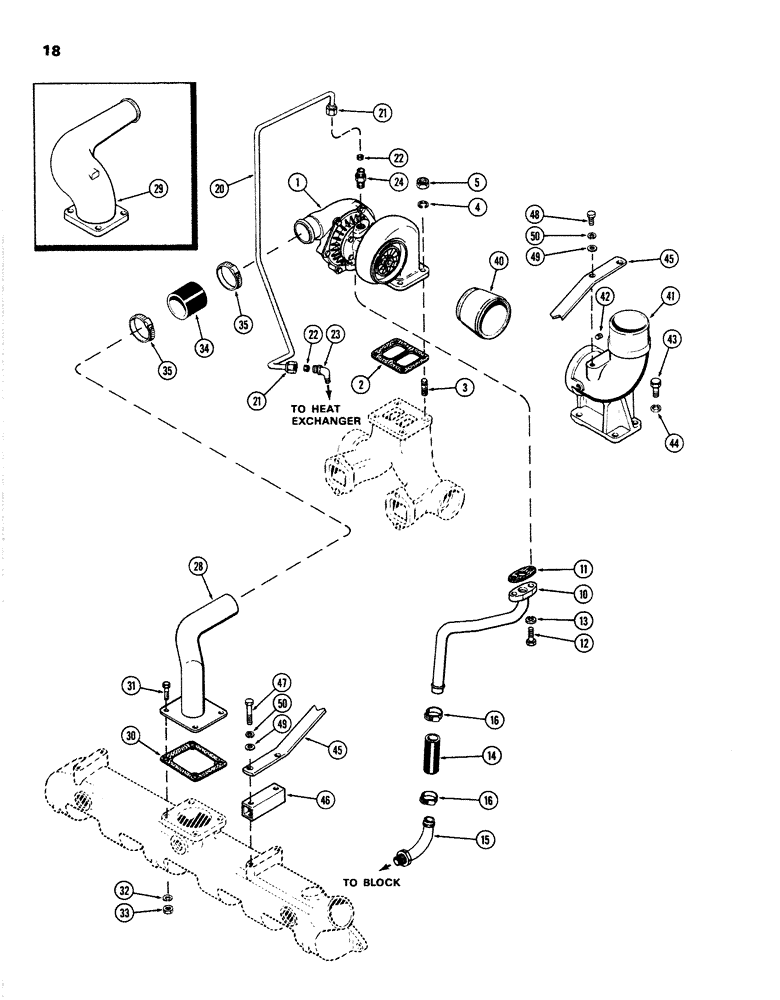

Запчасти Case W26B (018) - TURBO-CHARGER SYSTEM, (504BDT) DIESEL ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER ASSY. - (Standard) (Rebuilt)

1шт.

Do not use this part no. for ordering. This part no. is to be used in requesting return authority on used turbo-charger to be returned for credit.

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, Turbo-Charger Assy. (Standard)

1шт.

1

A45239

SPARE PART TURBO-CHARGER ASSY.- (Hi-Altitude) (Replaces A44665)

1шт.

Do not use this part no. for ordering. This part no. is to be used in requesting return authority on used turbo-charger to be returned for credit.

1шт.

1

A45240

SCREW

TURBO-CHARGER ASSY. - (Hi-Altitude) (Rebuilt) (Replaces A44666)

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-charger-manifold

1шт.

3

G11204

STUD

STUD - (3/8" N.C. x 1-7/16") (Replaced A29356)

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex. Seez-Pruf)

4шт.

10

A62518

TUBE

TUBE - oil drain, turbo-charger (Replaces A61666)

1шт.

11

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

14

A58893

HOSE

HOSE - drain tube (1/4" I.D. x 3-1/2")

1шт.

15

A58897

FITTING

FITTING -, Serial Range: hose-block

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

20

A64375

TUBE

TUBE ASSY. - oil supply (Replaces A62479 & A58905), Includes: Ref. 21 and 22

1шт.

21

222-114

NUT,5/8"-24

NUT - (for 3/8" tube)

2шт.

22

222-154

SLEEVE,3/8" Tube

SLEEVE - rubber (for ) 3/8" Tube

2шт.

23

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - oil tube to heat exchanger

1шт.

24

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - oil tube to turbo-charger

1шт.

28

A77242

ELBOW

ELBOW - turbo to manifold (formed) (1st used eng. ser. no. 2579516)

1шт.

29

A58903

ELBOW UNION

Union Elbow ELBOW - turbo to manifold (cast) (Used prior to eng. ser. no. 2579516)

1шт.

30

A58910

GASKET

GASKET - elbow

1шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - (used w/A77242 elbow) (3/8 x 1-1/2 N.C. hex)

4шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, (Used w/A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

32

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

NUT - (3/8" N.C. hex)

4шт.

34

A58894

HOSE

HOSE - intake elbow (2" I.D. x 2-3/8")

1шт.

35

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

40

A65554

TUBE

CONNECTOR - elbow to turbo (Replaced A58896)

1шт.

41

A61941

ELBOW

ELBOW - exhaust, turbo - charger

1шт.

42

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - elbow (1/4" P.T. sq. hd.)

1шт.

43

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, , Elbow Hex, 3/8"-16 x 1 3/4", G5

4шт.

44

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

45

A61944

BRACE

BRACE - elbow to intake manifold

1шт.

46

A67057

SPACER

SPACER - brace to intake manifold (Rpl. A61945)

1шт.

47

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Brace to manifold Hex, 3/8"-16 x 2 1/4", G5

2шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

49

95-6

WASHER,3/8"

WASHER - (7/16 x 1 x 5/64")

4шт.

50

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.
