Запчасти Case W26B (326) - ROLL-OVER PROTECTION CANOPY AND CAB BEFORE TRACTOR SN 9113537* (09) - CHASSIS

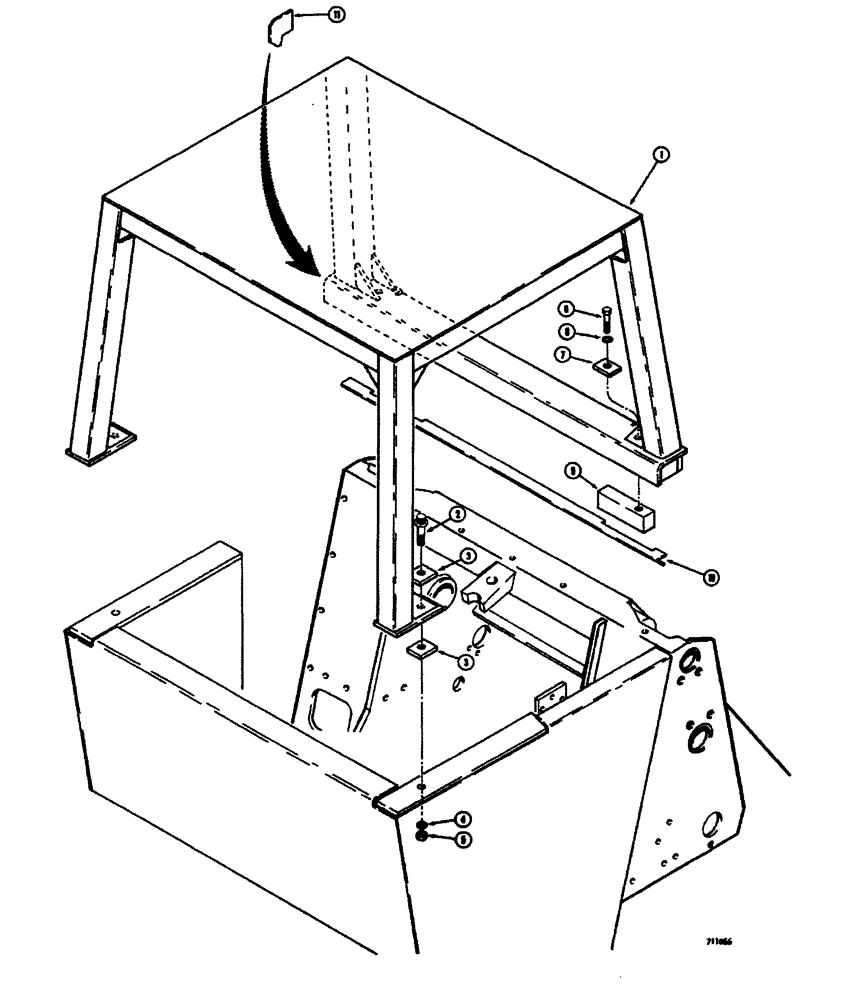

Схема запчастей Case W26B - (326) - ROLL-OVER PROTECTION CANOPY AND CAB BEFORE TRACTOR SN 9113537* (09) - CHASSIS
3
5
3
6
7
1
2
11
9
8
10
4

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ROPS CANOPY - rollover protection (See figure 2 for ordering)

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - operator's roll-over protection (Sims 1100-0235) Parts list figure 338. Not shown (See figure 2 for ordering)

1шт.

2

166-176

SCREW - flanged (1" - 8 NC x 3-1/4")

2шт.

3

L48944

WASHER - special

4шт.

4

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

5

129-110

NUT,1"-8, G5

2шт.

6

166-176

HHCS - 1" - 8 NC x 3-1/4"

2шт.

7

L48944

WASHER - special

2шт.

8

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

9

L48943

BLOCK - channel, front

2шт.

10

L50428

ANGLE - support

1шт.

11

L50429

PLATE - end, cover

1шт.

Выбрано товаров: 12
