Запчасти Case W26B (322) - CAB, HEATER, TURN SIGNALS AND FLASHERS EARLY PRODUCTION (09) - CHASSIS

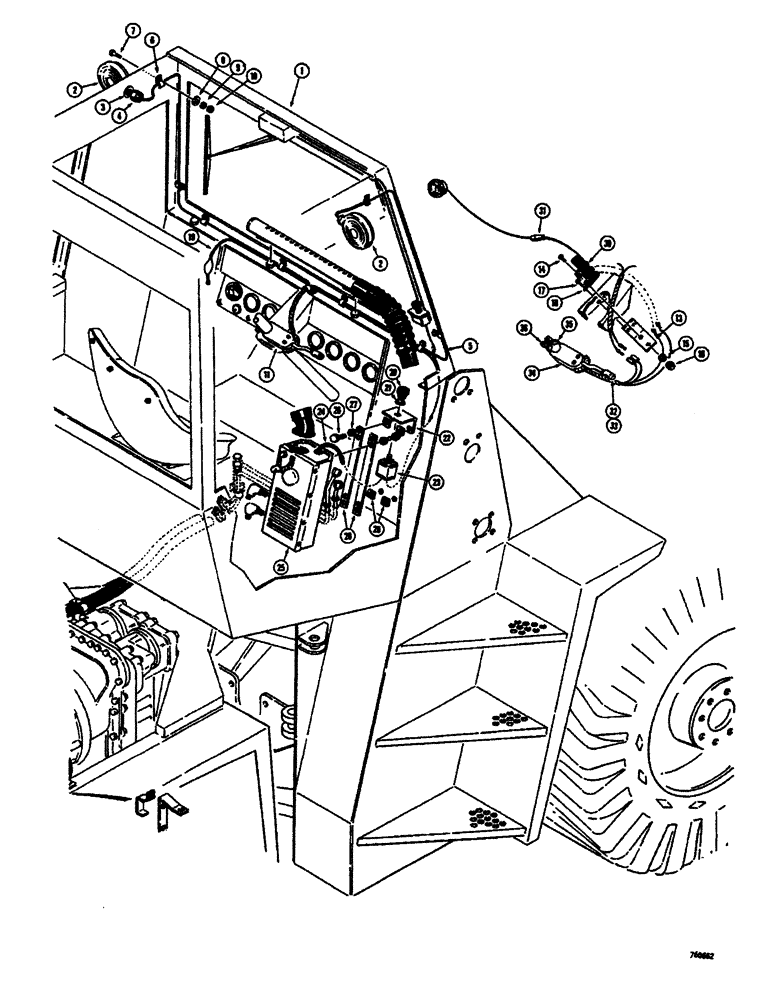

Схема запчастей Case W26B - (322) - CAB, HEATER, TURN SIGNALS AND FLASHERS EARLY PRODUCTION (09) - CHASSIS
32
22
24
9
5
28
2
15
11
13
25
34
27
1
33
21
30
10
31
4
26
3
2
18
36
19
16
29
29
17
6
35
23
7
8
14

Артикул

Название

Примечание

Количество

1

L46113

CAB ASSEMBLY - clear glass, mach. item - see figure 2 for ordering, Includes: Ref. 1A - 1C

1шт.

For all other cabs - see figures 326 thru 338

1шт.

1

L46114

CAB ASSEMBLY - tinted glass, mach. item - see figure 2 for ordering

1шт.

For all other cabs - see figures 326 thru 338

1шт.

1a

F93455

MOTOR, ELECTRIC

MOTOR - wiper, front windshield (Not shown)

1шт.

1b

L35260

ARM

- wiper, front windshield (Not shown)

1шт.

1c

L35261

BLADE

- wiper, front windshield (Not shown)

1шт.

2

L17324

LAMP

LIGHT - signal and flasher (Parts list figure 324)

2шт.

3

92-8

LOCK WASHER,1/2"

If used 1/2"

2шт.

4

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., lock (1/2" - 20 NF) If used

2шт.

5

L15331

HARNESS - signal switch to lamp, order L17325 and L17326 wire assembly listed on figure 324)

1шт.

6

A22880

CLIP

- wire

11шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

8

95-6

WASHER,3/8"

- standard wrot () 3/8"

6шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

25-104

NUT,1/4"-20, G5

6шт.

11

L15333

SWITCH - signal and flasher (Parts list below) Order L73667 signal and L73672 wire listed on figure 324)

1шт.

13

L15332

BRACKET - signal mounting (Used with L15333 flasher only)

1шт.

14

173-80

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

RHMS - #8 - 32 NC x 3/4" (Used with L15333 flasher only)

2шт.

15

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

16

129-16

NUT,#8-32

2шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Used with L15333 flasher only) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

L15330

HARNESS

- ammeter to switches (Cabs without rollover protection), Serial Range: -9107522

1шт.

19

L51832

HARNESS - ammeter to switches (Cabs with rollover protection), Serial Range: -9113537

1шт.

19

L50825

HARNESS

- ammeter to switches, with rollover protection, Start Serial: 9113537

1шт.

20

D53932

KNOB - heater switch

1шт.

19

L50825

HARNESS

- ammeter to switches, without rollover protection, Start Serial: 9107522

1шт.

21

A19945

NUT - special, heater switch

1шт.

22

L15349

BRACKET - heater switch mounting

1шт.

23

A12898

SWITCH

- heater

1шт.

24

L15347

WIRE -, Serial Range: switch-heater

1шт.

25

REF

INSTRUCTION

HEATER - cab (Parts list figure 318)

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

28

L15340

BAR - heater mounting

2шт.

29

L15336

SPACER - heater mounting

4шт.

L15333

SWITCH - signal and flasher, Includes: Ref. 30 - 36

1шт.

30

L32216

INDICATOR LIGHT

FLASHER - switch, L15333 signal

1шт.

31

223-6

FUSE,6 Amp, Type 3AG

- 6 amp., 3AG, L15333 signal and flasher switch

1шт.

32

L32215

O-RING

LENS - switch, green, L15333 signal and flasher

1шт.

33

A14928

BULB

- directional light, 24 volt (#356), L15333 signal and flasher switch

1шт.

34

NSS

NOT SOLD SEPARAT

SWITCH - signal, L15333 flasher

1шт.

35

L32217

STRAP - switch mounting, L15333 signal and flasher

1шт.

36

L32218

PACKET - mounting hardware, switch, L15333 signal and flasher

1шт.

Выбрано товаров: 45
