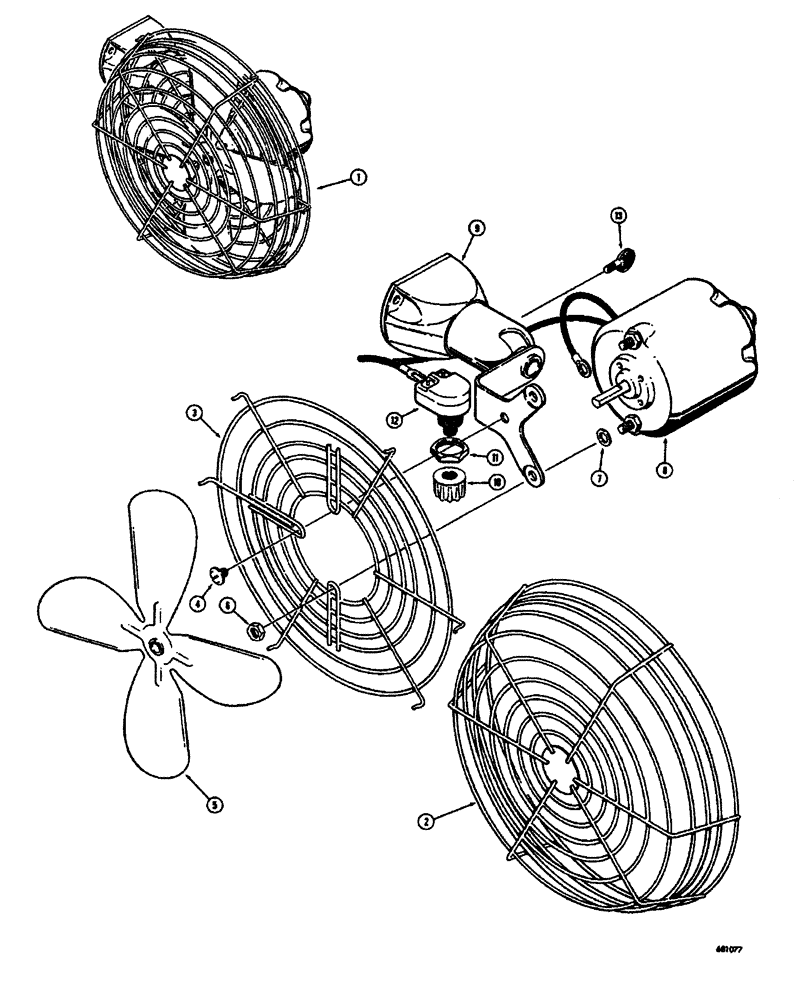

Запчасти Case W26B (316) - L48971 DEFROSTER FAN (09) - CHASSIS

1

L48971

FAN

- defroster, cab rear window, Includes: Ref. 2 - 13

1шт.

2

L30907

GUARD

GRILLE - fan, front

1шт.

3

L30904

GRILLE

- fan, back

1шт.

4

L30906

BOLT

- special

1шт.

5

L30902

FAN

BLADE ASSEMBLY - fan

1шт.

6

225-14208

NUT,#8-36

- hex. (#8 - 36 NF)

2шт.

7

L30905

WASHER

- special

2шт.

8

D54871

MOTOR

- fan, 24 volt

1шт.

9

L30900

BASE

- fan

1шт.

10

L30909

KNOB

- control

1шт.

11

L30908

NUT

- hex., special

1шт.

12

D54872

SWITCH

- control

1шт.

13

L30910

SCREW

THUMBSCREW - swivel (If used)

1шт.
