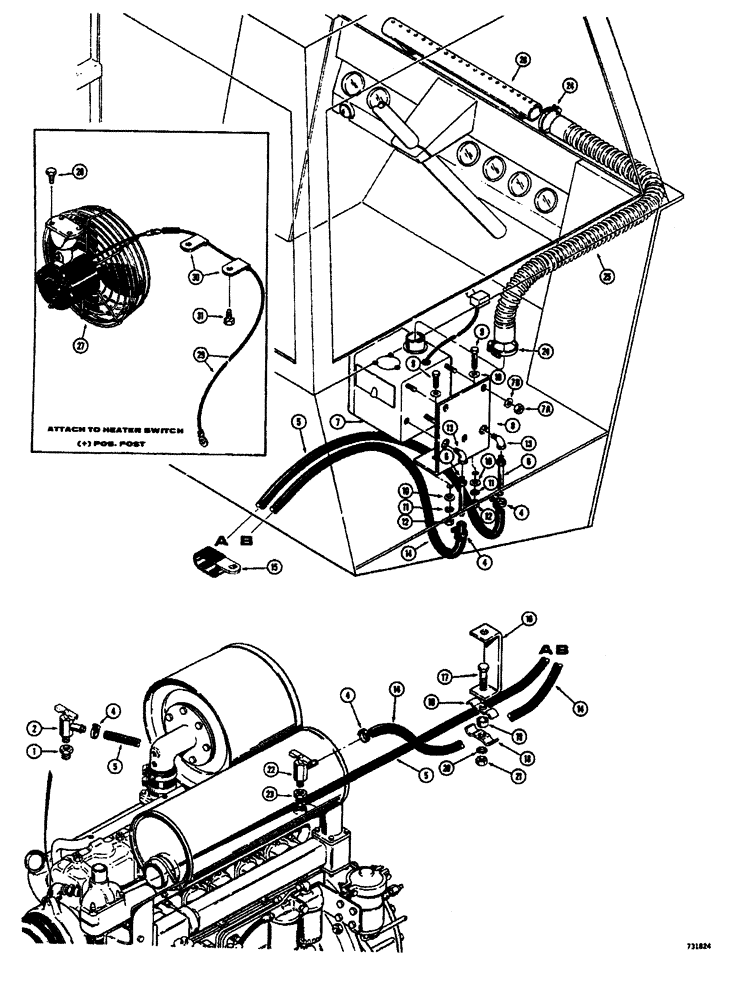

Запчасти Case W26B (314) - CAB HEATER AND DEFROSTER TRACTOR SN 9107522 AND AFTER (09) - CHASSIS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing (1/2" NPT to 3/8" NPT)

1шт.

2

A16764

VALVE

- water shut-off

1шт.

4

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

5

L50608

HOSE

- low pressure, water, Serial Range: pump-heater

1шт.

6

L50774

TUBE

- intake and return at heater

2шт.

7

REF

INSTRUCTION

HEATER ASSEMBLY - cab (Parts list figure 320)

1шт.

7a

129-122

NUT,5/16"-24, G5

Heater mounting 5/16"-24, G5

3шт.

7b

195-103

WASHER,5/16"

- plain (3/8") Zinc plated

3шт.

8

L50198

BRACKET - heater mounting

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

13

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 90 degrees

2шт.

14

L50778

HOSE

- low pressure, heater to water manifold (When stock is exhausted, order L52722 hose for service)

1шт.

14

L52722

HOSE ASSY.

HOSE - low pressure, heater to water manifold

1шт.

15

L50799

SHIN

CLAMP - hose retaining, at floor plate

1шт.

16

L50772

BRACKET - hose retaining, at front hood panel

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

R15257

CLAMP

- hose retaining

2шт.

19

D35217

BUSHING

SPACER - hose clamp

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

22

A16764

VALVE

- shutoff, water

1шт.

23

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing (1/2" NPT to 3/8" NPT)

1шт.

24

214-26

CLAMP

- hose defroster, models with tube

2шт.

25

L50773

HOSE

- heater to defroster, models with tube

1шт.

26

L15350

TUBE

- defroster (When stock is exhausted, order L15153 tube for service), models with tube

1шт.

26

L15163

DEFROSTER

TUBE - defroster, models with tube

1шт.

27

L48971

FAN

Models with defroster fan

1шт.

28

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - tapping, hex head (#8 - 32 NC x 1/2") Fan mounting, models with defroster

4шт.

29

L50066

WIRE - ignition switch to defroster fan, models with

1шт.

30

L18299

CLAMP

- wire support, models with defroster fan

2шт.

31

187-1509

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW - tapping, hex. head (#10 -24 NC x 5/8"), models with defroster fan

2шт.
