Запчасти Case W26B (306) - REAR FRAME GUARDS (09) - CHASSIS

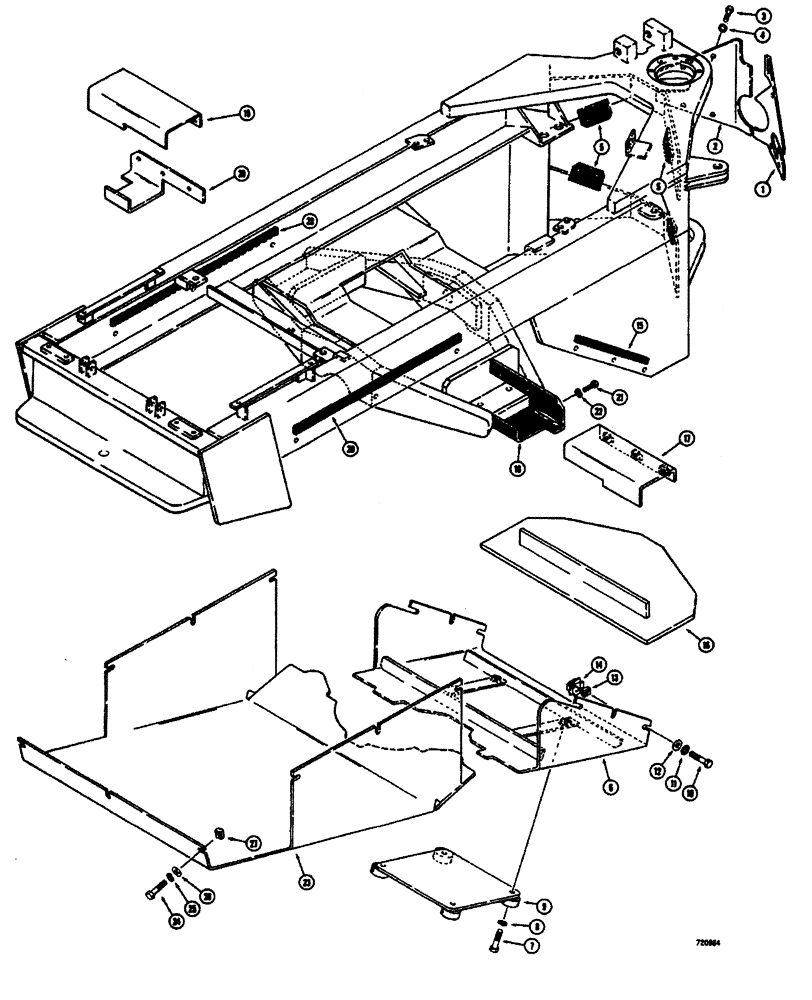

Схема запчастей Case W26B - (306) - REAR FRAME GUARDS (09) - CHASSIS
6
24
16
25
22
13
23
20
26
28
2
18
5
4
1
11
27
19
8
10
5
17
15
14
3
12
9
7
23
21

Артикул

Название

Примечание

Количество

1

L51058

GUARD - front of rear frame (R.H.)

1шт.

2

L51057

GUARD ASSY.

GUARD - front of rear frame (L.H.)

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

4

92-8

LOCK WASHER,1/2"

8шт.

6

L51454

PLATE - mounting, rear frame front guard

4шт.

L50779

GUARD ASSEMBLY - under carriage, rear frame, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

GUARD - under carriage, rear frame

1шт.

7

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

L50783

COVER - access, under carriage guard

1шт.

10

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

6шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special hardened

6шт.

13

25-2810

SQUARE NUT

- square, 5/8" - 11 NC

6шт.

14

D35240

CAGE

- 5/8" square nut

6шт.

15

L51256

BAR - shear, rear frame under carriage guard

2шт.

16

L50837

PLATE - under carriage, transmission

1шт.

17

L51129

GUARD - rear frame brake line, upper (R.H.)

1шт.

18

L51133

GUARD - rear frame brake line, lower (R.H.)

1шт.

19

L51130

GUARD - rear frame brake line, upper (L.H.)

1шт.

20

L51134

GUARD - rear frame brake line, lower (L.H.)

1шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

22

92-8

LOCK WASHER,1/2"

6шт.

23

L50731

GUARD - fuel tank under carriage

1шт.

24

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

9шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

26

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special hardened

9шт.

27

25-2810

SQUARE NUT

- square (5/8" - 11 NC)

9шт.

28

L51252

BAR - shear, fuel tank guard

2шт.

Выбрано товаров: 29
