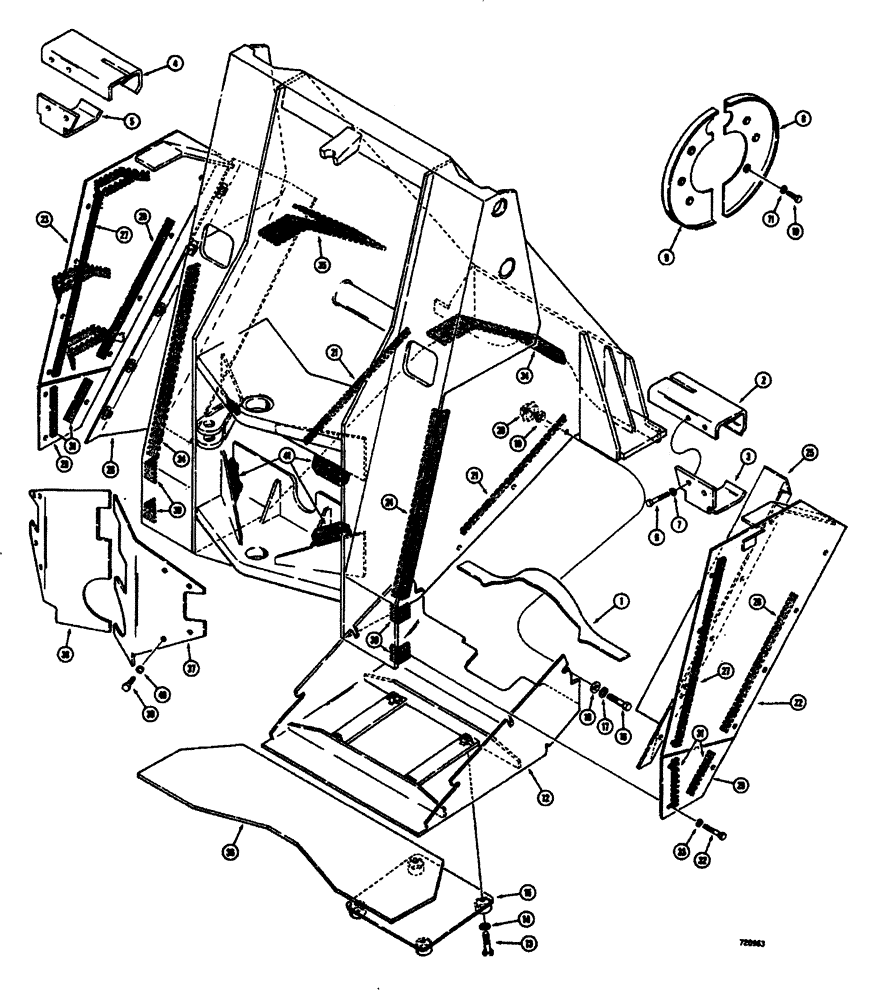

Запчасти Case W26B (304) - FRONT FRAME GUARDS (09) - CHASSIS

1

L50919

GUARD - front axle

1шт.

2

L51123

GUARD - front brake, upper (R.H.)

1шт.

3

L51127

GUARD - front brake, lower (R.H.)

1шт.

4

L51124

GUARD - front brake, upper (L.H.)

1шт.

5

L51128

GUARD - front brake, lower (L.H.)

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

L51120

GUARD

- front brake drum (L.H.) Before tractor sn. 9116343

2шт.

9

L51324

GUARD

- front brake drum (R.H.) Before tractor sn. 9116343

2шт.

8

L70349

GUARD

- front brake drum (L.H.) Tractor sn. 9116343 and after

2шт.

9

L70350

GUARD

- front brake drum (R.H.) Tractor Sn. 9116343 and after

2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

L50976

GUARD ASSEMBLY - under carriage, front frame, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

GUARD - under carriage, front frame

1шт.

13

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

L50783

COVER - access, front frame

1шт.

16

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

18

NLS

NO LONGER SERVICED

- special hardened

6шт.

19

25-2810

SQUARE NUT

- square - (5/8" - 11 NC)

6шт.

20

D35240

CAGE

- square nut (5/8")

6шт.

21

L51257

BAR - shear, front frame guard

2шт.

22

L50906

GUARD - side plate, upper front frame (R.H.)

1шт.

23

L50907

GUARD - side plate, upper front frame (L.H.)

1шт.

24

L50912

ANGLE - side plate, upper

2шт.

25

L50916

GUARD - cylinder, R.H.

1шт.

26

L50927

GUARD - cylinder, L.H.

1шт.

27

L51255

BAR - shear, side platae (Top rear)

2шт.

28

L51253

BAR - shear, cylinder guard (Top front)

2шт.

29

L50911

GUARD - side plate, lower front frame

2шт.

30

L50914

ANGLE - side plate, lower

4шт.

31

L51254

BAR - shear, lower side plate guard

4шт.

32

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

22шт.

33

92-8

LOCK WASHER,1/2"

22шт.

34

L50910

GUARD - cylinder, top plate (R.H.)

1шт.

35

L50926

GUARD - cylinder, top plate (L.H.)

1шт.

36

L50929

PLATE - under carriage

1шт.

37

L51054

GUARD - rear of front frame (R.H.)

1шт.

38

L51053

GUARD - rear of front frame (L.H.)

1шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

40

92-8

LOCK WASHER,1/2"

8шт.

41

L51454

PLATE - mounting, front frame rear guard

4шт.
