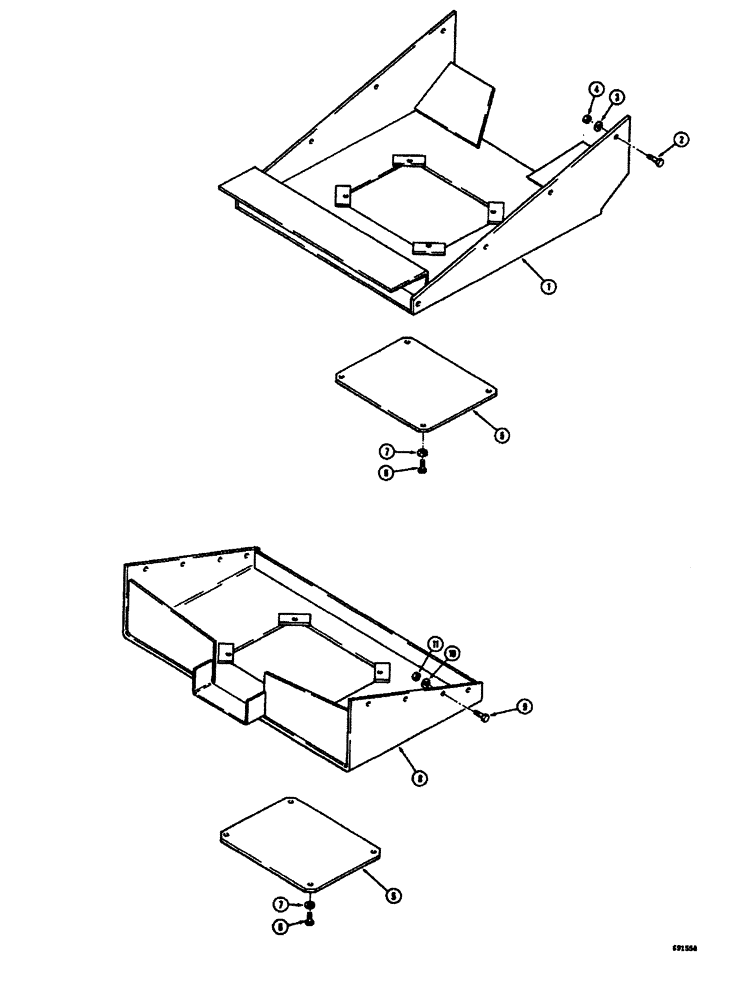

Запчасти Case W26B (302) - UNDERCARIAGE GUARDS FRONT AND REAR FRAME (09) - CHASSIS

1

L18437

GUARD - front frame, at axle

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

3

92-8

LOCK WASHER,1/2"

6шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

5

L18436

COVER - access, front and rear frame guards

2шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

L18432

GUARD - rear frame, at axle

1шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

10

92-8

LOCK WASHER,1/2"

6шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.
