Запчасти Case W26B (298) - FRONT FRAME AND FENDERS (09) - CHASSIS

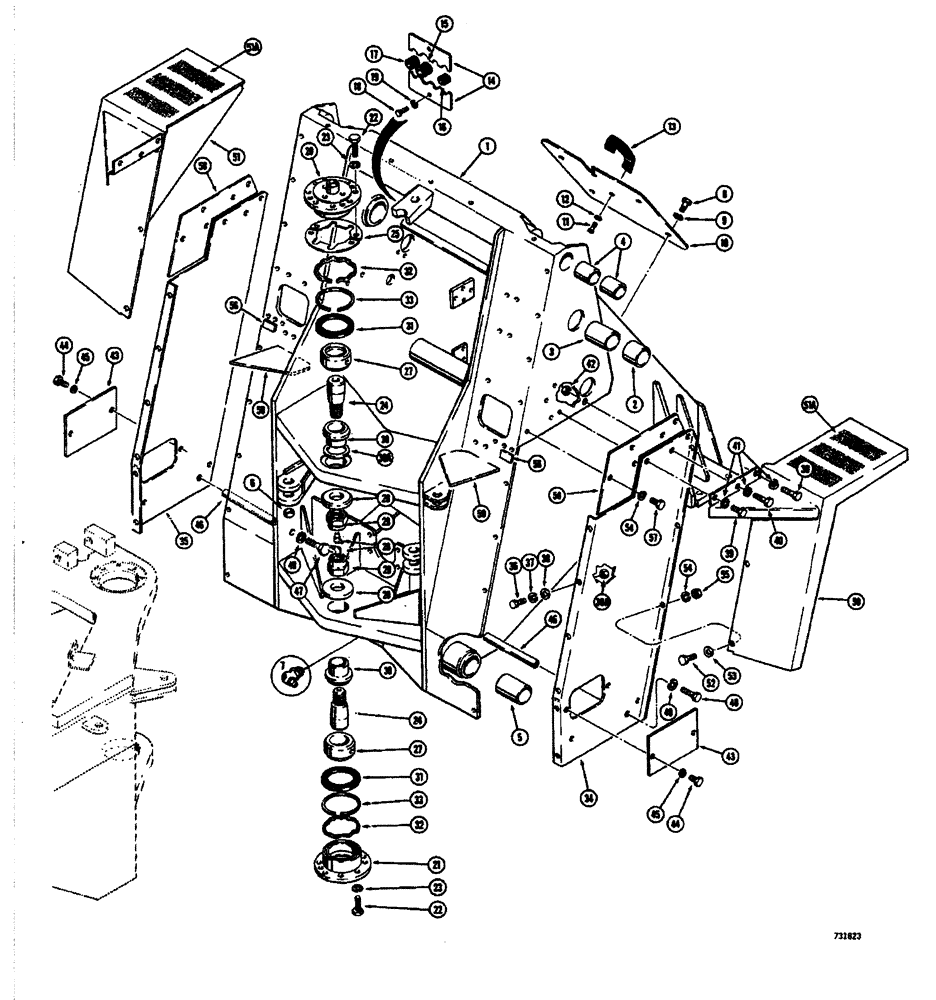

Схема запчастей Case W26B - (298) - FRONT FRAME AND FENDERS (09) - CHASSIS
25
13
59
27
41
14
9
15
44
22
34
45
40
37
5
2
20
12
46
51a
31
3
43
36
29
31
49
24
38
58
24
27
55
18
39
52
43
22
23
28
26
30
54
56
51a
57
33
28
51
42
8
19
47
49
23
44
32
4
35
56
32
39
17
21
45
59
30a
10
48
36
5
46
1
11
54
33
29
16
53
50
58

Артикул

Название

Примечание

Количество

1

L40298

FRAME ASSEMBLY - front, loader (Used befroe tractor Sn. 9113537), Includes: Ref. 2 - 6

1шт.

1

L54343

FRAME ASSEMBLY - front, loader (Used tractor Sn. 9113537 thru Sn. 9116328), Includes: Ref. 2 - 6

1шт.

1

L57451

FRAME ASSEMBLY - front, loader (Used tractor Sn. 9116328 and after), Includes: Ref. 2 - 6

1шт.

2

L12703

BUSHING

- lift arm pivot, outer

2шт.

3

L12702

BUSHING

- lift arm pivot, inner

2шт.

4

L12704

BUSHING

- tilt cylinder pivot

4шт.

5

L12308

BUSHING - lift cylinder pivot (Used in L54343 frame assembly only)

2шт.

5

L55841

BUSHING

- lift cylinder pivot (Used in L57451 frame assembly only)

2шт.

6

L12701

BUSHING

- steering cylinder bracket

4шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

L12769

COVER ASSY

COVER - chassis, front

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

A23725

HANDLE

- front cover

1шт.

14

L13763

PLATE ASSY.

PLATE - grommet, gauge hose

2шт.

15

L13764

GROMMET,7/16" ID x 11/16" Groove Dia

- rubber, wiring

1шт.

16

L13766

GROMMET

- rubber, clutch pressure hose

1шт.

17

L13765

GROMMET

- rubber, pump inlet pressure hose

2шт.

18

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

L12864

PIN

- pivot, frame (upper)

1шт.

21

L12863

PIN

- pivot, frame (Lower)

1шт.

22

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

16шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

24

L12869

PIN

- pivot, frame (Inner)

2шт.

25

L12865

SHIM

- pivot pin to frame, .0598" (1.51 mm)

1шт.

25

L12866

BLOCK

SHIM - pivot pin to frame, .0359" (0.91 mm)

1шт.

25

L12867

SHIM

- pivot pin to frame, .0149" (0.37 mm)

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

27

L12868

BEARING

- self - aligning

2шт.

28

L12871

WASHER

- pivot pin

2шт.

29

131-76

LOCK NUT,2"-12

NUT - hex., lock

2шт.

30

L12872

LOCK

- pivot, Serial Range: pin-chassis

2шт.

30a

L55793

SPACER

- center pivot

1шт.

31

L12875

SEAL

SEAL - dust

2шт.

32

L12873

SPRING

- dust seal

2шт.

33

L12874

RING

- back up, spring

2шт.

34

L40340

PANEL - front fender, R.H. (All models except rollover protection models), Serial Range: -9113537

1шт.

35

L40341

PANEL - front fender, L.H. (All models except rollover protection models), Serial Range: -9113537

1шт.

34

L48690

PANEL - front fender, R.H. (Models with rollover protection), Serial Range: -9113537

1шт.

35

L48691

PANEL - front fender, L.H. (Models with rollover protection), Serial Range: -9113537

1шт.

36

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

12шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

38

195-103

WASHER,5/16"

- plain () 5/16"

12шт.

38a

9635082

NUT,5/16" - 18, Gr 5

12шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

40

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

43

L12928

COVER - access

2шт.

44

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

45

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

46

L12932

BRACE - fender to front frame

2шт.

47

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Brace to front frame) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

48

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

(Brace to fender) Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

49

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

50

L40339

FENDER - front, R.H.

1шт.

51

L42615

FENDER - front, L.H.

1шт.

51a

A55582

PAD

- non-skid

6шт.

52

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

HHCS - 3/8" - 16 NC x 1"

6шт.

53

95-6

WASHER,3/8"

- plain () 3/8"

6шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

55

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

56

L12767

SUPPORT - operator compartment

2шт.

57

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

58

L13974

COVER - access, side (3 spool) Not shown

2шт.

58

L13973

COVER - access, side (2 spool)

1шт.

59

L53841

GUSSET - support, operator's compartment, If used

2шт.
