Запчасти Case W26B (294) - HOOD, REAR FENDER AND ENGINE SIDE PANELS (09) - CHASSIS

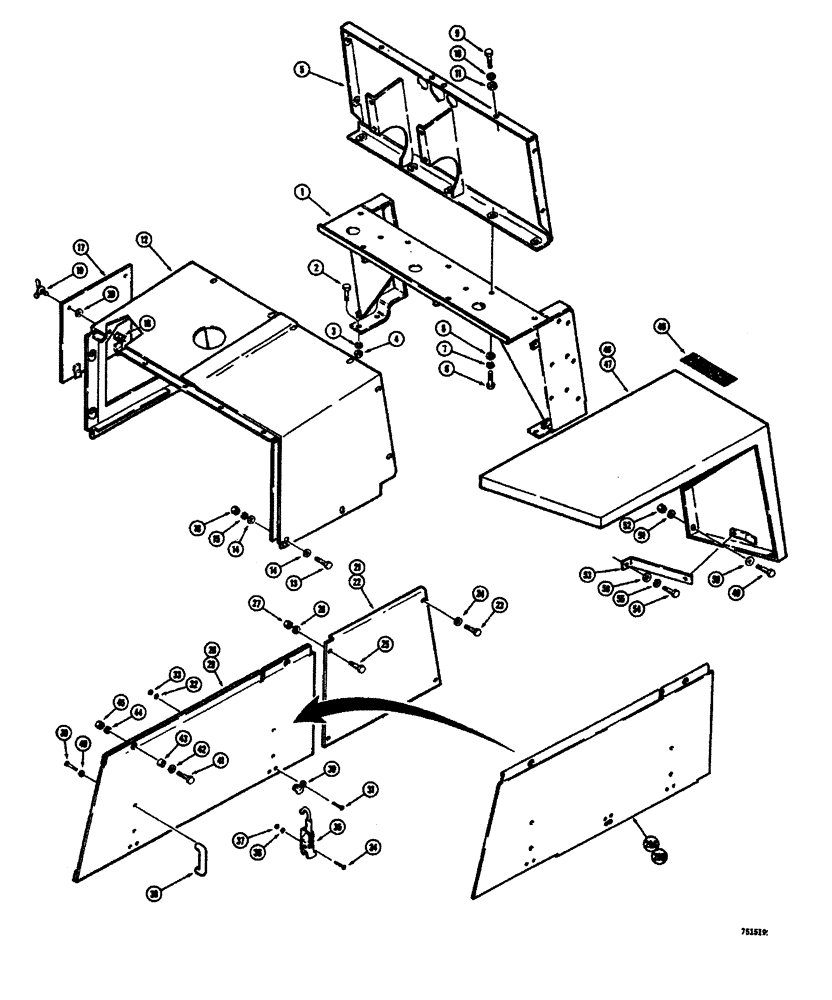

Схема запчастей Case W26B - (294) - HOOD, REAR FENDER AND ENGINE SIDE PANELS (09) - CHASSIS
29a
42
44
6
29
21
43
22
14
4
32
28
34
14
35
17
51
2
26
30
16
50
48
1
33
13
40
3
8
52
38
12
9
25
29b
36
7
31
23
39
46
24
37
47
19
56
41
55
27
54
18
10
53
49
15
45
20
5
11

Артикул

Название

Примечание

Количество

1

L73120

POST

SUPPORT - front, hood and front panel

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Front support to chassis) Hex, 1/2"-13 x 1 3/4", G5

4шт.

3

92-8

LOCK WASHER,1/2"

If used 1/2"

4шт.

4

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

4шт.

5

L45207

PANEL - front hood (Models with fuel pressure gauges)

1шт.

5

L52454

PANEL - front hood (Models without fuel pressure gauges)

1шт.

6

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Front hood panel to front support) Hex, 3/8"-16 x 7/8", G5, Full Thd

5шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

8

195-104

WASHER,3/8"

- plain () 3/8"

5шт.

9

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(Front hood to panel) Hex, 3/8"-16 x 1/2", G5, Full Thd

8шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

195-104

WASHER,3/8"

- plain () 3/8"

8шт.

12

L46554

HOOD - front

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Hood to side support) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

14

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

L40119

DOOR - access, air cleaner

1шт.

18

A36042

CLIP

RECEPTACLE - clip on

2шт.

19

L40220

FASTENER

- wing head, access, Serial Range: door-hood

2шт.

20

C10489

WASHER

RETAINER - receptacle

2шт.

21

L40188

PANEL - side, R.H. (Front) When stock is exhausted, order L52320 panel for service)

1шт.

21

L52320

PANEL - side, R.H. or L.H. (Front)

1шт.

22

L40189

PANEL - side, L.H. (Front) When stock is exhausted, order L52320 panel for service)

1шт.

22

L52320

PANEL - side, R.H. or L.H. (Front)

1шт.

23

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Panel to front support Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Panel to rear side support Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

27

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

28

L40357

PANEL

- side, L.H. (Rear) Models without lockup parts

1шт.

29

L40358

PANEL

- side, R.H. (Rear) Models without lockup parts

1шт.

29a

L71431

PANEL

- side, L.H. (Models with lockup parts)

1шт.

29b

L71430

PANEL

- side, R.H. (Models with lockup parts)

1шт.

30

A17237

HOOK

CATCH - side panel latch

4шт.

31

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 -24 NC x 1/2")

8шт.

32

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

33

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

8шт.

34

173-104

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- machine, round head (#10 -24 NC x 1-1/4")

8шт.

35

L10473

LATCH

- side panel hold down

4шт.

36

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

37

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

8шт.

38

A23725

HANDLE

- engine side panel

4шт.

39

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

41

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

42

195-26

WASHER

WASHER - plain (3/8")

4шт.

43

L16674

SLEEVE

- panel support

4шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

46

L40183

FENDER - rear, L.H.

1шт.

47

L40182

FENDER

- rear, R.H.

1шт.

48

A55582

PAD

- non-skid

14шт.

49

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

14шт.

50

195-104

WASHER,3/8"

- plain () 3/8"

14шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

52

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

53

L43997

BRACE -, Serial Range: fender-support

2шт.

54

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

55

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

56

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

Выбрано товаров: 61
