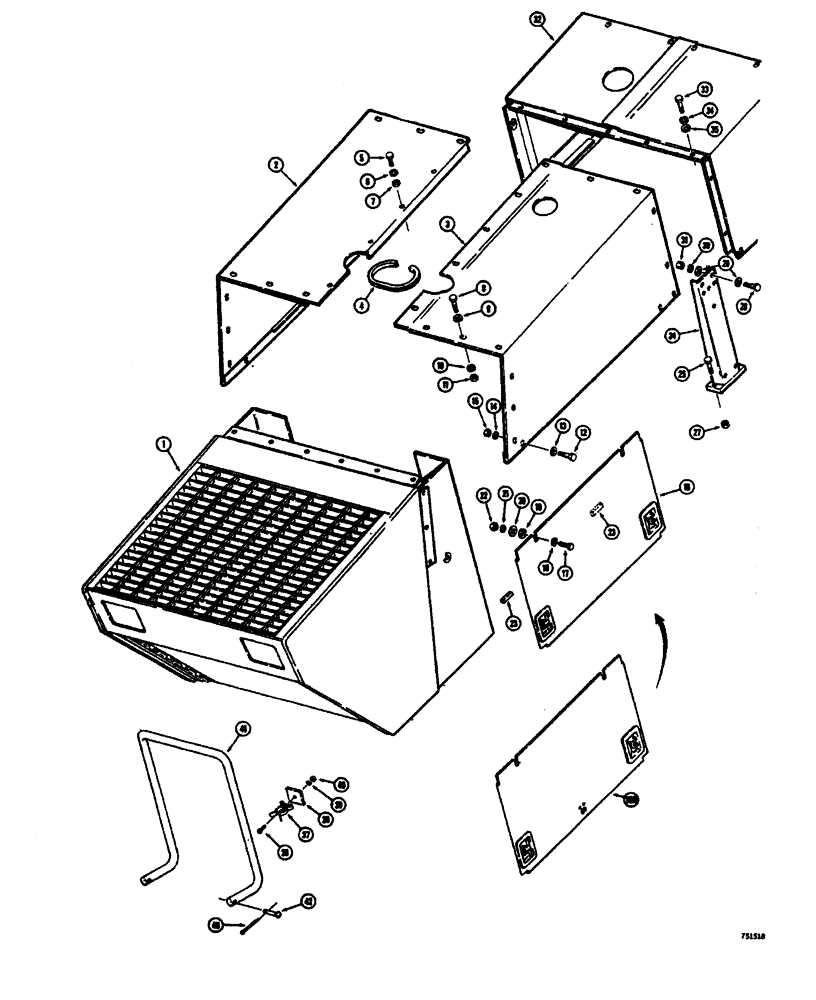

Запчасти Case W26B (292) - GRILLE AND HOOD (09) - CHASSIS

1

L50575

GUARD

- radiator (Models without lockup parts) See figure 66 for related parts

1шт.

1

L71703

GUARD

- radiator (Models with lockup parts) See figure 66 for related parts

1шт.

2

L50437

HOOD - rear, L.H.

1шт.

3

L50438

HOOD - rear, R.H.

1шт.

4

D35424

LINING

TRIM - quick edge, radiator cap access

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(L.H. hood to R.H. hood) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Hood to radiator guard) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

9

195-104

WASHER,3/8"

- standard wrot () 3/8"

12шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Hood to radiator guard) Hex, 3/8"-16 x 1 1/2", G5

2шт.

13

195-104

WASHER,3/8"

- standard wrot () 3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

L50446

PANEL

- side, engine (Models without lockup parts)

2шт.

16a

L71435

PANEL

- engine side (Models with lockup parts)

2шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Side panel mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

18

195-104

WASHER,3/8"

- standard wrot () 3/8"

4шт.

19

L16674

SLEEVE

- special

4шт.

20

195-528

WASHER,3/8"

- plain () 3/8"

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

L17989

STOP - bar, panel

4шт.

24

L50442

SUPPORT - hood and side panels

2шт.

25

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

27

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

NUT - hex., lock (1/2" - 13 NC)

4шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Rear hood to side supports) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

29

195-104

WASHER,3/8"

- standard wrot () 3/8"

4шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

32

L46554

HOOD - front (See figure 294 for complete mounting parts)

1шт.

33

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Front hood to RH and LH rear hoods) Hex, 3/8"-16 x 7/8", G5, Full Thd

9шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

35

195-104

WASHER,3/8"

- standard wrot () 3/8"

9шт.

36

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

RHMS - #10 - 24 NC x 1"

2шт.

37

L51606

CLAMP - access ladder

2шт.

37

L51606

CLAMP - access ladder

2шт.

38

L51607

TAB - ladder support

2шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

40

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

41

L50548

LADDER - access, grille compartment

1шт.

42

F62854

AXLE PIN

PIN - clevis, special

2шт.

43

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
