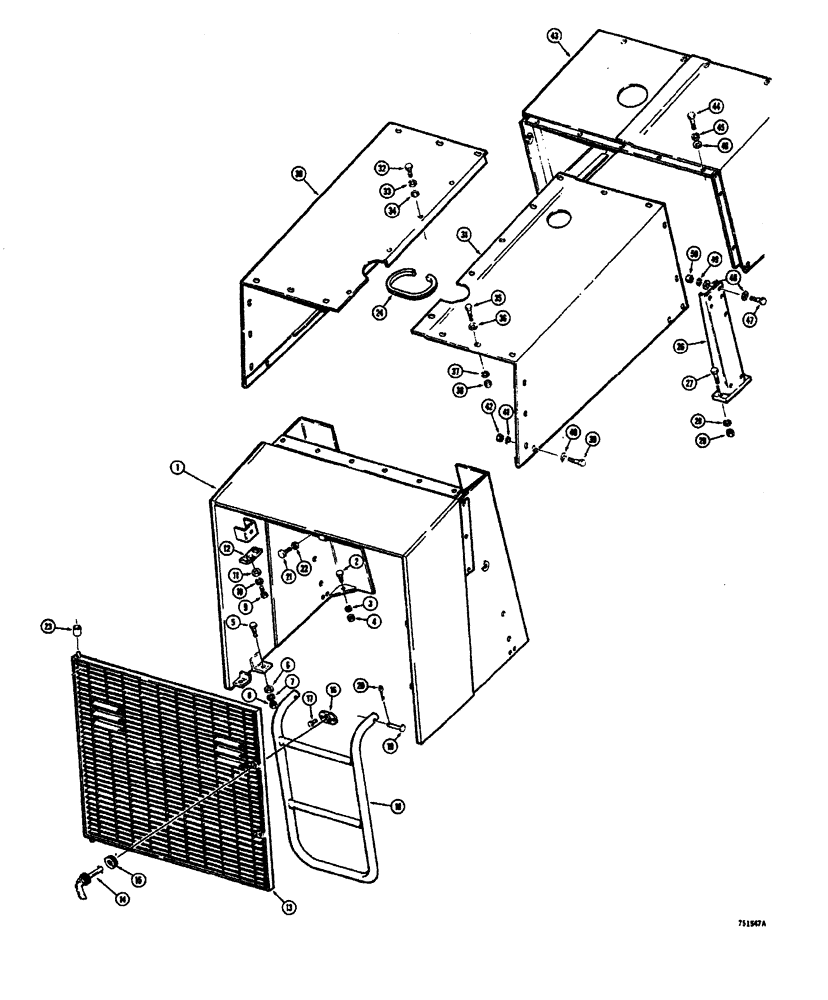

Запчасти Case W26B (290) - GRILLE AND HOOD TRACTOR SN. 9107521 AND AFTER (09) - CHASSIS

1

L50845

GUARD

- radiator, grille receptacle welded in place, order L73068 grille, (2) L48759 receptacle and

1шт.

1

L73068

GUARD

- radiator, grille receptacle riveted in place

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Front guard mounting) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Rear guard mounting) Hex, 5/8"-11 x 2", G5

2шт.

6

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1010

NUT,5/8"-11, G5

2шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

95-8

WASHER,1/2"

plain, If used 1/2"

2шт.

12

L45084

SUPPORT

- grille, upper

1шт.

13

L48273

GRILLE - radiator protecting

1шт.

14

L55533

RETAINER

- grille

2шт.

15

L48760

WASHER

- special, grille retainer

2шт.

16

L48759

CONNECTION,ELECTRIC

RECEPTACLE - grille

2шт.

17

151-535

RIVET,Pop, 1/8" x .462"

Receptacle mounting Pop, 1/8" x .462"

4шт.

18

L45612

LADDER - access, grille compartment

1шт.

19

F62854

AXLE PIN

PIN - clevis, special

2шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

21

L44155

BOLT - bumper, rubber (5/16" - 18 NC x 1-3/4")

1шт.

22

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. jam (5/16" - 18 NC)

1шт.

23

VB1054

SPACER - mounting

1шт.

24

D35424

LINING

TRIM - quick edge, radiator cap access

1шт.

26

L41271

SUPPORT - hood, side

2шт.

27

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

28

92-8

LOCK WASHER,1/2"

4шт.

29

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

30

L45228

WASHER

HOOD - rear, L.H.

1шт.

31

L45204

HOOD - rear, R.H.

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(R.H. hood to L.H. hood) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Hood to radiator guard) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

36

195-104

WASHER,3/8"

- plain () 3/8"

12шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

38

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - hex., lock (3/8" - 16 NC)

12шт.

39

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Hood to radiator guard) Hex, 3/8"-16 x 1 1/2", G5

2шт.

40

195-104

WASHER,3/8"

- plain () 3/8"

2шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

43

L46554

HOOD - front (See figure 294 for complete mounting parts)

1шт.

44

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

9шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

46

195-104

WASHER,3/8"

- plain () 3/8"

9шт.

47

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Rear hood to side supports) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

48

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
