Запчасти Case W26B (286) - GRILLE AND HOOD BEFORE TRACTOR SN 9107521 (09) - CHASSIS

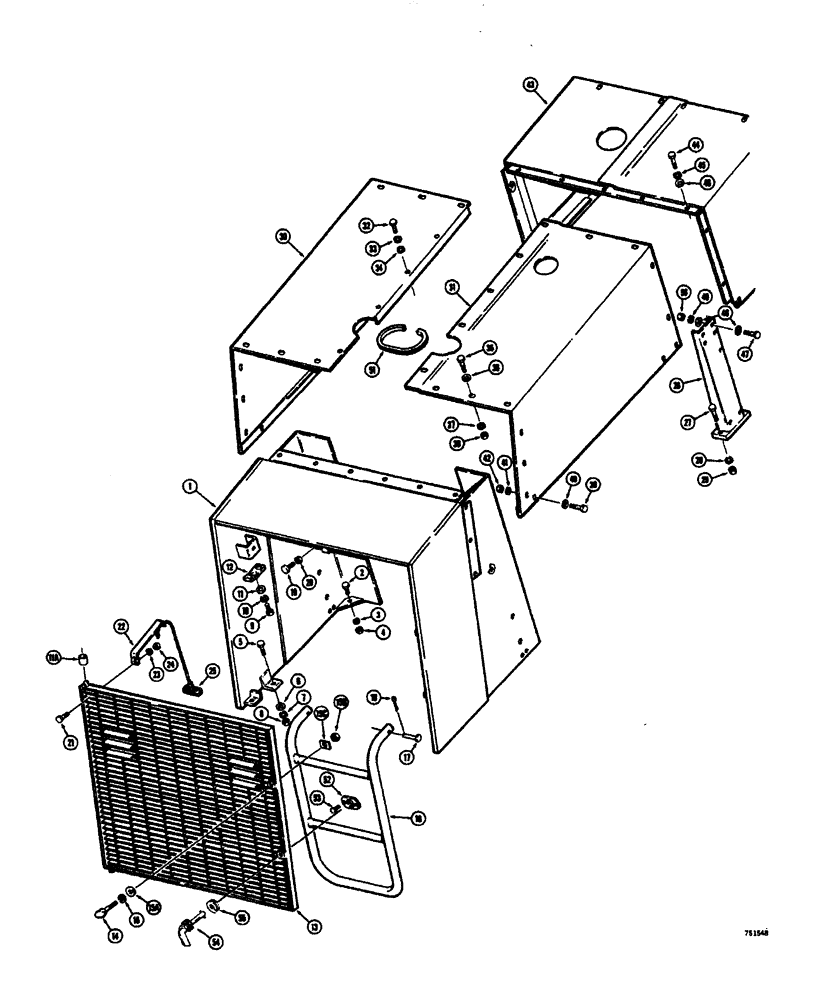

Схема запчастей Case W26B - (286) - GRILLE AND HOOD BEFORE TRACTOR SN 9107521 (09) - CHASSIS
9
20
51
26
22
37
40
40
27
30
4
54
13
32
38
31
11a
10
4
47
41
11
8
29
48
17
53
7
15a
3
24
5
6
1
12
33
46
43
16
5
23
52
50
14
35
18
19
25
55
21
4
14
15
2
42
28
36

Артикул

Название

Примечание

Количество

1

L44150

GUARD - radiator, used with items 14, 15, 15A, 15B, 15C, 21, 22, 23, 24 and 25)

1шт.

1

L50845

GUARD

- radiator, used with items 54 and 55, 52 is welded onto guard

1шт.

1

L73068

GUARD

- radiator, used with items 53, 54, and 55, 52 is riveted onto guard

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Front guard mounting) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Rear guard mounting) Hex, 5/8"-11 x 2", G5

2шт.

6

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1010

NUT,5/8"-11, G5

2шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

95-8

WASHER,1/2"

plain, If used 1/2"

2шт.

11a

VB1054

SPACER - mounting

1шт.

12

L45084

SUPPORT

- grille, upper

1шт.

13

L45090

GRILLE - radiator protecting, used with items 21, 22, 23, 24 and 25

1шт.

13

L48273

GRILLE - radiator protecting, used without items 21, 22, 23, 24 and 25

1шт.

14

183-127

SCREW - thumb (5/16" - 18 NC x 1-3/4") If used

2шт.

15

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

15a

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16") If used

4шт.

15b

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 18 NC) If used

2шт.

15c

L48039

SPARE PART

RETAINER - grille thumbscrew (If used)

2шт.

16

L45612

LADDER - access, grille compartment

1шт.

17

F62854

AXLE PIN

PIN - clevis, special

2шт.

18

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

19

L44155

BOLT - bumper, rubber (5/16" - 18 NC x 1-3/4")

1шт.

20

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16" - 18 NC)

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

22

L46018

LATCH - grille (If used)

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

24

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

2шт.

25

L46159

HANDLE AND ROPE - grille latch (If used)

1шт.

26

L41271

SUPPORT - hood, side

2шт.

27

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

28

92-8

LOCK WASHER,1/2"

If used 1/2"

4шт.

29

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

NUT - hex., lock (1/2" - 13 NC)

4шт.

30

L45228

WASHER

HOOD - rear, L.H.

1шт.

31

L45204

HOOD - rear, R.H.

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

R.H. hood to L.H. hood Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

34

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Hood to radiator guard) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

36

195-104

WASHER,3/8"

- plain () 3/8"

12шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

12шт.

38

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

12шт.

39

131-209

LOCK NUT,1 3/8"-12

HHCS - 3/8" - 16 NC x 1-1/2" (Hood to radiator guard)

2шт.

40

195-104

WASHER,3/8"

- plain () 3/8"

2шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

43

L46554

HOOD - front (See figure 294 for complete mounting parts)

1шт.

44

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Front hood to RH and LH rear hoods) Hex, 3/8"-16 x 7/8", G5, Full Thd

9шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

46

195-104

WASHER,3/8"

- plain () 3/8"

9шт.

47

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Rear hood to side supports) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

48

195-104

WASHER,3/8"

- plain () 3/8"

4шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

TRIM - quick edge, radiator cap opening

1шт.

52

L48759

CONNECTION,ELECTRIC

RECEPTACLE - 1/4 turn (If used)

2шт.

53

151-535

RIVET,Pop, 1/8" x .462"

Receptacle mounting (If used) Pop, 1/8" x .462"

4шт.

54

L55533

RETAINER

- grille (If used)

2шт.

55

L48760

WASHER

- grille (If used)

2шт.
