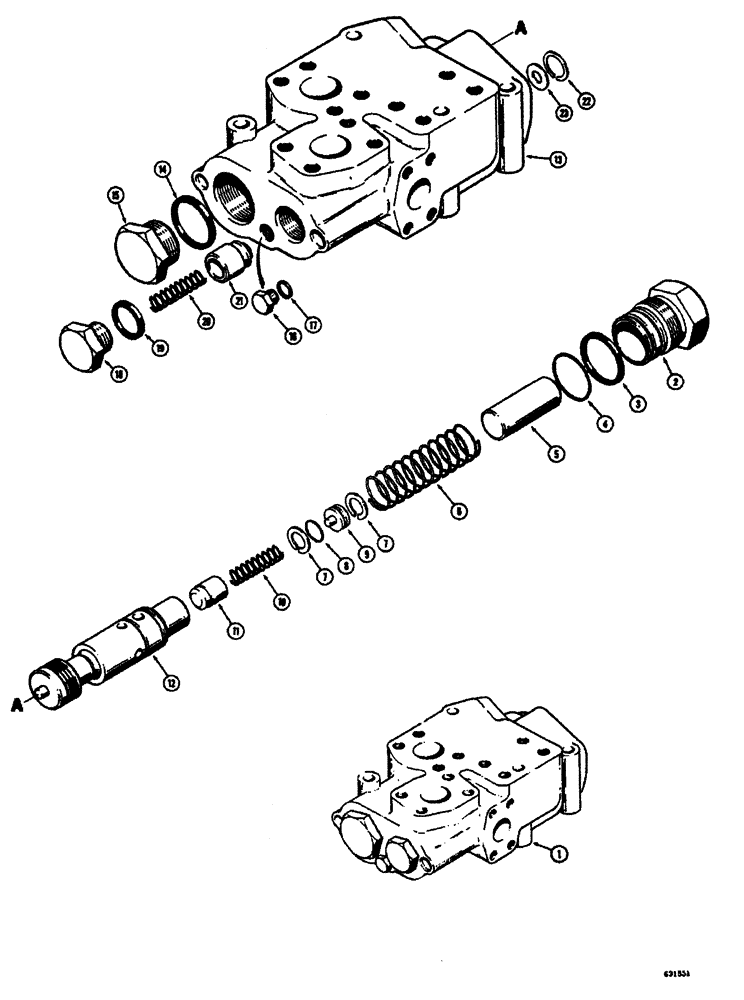

Запчасти Case W26B (462) - L41557 DEMAND VALVE (08) - HYDRAULICS

1

L41557

VALVE - demand, Includes: Ref. 2 - 23

1шт.

2

L32662

CAP - end, front (Spring retaining) 1-3/4" - 12 NF

1шт.

3

L32663

SEAL ASSY.

SEAL - "O" ring, outer (Cap)

1шт.

4

T39567

O-RING,1.489" ID x 1.629" OD x 0.07"

SEAL - "O" ring, inner (Cap)

1шт.

5

L32665

SPACER - spring

1шт.

6

L32664

VALVE SPRING

SPRING - spool retaining

1шт.

7

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, , plug 0.812", Int, #81

2шт.

8

L31756

O-RING,0.612" ID x 0.818" OD x 0.103"

SEAL - "O" ring, plug

1шт.

9

L32666

PLUG - spool end

1шт.

10

L32667

VALVE SPRING

SPRING - check valve

1шт.

11

L32278

PULLEY

VALVE - check

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - demand valve

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

14

L32663

SEAL ASSY.

SEAL - "O" ring, cap

1шт.

15

L32668

CAP - end, rear (Upper) 1-3/4" -12 NF

1шт.

16

L32672

PLUG - valve body, hex. head (9/16" - 18 NF)

1шт.

17

L32673

O-RING

SEAL - "O" ring, plug

1шт.

18

L32669

CAP - end, check valve (1-3/16" -12 NF)

1шт.

19

L32670

SEAL - "O" ring, cap

1шт.

20

L32667

VALVE SPRING

SPRING - check valve

1шт.

21

L32671

VALVE - check

1шт.

22

FH732719

SNAP RING

RING - retaining, orifice

1шт.

23

L32725

ORIFICE - demand valve

1шт.
