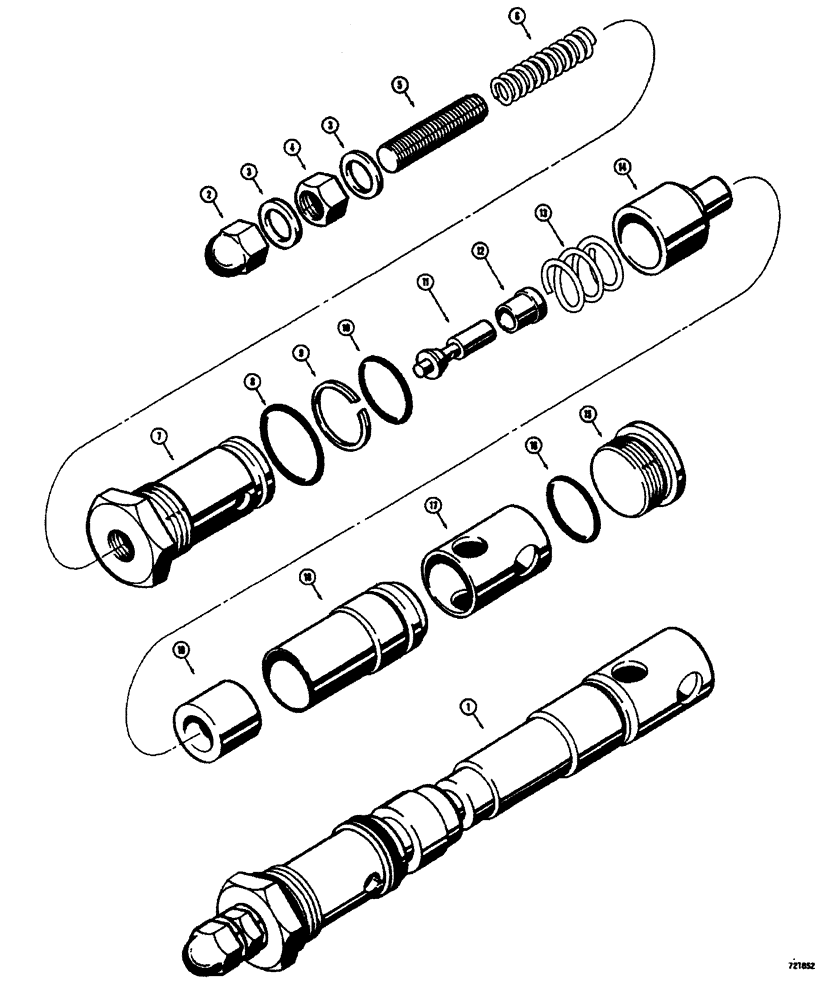

Запчасти Case W26B (460) - L52924 AND L52925 LOADER CONTORL VALVES L32005 MAIN RELIEF VALVE (08) - HYDRAULICS

1

L32005

LOCK VALVE

VALVE - main relief, Includes: Ref. 2 - 19

1шт.

2

129-542

NUT - acorn type (1/2" - 20 NF)

1шт.

3

A15569

SEAL - adjustng screw

2шт.

4

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF)

1шт.

5

L31326

SCREW - adjusting, main relief

1шт.

6

L31282

SPRING - plunger

1шт.

7

L31298

CYLINDER END CAP

CAP ASSEMBLY

1шт.

L32007

KIT

SEAL KIT - main felief valve, Includes: Ref. 8 - 10

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

9

A23553

RING

- backup

1шт.

10

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, small

1шт.

11

L31299

PLUNGER

- main relief valve

1шт.

12

L31281

SEAT

- main relief valve

1шт.

13

L31294

VALVE SPRING

SPRING - main relief valve

1шт.

14

L31293

PLUNGER

- main relief valve

1шт.

15

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 16

1шт.

16

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

L31297

SPACER - relief valve seat holder

1шт.

18

L31296

HOLDER - relief valve seat

1шт.

19

L31295

SEAT

- main relief valve

1шт.
