(458) - L52924 AND L52925 LOADER CONTROL VALVES L35459 CHECK VALVE

Запчасти Case W26B (458) - L52924 AND L52925 LOADER CONTROL VALVES L35459 CHECK VALVE (08) - HYDRAULICS

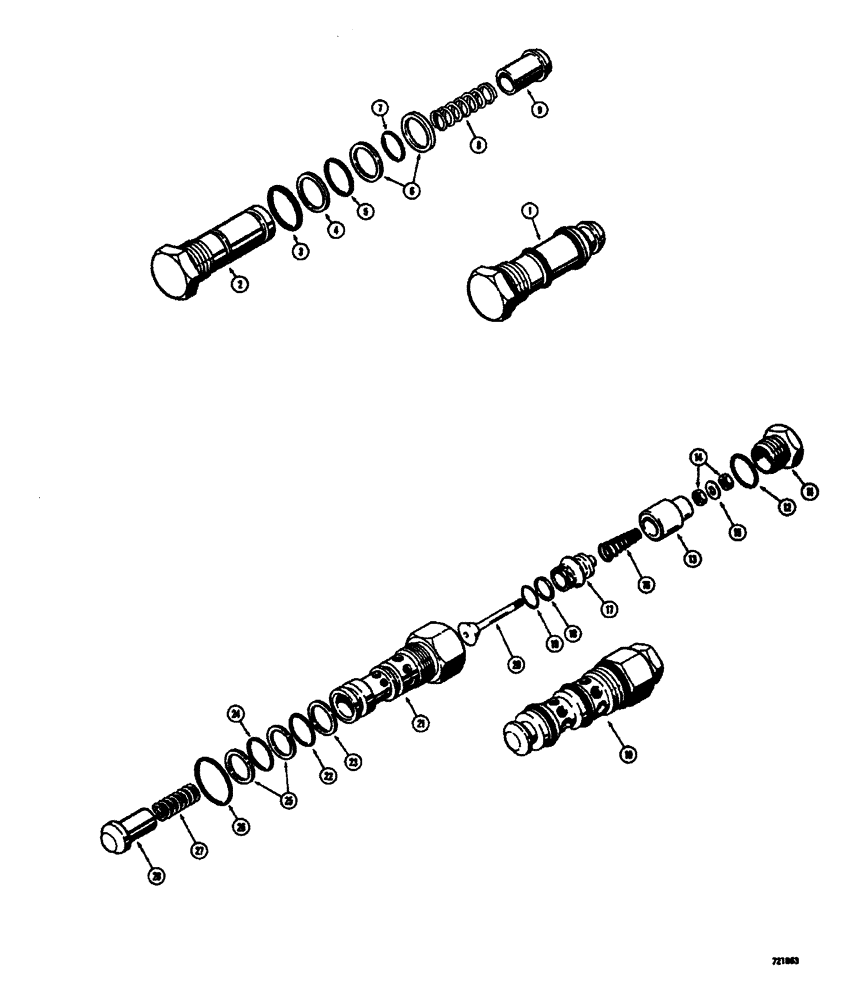

Схема запчастей Case W26B - (458) - L52924 AND L52925 LOADER CONTROL VALVES L35459 CHECK VALVE (08) - HYDRAULICS
6
12
18
2
22
21
27
16
23
28
14
5
17
7
19
11
24
10
20
4
1
13
26
9
8
3
25
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L35459

LOCK VALVE

VALVE - check, Includes: Ref. 2 - 9

1-2шт.

2

L31288

CAP - check valve

1шт.

L31319

SEAL ASSY.

SEAL KIT - check valve, Includes: Ref. 3 - 7

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, check valve

1шт.

4

L31332

BACK-UP RING

- backup, check valve

1шт.

5

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

SEAL - "O" ring, check valve

1шт.

6

A41161

WASHER

RING - backup, check valve

2шт.

7

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, check valve

1шт.

8

L31286

VALVE SPRING

SPRING - check valve

1шт.

9

L31289

VALVE POPPET

POPPET - check valve

1шт.

10

L35460

LOCK VALVE

VALVE - check, L35460 regeneration, Includes: Ref. 11 - 28

1шт.

11

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

L35460 regeneration check valve Hex Hd, 1 1/16"-12 ORB

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, plug, L35460 regeneration check valve

1шт.

13

L35462

GUIDE - poppet, L35460 regeneration check valve

1шт.

L35463

POPPET - assembled, L35460 regeneration check valve, Includes: Ref. 14 - 20

1шт.

14

129-27

NUT,Hex, #10 - 32

- hex., lock (#10 - 32 NF), L35460 regeneration check valve

2шт.

15

195-13

WASHER,#10

- plain (), L35460 regeneration check valve #10

1шт.

16

L35465

SPRING - poppet, L35460 regeneration check valve

1шт.

17

L35466

SEAT - poppet, L35460 regeneration check valve

1шт.

18

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, L35460 regeneration check valve

1шт.

19

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring, L35460 regeneration check valve

1шт.

20

L35467

POPPET - small, L35460 regeneration check valve

1шт.

21

L35464

CAP - L35460 regeneration check valve

1шт.

22

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

SEAL - "O" ring (center), L35460 regeneration check valve

1шт.

23

L31332

BACK-UP RING

- backup, L35460 regeneration check valve

1шт.

24

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring (inner) small, L35460 regeneration check valve

1шт.

25

A41161

WASHER

RING - backup, L35460 regeneration check valvef

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (outer) large, L35460 regeneration check valve

1шт.

27

L31286

VALVE SPRING

SPRING - poppet, L35460 regeneration check valve

1шт.

28

L31289

VALVE POPPET

POPPET - large, L35460 regeneration check valve

1шт.
