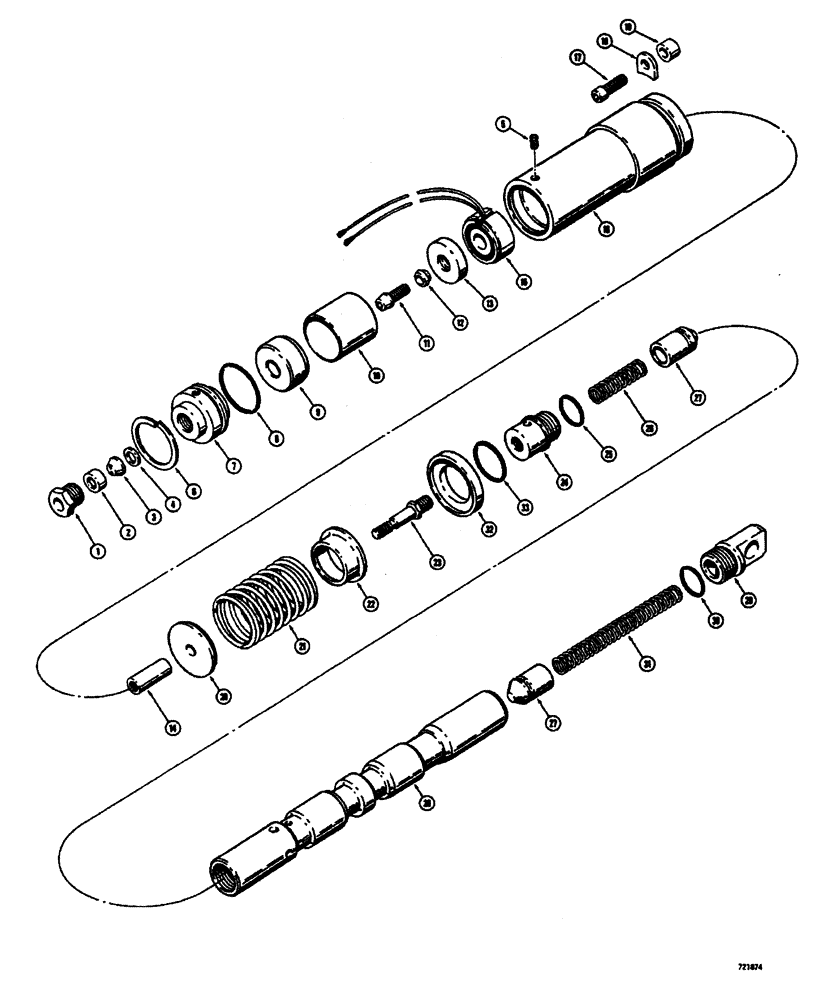

Запчасти Case W26B (454) - L52924 AND L52925 LOADER CONTROL VALVES DUMP SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L35425
DETENT
ASSEMBLY - magnetic, loader dump stool, Includes: Ref. 1 - 23
1шт.
1
L33773
PLUG
- end, detent housing
1шт.
2
L33772
RING
- clamp, magnetic detent
1шт.
3
L33771
SEAL
- detent lead
1шт.
4
L33770
WASHER
- seal
1шт.
5
178-415
SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt
- headless, hex socket (#10 -24 NC x 3/8")
1шт.
6
L33769
SNAP RING,#187, 1.960", Int, Spiral
RING - retaining, detent cap
1шт.
7
L33768
PLUG
CAP - detent
1шт.
8
A15528
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
SEAL - "O" ring, cap
1шт.
9
L33767
BUSHING
SPACER - dummy coil, magnetic detent
1шт.
10
L35426
SLEEVE - coil spacer
1шт.
11
D56450
SCREW
- special
1шт.
12
L33761
WASHER
SPACER - magnetic detent
1шт.
13
L35427
WASHER - clapper
1шт.
14
L35428
TUBE - spacer
1шт.
15
L33762
COIL
- magnetic detent
1шт.
16
L35429
HOUSING - magnetic detent
1шт.
17
61-516
HEX SOC SCREW,5/16"-18 x 1"
CAPSCREW - hex. socket head (5/16" - 18 NC x 1")
2шт.
18
L35433
CLAMP
RETAINER - washer, housing
2шт.
19
L35434
SPACER
- mounting, housing
2шт.
20
L35430
KIT
RETAINER - spring (Stepped washer)
1шт.
21
L35432
VALVE SPRING
SPRING - centering
1шт.
22
A15543
RETAINER
- spring (Cup type)
1шт.
23
L35431
STUD - magnetic detent
1шт.
L35418
SPOOL
ASSEMBLY - loader dump, Includes: Ref. 24 - 31
1шт.
24
L35423
PLUG - spool
1шт.
25
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
SEAL - "O" ring, spool plug
1шт.
26
L35422
VALVE SPRING
SPRING - poppet, spool plug end
1шт.
27
L35421
POPPET - check
2шт.
28
NSS
NOT SOLD SEPARAT
SPOOL - loader dump
1шт.
29
L35419
EYE - spool
1шт.
30
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
31
L35420
VALVE SPRING
SPRING - poppet, spool eye end
1шт.
32
A15556
RING, SNAP
RETAINER - seal, spool plug end
1шт.
33
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
SEAL - "O" ring, spool plug end
1шт.
Выбрано товаров: 35
