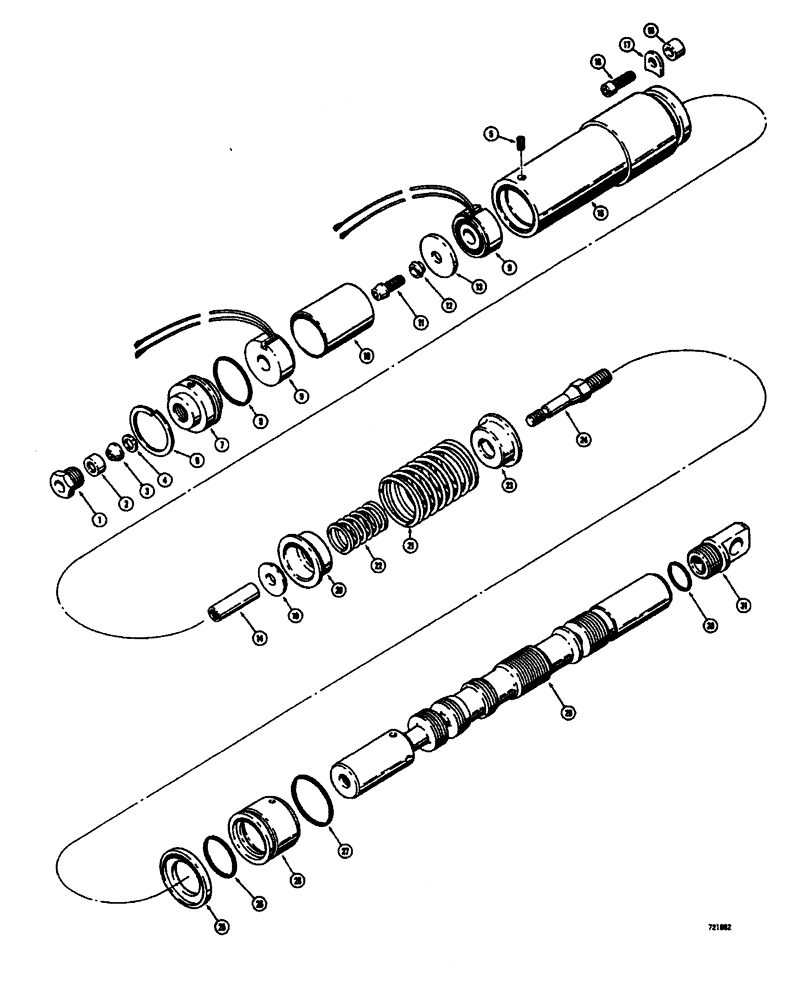

Запчасти Case W26B (452) - L52924 AND L52925 LOADER CONTROL VALVES LIFT SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L35443
DETENT
ASSEMBLY - magnetic, loader lift spool, Includes: Ref. 1 - 24
1шт.
1
L33773
PLUG
- end, detent housing
1шт.
2
L33772
RING
- clamp, magnetic detent
1шт.
3
L33782
SEAL
- detent lead
1шт.
4
L33770
WASHER
- seal
1шт.
5
178-415
SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt
- headless, hex. socket (#10 -24 NC x 3/8")
1шт.
6
L33769
SNAP RING,#187, 1.960", Int, Spiral
RING - retaining, detent cap
1шт.
7
L33768
PLUG
CAP - detent
1шт.
8
A15528
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
SEAL - "O" ring, cap
1шт.
9
L33762
COIL
AND CARRIER - magnetic detent
2шт.
10
L35444
SPACER
SLEEVE - coil spacer
1шт.
11
D56450
SCREW
- special
1шт.
12
L33764
SPACER
- magnetic detent
1шт.
13
L33763
WASHER
- clapper
1шт.
14
L35445
TUBE - spacer
1шт.
15
L35446
HOUSING - magnetic detent
1шт.
16
61-516
HEX SOC SCREW,5/16"-18 x 1"
CAPSCREW - hex. socket head (5/16" - 18 NC x 1")
2шт.
17
L35433
CLAMP
RETAINER - washer, housing
2шт.
18
L35434
SPACER
- mounting, housing
2шт.
19
L35447
WASHER - stepped, spring tension
1шт.
20
A15543
RETAINER
- centering spring, cup type (Outer)
1шт.
21
L35449
VALVE SPRING
SPRING - centering, large (Outer)
1шт.
22
L35448
VALVE SPRING
SPRING - tickle, small (Inner)
1шт.
23
A25579
RTAINER - spring, cup type (Inner)
1шт.
24
L35450
STUD
- detent
1шт.
25
A15556
RING, SNAP
RETAINER - seal, spool plug end
1шт.
26
A30915
O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro
SEAL - "O" ring, retainer (spool plug end)
1шт.
27
A17528
O-RING,1.737" ID x 1.943" OD x 0.103"
SEAL - "O" ring, sleeve (Spool plug end)
1шт.
28
L35437
SLEEVE - sealing, spool plug end
1шт.
L35435
SPOOL
ASSEMBLY - loader lift, Includes: Ref. 29 - 31
1шт.
29
NSS
NOT SOLD SEPARAT
SPOOL - loader lift
1шт.
30
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
SEAL - "O" ring, spool eye
1шт.
31
L35419
EYE - spool
1шт.
Выбрано товаров: 33
