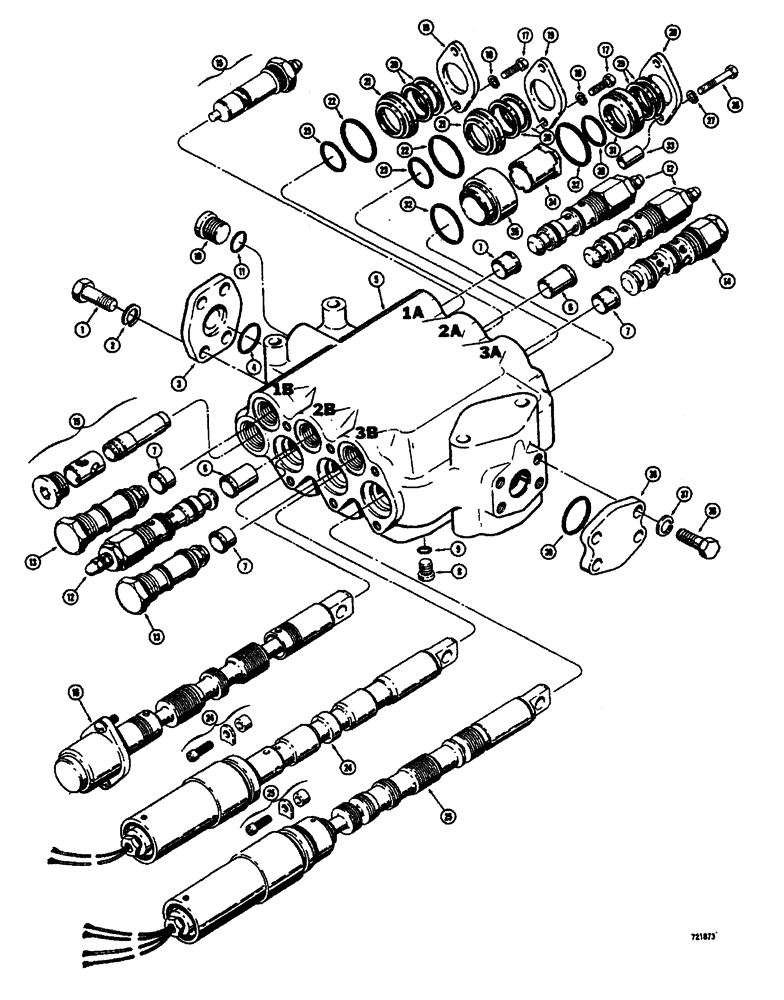

Запчасти Case W26B (450) - L52925 LOADER CONTROL VALVE (3 SPOOL) TRACTOR SN 9110116 AND AFTER (08) - HYDRAULICS

L52925

LOCK VALVE

VALVE ASSEMBLY - loader control, 3 spool, Includes: Ref. 1 - 39

1шт.

1

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

2

92-7

LOCK WASHER,7/16"

4шт.

3

L35417

COVER - flange, inlet end

1шт.

4

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, cover

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - valve, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

6

L31290

SLEEVE CYLINDER

SEAT - relief, long

2шт.

7

L35413

SEAT

- relief, short

4шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

- pipe, hex. socket head (7/16" - 20 NF), Incl Ref 9

1шт.

9

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

SEAL - "O" ring

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Pipe, Incl. Ref. 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

L35451

LOCK VALVE

VALVE ASSEMBLY - relief, secondary (Parts list figure 456)

3шт.

13

L35459

LOCK VALVE

VALVE ASSEMBLY - check (Parts list figure 458)

2шт.

14

L35460

LOCK VALVE

VALVE ASSEMBLY - check, regeneration (Parts list figure 458)

1шт.

15

L32005

LOCK VALVE

VALVE ASSEMBLY - main elief (Parts list figure 460)

1шт.

16

REF

INSTRUCTION

SPOOL ASSEMBLY - clam (Parts list figure 456)

1шт.

L32031

SEAL

SEAL ASSEMBLY - clam and tilt spools, eye end, Includes: Ref. 17 - 23

2шт.

17

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

A15546

RETAINER

- wiper

1шт.

20

A25584

WIPER

- spool

2шт.

21

L32169

RETAINER

- seal

1шт.

22

L32171

O-RING

SEAL - "O" ring (Large)

1шт.

23

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring (Small)

1шт.

24

REF

INSTRUCTION

SPOOL ASSEMBLY - tilt (Parts list figure 454)

1шт.

25

REF

INSTRUCTION

SPOOL ASSEMBLY - lift (Parts list figure 452)

1шт.

L35438

SEAL ASSY.

SEAL ASSEMBLY - lift spool, eye end, Includes: Ref. 26 - 35

1шт.

26

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

A15546

RETAINER

- wiper

1шт.

29

A25584

WIPER

- spool

2шт.

30

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring (Small)

1шт.

31

L35439

RETAINER - seal

1шт.

32

A15529

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

SEAL - "O" ring (Large)

2шт.

33

L35440

SPACER - seal

2шт.

34

L35442

EXTENSION - seal

1шт.

35

L35441

SLEEVE - seal

1шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

37

92-8

LOCK WASHER,1/2"

4шт.

38

A15534

COVER - flange, outlet end

1шт.

39

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring, cover

1шт.
