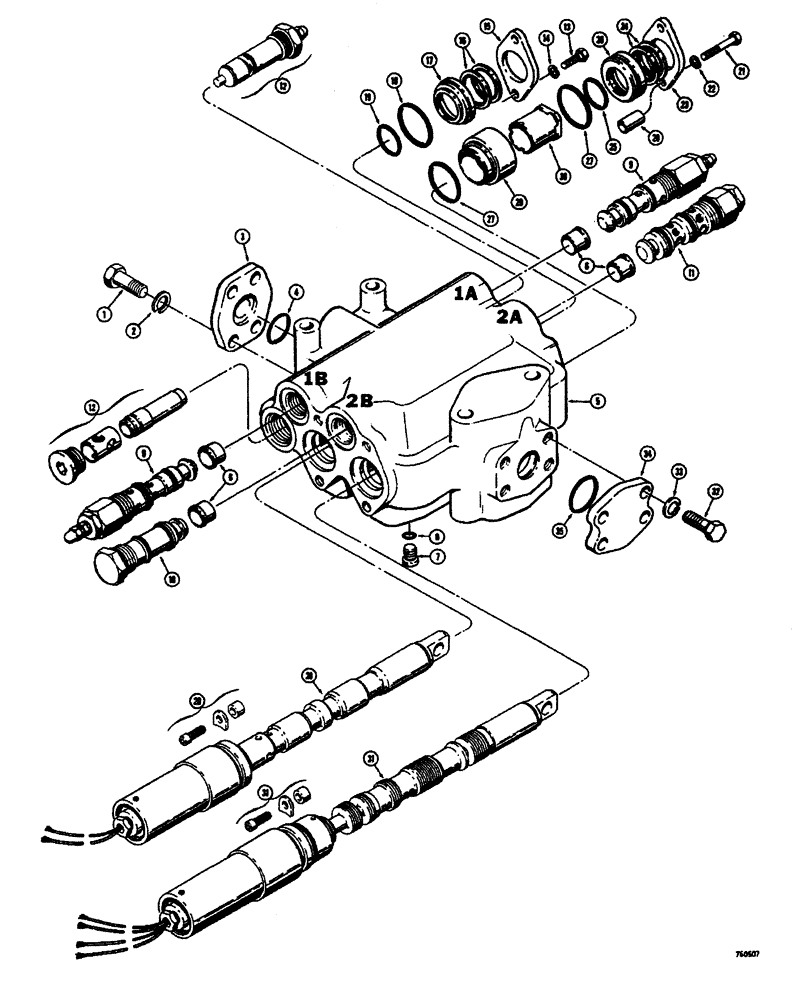

Запчасти Case W26B (448) - L52924 LOADER CONTORL VALVE (2 SPOOL) TRACTOR SN 9110116 AND AFTER (08) - HYDRAULICS

L52924

LOCK VALVE

VALVE ASSEMBLY - loader control, 2 spool, Includes: Ref. 1 - 35

1шт.

1

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

2

92-7

LOCK WASHER,7/16"

4шт.

3

L35417

COVER - flange, inlet end

1шт.

4

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, cover

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - valve, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

6

L35413

SEAT

- relief

4шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

- pipe, hex. socket head (7/16" - 20 NF), Incl Ref 8

1шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

9

L35451

LOCK VALVE

VALVE ASSEMBLY - relief, secondary (Parts list figure 456)

2шт.

10

L35459

LOCK VALVE

VALVE ASSEMBLY - check (Parts list figure 458)

1шт.

11

L35460

LOCK VALVE

VALVE ASSEMBLY - check, regeneration (Parts list figure 458)

1шт.

12

L32005

LOCK VALVE

VALVE ASSEMBLY - main relief (Parts list figure 460)

1шт.

L32031

SEAL

SEAL ASSEMBLY - tilt spool, eye end, Includes: Ref. 13 - 19

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

A15546

RETAINER

- wiper

1шт.

16

A25584

WIPER

- spool

2шт.

17

L32169

RETAINER

- seal

1шт.

18

L32171

O-RING

SEAL - "O" ring, large

1шт.

19

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

20

REF

INSTRUCTION

SPOOL ASSEMBLY - tilt (Parts list figure 454)

1шт.

L35438

SEAL ASSY.

SEAL ASSEMBLY - lift spool, eye end, Includes: Ref. 21 - 30

1шт.

21

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

A15546

RETAINER

- wiper

1шт.

24

A25584

WIPER

- spool

2шт.

25

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

26

L35439

RETAINER - seal

1шт.

27

A15529

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

SEAL - "O" ring, large

2шт.

28

L35440

SPACER - seal

2шт.

29

L35442

EXTENSION - seal

1шт.

30

L35441

SLEEVE - seal

1шт.

31

REF

INSTRUCTION

SPOOL ASSEMBLY - lift (Parts list figure 452)

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

A15534

COVER - flange, outlet end

1шт.

35

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring, cover

1шт.
