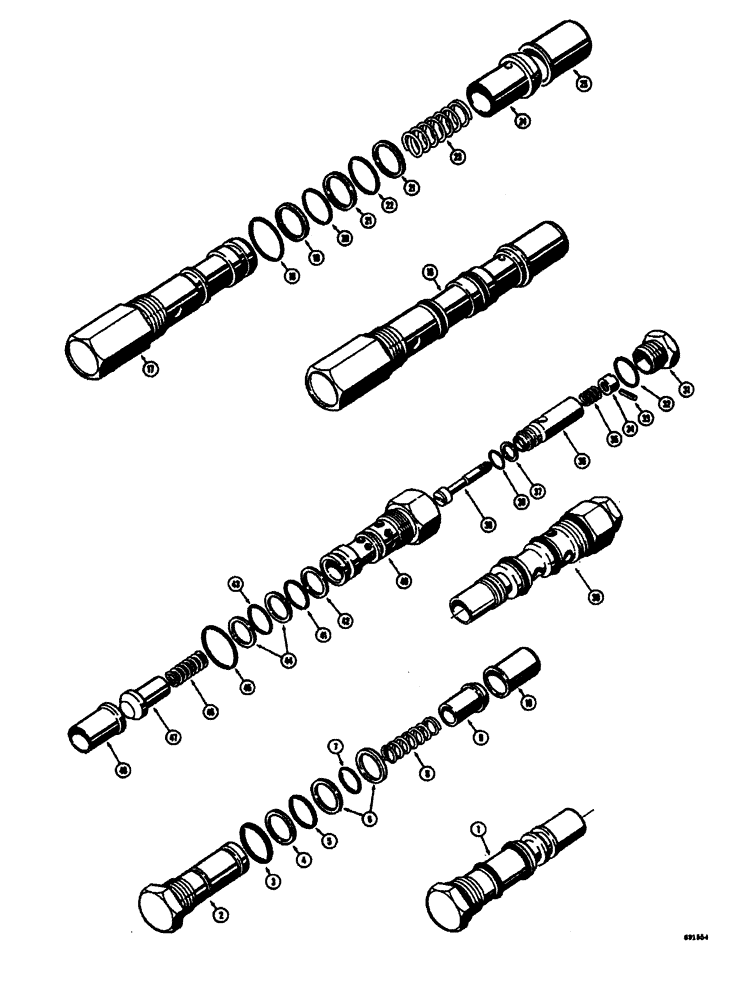

Запчасти Case W26B (446) - L46161 AND L46162 LOADER CONTROL VALVES CHECK VALVE (08) - HYDRAULICS

1

L32021

VALVE - check, Includes: Ref. 2 - 10

1-2шт.

2

L31288

CAP - check valve

1шт.

L31319

SEAL ASSY.

SEAL KIT - check valve, Includes: Ref. 3 - 7

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

L31332

BACK-UP RING

- backup

1шт.

5

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring

1шт.

6

A41161

WASHER

RING - backup

2шт.

7

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

8

L31286

VALVE SPRING

SPRING - check valve

1шт.

9

L31289

VALVE POPPET

POPPET - check valve

1шт.

10

L31290

SLEEVE CYLINDER

SEAT - check valve

1шт.

16

L32023

VALVE

ASSEMBLY - secondary relief, Includes: Ref. 17 - 25

2-3шт.

17

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - valve, secondary relief

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, valve cap (Outer), secondary relief

1шт.

19

L31332

BACK-UP RING

RNG - backup, center "O" ring seal, secondary relief valve

1шт.

20

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring, valve cap (Center), secondary relief

1шт.

21

A41161

WASHER

RING - backup, inner "O" ring seal, secondary relief valve

2шт.

22

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, valve cap (Inner), secondary relief

1шт.

23

L31286

VALVE SPRING

SPRING - secondary relief valve

1шт.

24

L31289

VALVE POPPET

POPPET - secondary relief valve

1шт.

25

L31290

SLEEVE CYLINDER

SEAT - secondary relief valve

1шт.

30

L32118

VALVE - check, regeneration, Includes: Ref. 31 - 48

1шт.

31

L32178

PLUG - regeneration check valve

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, plug, regeneration check valve

1шт.

33

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN - roll type, 5/64" dia. x 7/16", regeneration check valve

1шт.

34

L32165

NUT - special, regeneration check valve

1шт.

35

L32166

VALVE SPRING

SPRING - poppet, regeneration check valve

1шт.

36

L32167

SEAT - poppet, regeneration check valve

1шт.

37

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, regeneration check valve

1шт.

38

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring, regeneration check valve

1шт.

39

L32168

POPPET - small, regeneration check valve

1шт.

40

L32164

CAP - regeneration check valve

1шт.

41

A25590

O-RING,15" ID x 1 1" OD x 3/32"

SEAL - "O" ring (Center ), regeneration check valve

1шт.

42

L31332

BACK-UP RING

- backup, regeneration check valve

1шт.

43

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring (inner) small, regeneration check valve

1шт.

44

A41161

WASHER

RING - backup, regeneration check valve

2шт.

45

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (outer) large, regeneration check valve

1шт.

46

L31286

VALVE SPRING

SPRING - poppet, regeneration check valve

1шт.

47

L31289

VALVE POPPET

POPPET - large, regeneration check valve

1шт.

48

L31290

SLEEVE CYLINDER

SEAT - poppet, regeneration check valve

1шт.
