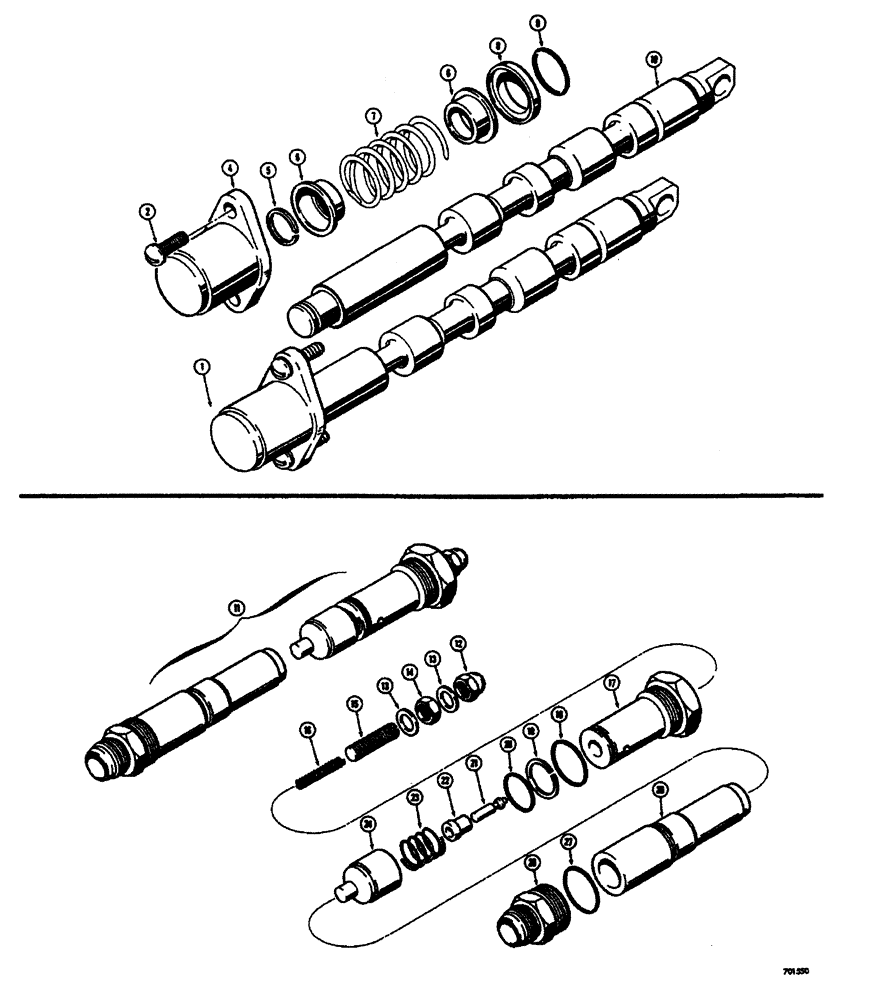

Запчасти Case W26B (444) - L46162 LOADER CONTROL VALVE BUCKET CLAM SPOOLS (08) - HYDRAULICS

1

L32301

SPOOL

ASSEMBLY - Drott clam (Color code black - letter code W) 1.3745" tol.3746" (34.912-34.914 mm) spool O.D., Includes: Ref. 2 - 10

1шт.

1

L32302

SPOOL

ASSEMBLY - Drott clam (Color code blue - letter code X) 1.3746" to 1.3747" (34.914-34.917 mm) spool O.D., Includes: Ref. 2 - 10

1шт.

1

L32303

SPOOL

ASSEMBLY - Drott clam (Color code yellow - letter code Y) 1.3747" to 1.3748" (34.917-34.919 mm) spool O.D., Includes: Ref. 2 - 10

1шт.

1

L32304

SPOOL

ASSEMBLY - Drott clam (color code green - letter code Z) 1/3748" to 1.3749" (34.919-34.92 mm) spool O.D., Includes: Ref. 2 - 10

1шт.

2

193-502

RHMS - 5/16" - 18 NC x 3/4"

2шт.

5

A15560

CAP - spool

1шт.

5

A15530

RING - centering spring retaining

1шт.

6

A15543

RETAINER

- spring

2шт.

7

A15544

SPRING - centering, spool return

1шт.

8

A15556

RING, SNAP

RETAINER - "O" ring

1шт.

9

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

11

L32872

LOCK VALVE

VALVE - main relief, L46161 and L46162 Loader control main relief, Includes: Ref. 12 - 27

1шт.

12

129-542

NUT - acorn type (1/2" - 20 NF), L46161 and L46162 Loader control valves main relief

1шт.

13

A15569

SEAL - adjusting screw, L46161 and L46162 Loader control valves main relief

2шт.

14

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF), L46161 and L46162 Loader control valves main relief

1шт.

15

A15568

SCREW - adjusting, main relief, L46161 and L46162 Loader control valves

1шт.

16

L31282

SPRING - plunger, L46161 and L46162 Loader control valves main relief

1шт.

L31298

CYLINDER END CAP

CAP ASSEMBLY, L46161 and L46162 Loader control valves main relief, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

CAP, L46161 and L46162 Loader control valves main relief

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, L46161 and L46162 Loader control valves main relief

1шт.

L32007

KIT

SEAL KIT - main relief valve, L46161 and L46162 Loader control, Includes: Ref. 18 - 20

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, large, L46161 and L46162 Loader control valves main relief

1шт.

19

A23553

RING

- backup, L46161 and L46162 Loader control valves main relief

1шт.

20

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, small, L46161 and L46162 Loader control valves main relief

1шт.

21

L31299

PLUNGER

- main relief valve, L46161 and L46162 Loader control

1шт.

22

L31281

SEAT

- main relief valve, L46161 and L46162 Loader control

1шт.

23

L31294

VALVE SPRING

SPRING - main relief valve, L46161 and L46162 Loader control

1шт.

24

L31293

PLUNGER

- main relief valve, L46161 and L46162 Loader control

1шт.

25

L32873

SEAT AND SLEEVE - main relief valve, L46161 and L46162 Loader control

1шт.

26

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR - relief valve outlet to return line, L46161 and L46162 Loader control main, Includes: Ref. 27

1шт.

27

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, L46161 and L46162 Loader control valves main relief

1шт.
