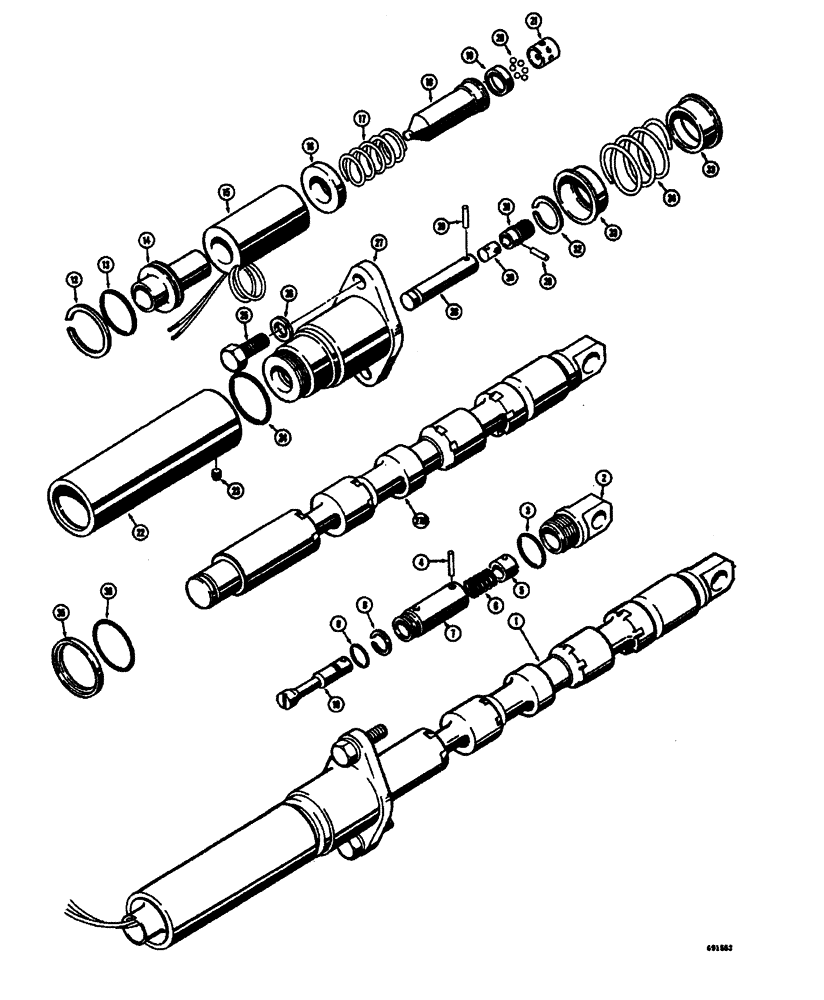

Запчасти Case W26B (442) - L46161 AND L46162 LOADER CONTROL VALVE TILT SPOOLS (08) - HYDRAULICS

1

L32305

SPOOL

ASSEMBLY - loader tilt (color code black - letter code W) 1.3746" (34.912-34.914 mm) spool O.D., Includes: Ref. 2 - 36

1шт.

1

L32306

SPOOL

ASSEMBLY - loader tilt (Color code blue - letter code X) 1.3747" to 1.3747" (34.914-34.917 mm) spool O.D., Includes: Ref. 2 - 36

1шт.

1

L32307

SPOOL

ASSEMBLY - loader tilt (Color code yellow - letter code Y) 1.3747"" to 1.3748"" (34.917-34919 mm) spool O.D., Includes: Ref. 2 - 36

1шт.

L32308

COIL ASSY.

SPOOL ASSEMBLY - loader tilt (Color code green - letter code Z) 1.3748"" to 1.3749"" (34.919-34.92 mm) spool O.D., Includes: Ref. 2 - 36

1шт.

L32740

KIT

CHECK ASSEMBLY - makeup, Includes: Ref. 2 - 10

1шт.

2

L32163

EYE - spool

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

L32741

VALVE POPPET

POPPET ASSEMBLY - makeup, Includes: Ref. 4 - 7

1шт.

4

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN - roll type, 5/64" dia. x 7/16"

1шт.

5

L32165

NUT - special

1шт.

6

L32166

VALVE SPRING

SPRING - poppet

1шт.

7

L32167

SEAT - poppet

1шт.

8

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup

1шт.

9

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring

1шт.

10

L32168

POPPET - spool

1шт.

12

L30654

RING, SNAP

RING - plunger stop retainer

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, plunger stop at housing

1шт.

14

L31307

STOP

- solenoid plunger

1шт.

15

L31316

COIL ASSY.

COIL - solenoid

1шт.

16

L31305

WASHER

- spring retaining

1шт.

17

L31308

SPRING

- detent

1шт.

18

L31306

PLUNGER

- solenoid

1шт.

19

L30647

CAM

- detent

1шт.

20

211-5

BALL,3/16" Dia

- detent, . 3/16" Dia

6шт.

21

L30645

RETAINER

RETAINING - ball

1шт.

22

L31304

HOUSING

- solenoid

1шт.

23

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex. socket head (1/4" - 20 NC x 1/4")

1шт.

24

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

L31309

HOUSING - stud and centering spring

1шт.

L32732

SPOOL

KIT - L32305 spool assembly, Includes: Ref. 27A - 36

1шт.

L32733

KIT

SPOOL KIT - L32306 spool assembly, Includes: Ref. 27A - 36

1шт.

L32734

KIT

SPOOL KIT - L32307 spool assembly, Includes: Ref. 27A - 36

1шт.

L32735

KIT

SPOOL KIT - L32308 spool assembly, Includes: Ref. 27A - 36

1шт.

27a

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

28

L32010

BARREL - stud

1шт.

29

138-2012

PIN,1/8" x 1/2", Coiled

Barrel to link 1/8" x 1/2", Coiled

2шт.

30

L32012

LINK -, Serial Range: barrel-spool

1шт.

31

NSS

NOT SOLD SEPARAT

PLUG -, Serial Range: spool-link

1шт.

32

A15530

RING - sprng retainer retaining

1шт.

33

A15543

RETAINER

- spring

2шт.

34

L32753

VALVE SPRING

SPRING - centerng, plunger return

1шт.

35

L32162

RETAINER

- "O" ring

1шт.

36

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring

1шт.
