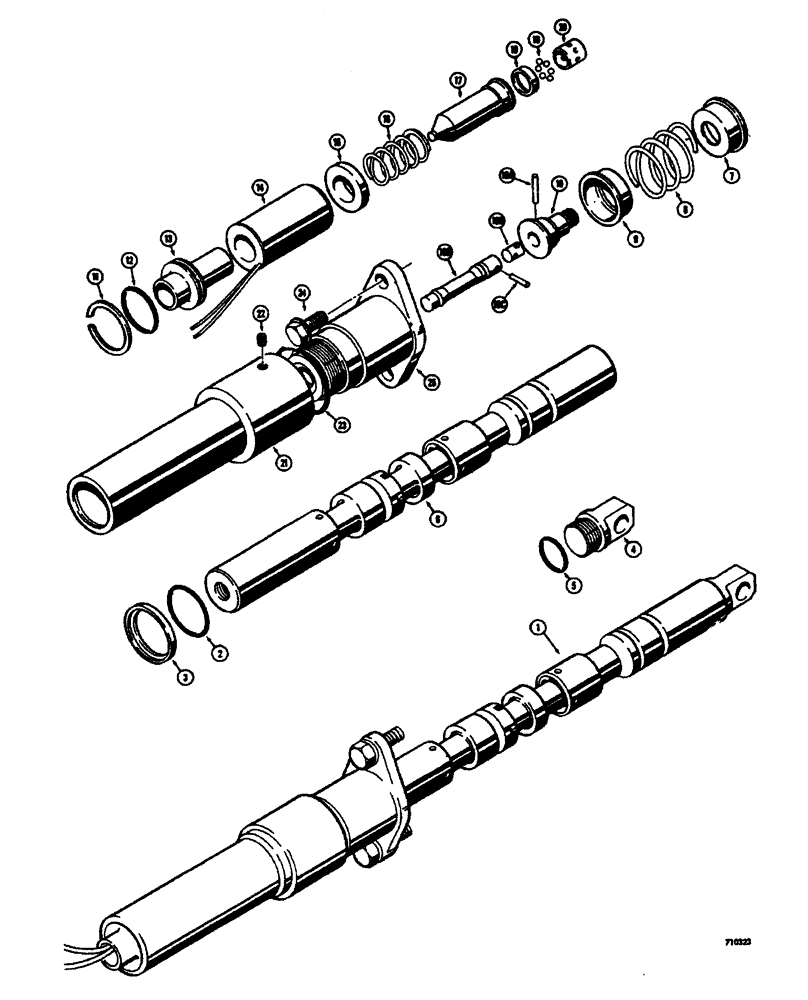

Запчасти Case W26B (440) - L46161 AND L46162 LOADER CONTROL VALVE LIFT SPOOLS (08) - HYDRAULICS

1

L33401

SPOOL

ASSEMBLY - loader lift, Includes: Ref. 2 - 25

1шт.

2

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

3

A15556

RING, SNAP

RETAINER - "O" ring

1шт.

L33317

KIT

SPOOL KIT - loader lift, Includes: Ref. 4 - 10D

1шт.

4

L31280

EYE - spool

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - spring, eye end

1шт.

8

A15544

SPRING - centering, plunger return

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - spring, solenoid end

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - spool

1шт.

10a

138-2038

PIN,1/8" x 1", Coiled

1шт.

10b

D33858

LINK

-, Serial Range: barrel-spool

1шт.

10c

138-2012

PIN,1/8" x 1/2", Coiled

1шт.

10d

L32742

BARREL - stud

1шт.

11

L30654

RING, SNAP

RING - plunger stop retaining

1шт.

12

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

13

L31307

STOP

- solenoid plunger

1шт.

14

L31316

COIL ASSY.

COIL - solenoid

1шт.

15

L31305

WASHER

- spring retaining

1шт.

16

L31310

VALVE SPRING

SPRING - detent

1шт.

17

L31311

SPARE PART

PLUNGER - solenoid

1шт.

18

L30647

CAM

- detent

1шт.

19

211-5

BALL,3/16" Dia

- detent, . 3/16" Dia

6шт.

20

L31324

RETAINER - ball

1шт.

21

L31313

HOUSING - solenoid

1шт.

22

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex. socket head (1/4" - 20 NC x 1/4")

2шт.

23

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, Seal

1шт.

24

193-508

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

RHMS - 5/16" - 18 NC x 1"

2шт.

25

L31312

HOUSING - stud and centering spring

1шт.
